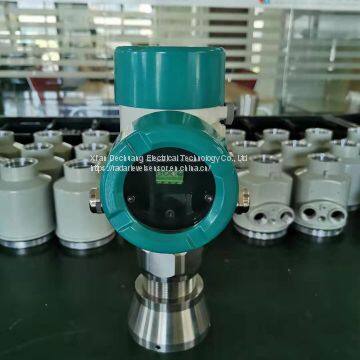

1.Description
120GHz FMCW radar level transmitter, especially be used in the high temperature & pressure, strong dust & multiple mixing environment, it can satisfy many applications for a large range measurement with high-precision requirements.
2.The main advantages:
1. Not be affected by atmospheric precipitation;
2. The ambient temperature is -60°C;
3. Being Installed on the outside of tank;
4. The antenna inside of the level transmitter is protected by fluoroplastic lens heating;
5. The measuring radiation is narrow, easy to install and measurement sensibility;
6. The accuracy of the level measurement can't be limited by the temperature of tank;
7. Evaporation and dust will not affect the measurement;
8. Boiling liquid level measurement;
9. Corrosive liquid level measurement, non-contact, non-corrosion, stable measurement;
3.Model Selections
United |
Code |
Parameter |
Anti-explosion |
P |
Standard (non-Ex) |
I |
Intrinsic safety (ExiaIICT6 Ga) |
|
D |
Intrinsic safety+Exd (Exd ia II CT6 Gb) |
|

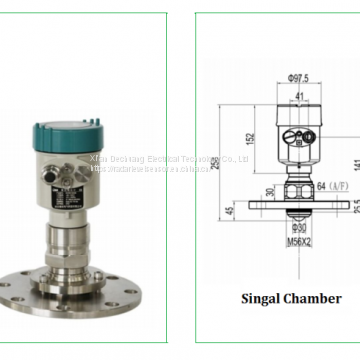

Process connection/Material |
M |
Screw thread M56x2 |
A |
Flange DN50/stainless steel 316 |
|
B |
Flange DN80/stainless steel 316 |
|
C |
Flange DN100/stainless steel 316 |
|
D |
Flange DN125/stainless steel 316 |
|
M |
Universal joint flange DN80/stainless steel 316 |
|
K |
Universal joint flange DN100/stainless steel 316 |
|
Y |
Special custom |
|
Antenna Type/ Material |
P1 |
Lens antenna |
P2 |
Lens antenna+radome |
|
P3 |
Lens antenna high temperature type |
|
P4 |
Lens antenna ferrule Type |
|
Y |
Special custom |
|
Seal/Process temperature |
V |
Viton/(-40~150)℃ |
K |
Kalrez/(-40~250)℃ |
|
K |
Kalrez/(-40~1000)℃ |
|
Electronic unit |
2 |
(4~20)mA/24V DC/HART two wire |
3 |
(4~20)mA/24V DC/HART four wire |
|
4 |
(4~20)mA/(85~265)V AC/HART four wire |
|
5 |
RS485/Modbus/(6-26)V DC |
|
6 |
Radio frequency 433M |
|
Housing/Protection grade |
L |
Aluminum / IP67 |
G |
Aluminum / IP67 Double chamber |
|
Cable entry |
M |
M20*1.5 |
N |
½ NPT |
|

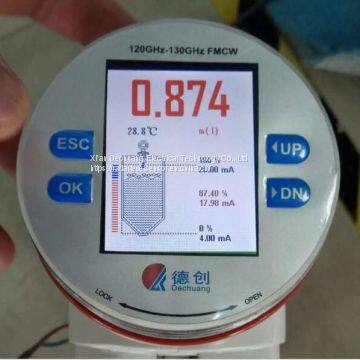

Live display/ Programming |
A |
With |
X |
Without |
|
Special custom |
Y |
Special custom |
