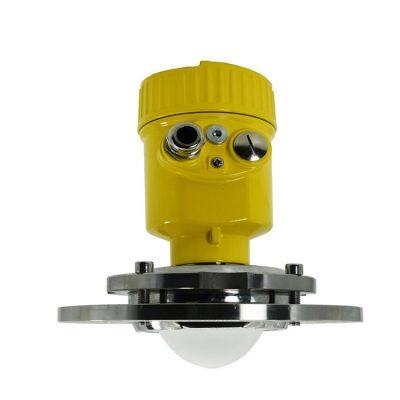

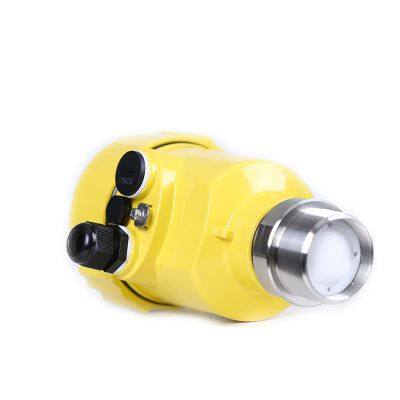

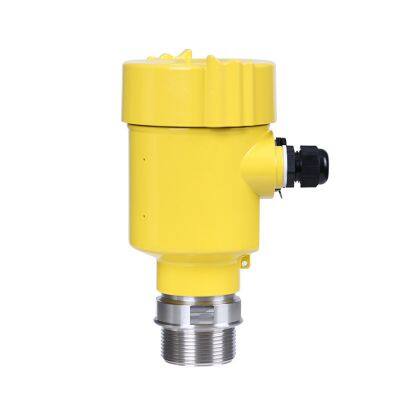

80GHz FMCW radar level meter is the typical non contact tanks level measuring tools which is the through-air radar level sensor with frequency modulation in the range of 77-81GHz.
Non contact level metre for tanks 80GHz radar level meter has the advantage in both short distance and large range measuring : for short distance range , blind zone within 10cm fundamentally battle the flaw of 26G radar level meter ; for the large range level measuring , 80GHz radar can reach a range of 120m ,very easy for measuring the super large storage tanks and silos .
80GHz FMCW radar meter allows the real-time online signal output of 4-20mA ,Hart ,and RS485/MODBUS. 80GHz non contact radar meter has good performance at measuring strong dust, steam,bubbles, stirring occasions than the conventional 26G open air radar level meters .
Name |
80GHz Radar Level Meter -Non Contact Level Meter for Tanks |
Model |
WERD-9X/WERD-9XS |
Medium |
Corrosive Liquids; Hygienic; Steam/bubble; Solids |
Antenna Type |
PTFE or Lens (42mm;46mm;76mm, lens size depends on range ) |
Measure Range |
0-120m (RD-9X) 0-10m (RD-9XS) |
Accuracy |
±1mm |
Response time |
0.6s |

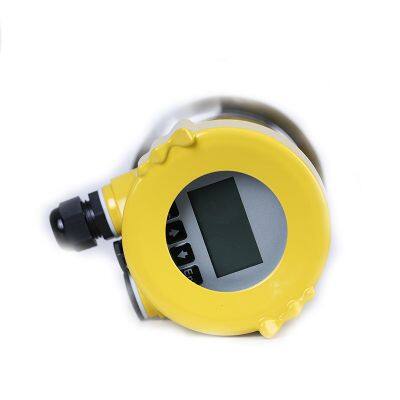

Display |
LCD display |
Beam angle |
6° |
Adjustment time |
0.6s (according to parameter setting) |
Microwave frequency |
77-81 GHz,5GHz FMCW bandwidth |
Output signal * |
4-20mA +HART, RS485 MODBUS -RTU |
Power supply * |
DC 6-24V, AC 220V/50Hz |
Material |
Shell: aluminum, process connection: 304 stainless steel, |
Pressure |
0.1-2MPa |
Storage temperature |
-40~+120℃ (-40~+212℉) |
Protection class |
IP68 |
Electrical connection |
2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT |
Installation * |
flange/1.5"thread |
Warranty |
12 months |
Rich experiences in both designing and production of 26G & 80G radar level meters, you can rely on us anytime for the professional solutions and technical guidance !
