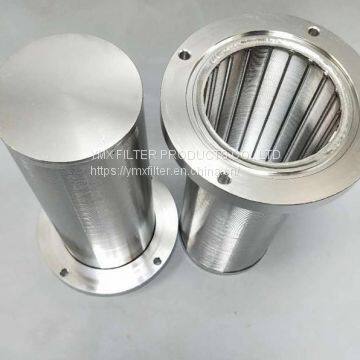

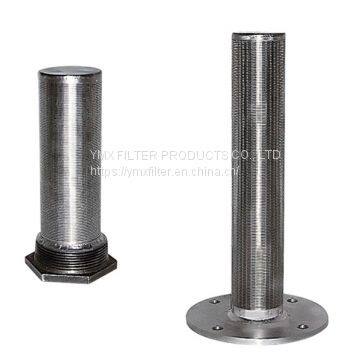

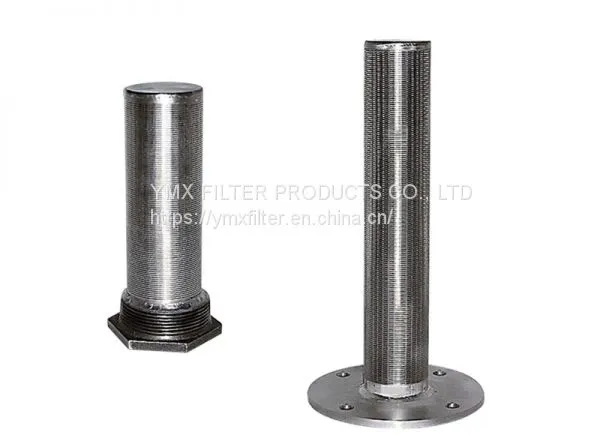

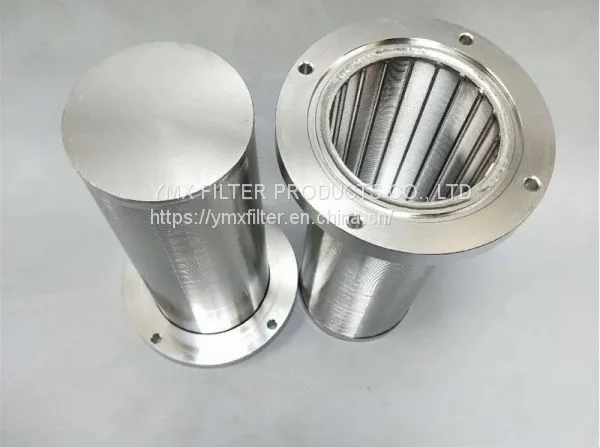

Johnson Screen Resin Trap Strainer Wedge Wire Resin Traps Wedge Wire Screen
PRODUCT FEATURES
Johnson screen pipe resin trap strainer used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
Johnson screen pipe resin trap strainers are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.
Wedge Wire Screen PARAMETER
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
|||||
OD Range |
25mm-2000mm |
|||||
ID Range |
19mm-1981mm |
|||||
Length Range |
Up to 6000 mm |
|||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
|||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
Support Rod |
1.5x2.52x3 |
1.5x2.52x3 |
1.5x2.52x3 |
1.8*2.52x3 |
3*5 |
3*5 |
Connection |
Flange and thread |
|||||
End Type |
Closed plate |
|||||
Note |
Customized According To Special Requirement |
|||||
YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products. For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.
If you are interested in custom wire screen, you can click here to browse our website.
/
