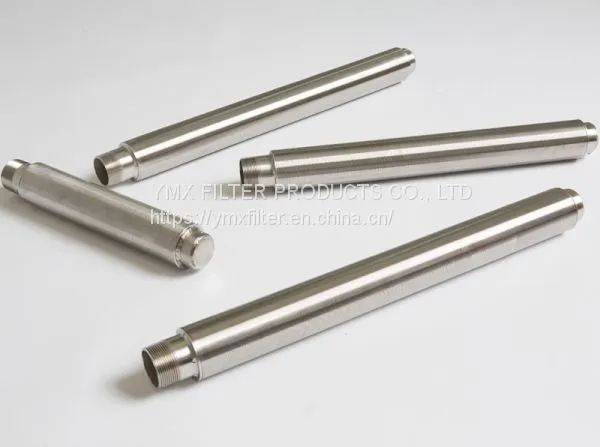

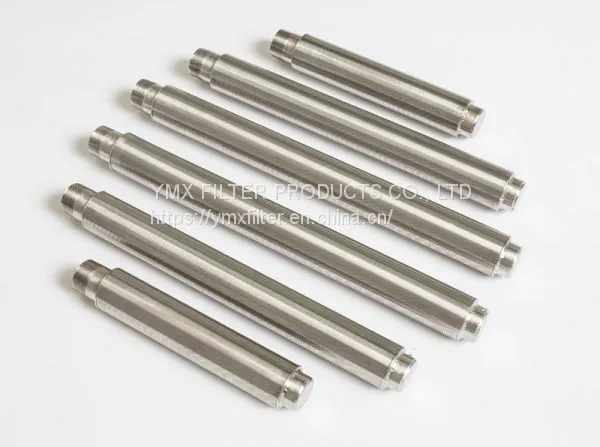

Header Laterals Header & Hub Laterals Wedge Wire Screen
PRODUCT FEATURES
Available as both Header Lateral and Hub Lateral assemblies, Federal Screen wedge wire screen laterals and pipe based laterals can be connected to distributor headers and spider hubs by standard NPT thread, fabricated flange, ANSI connections, and can be offered as fully welded assemblies.
STAINLESS STEEL HEADER LaTERALS
Category: Header laterals
Material: Stainless steel 304, 316, 316L, galvanized steel, etc.
Properties: Wedge Wire Screen
Application: Filtration
Specifications:
Header pipe diameters: from 50mm up to 600mm
Slot sizes: 0.1mm up to 15mm
Length: 50mm up to 6000mm
Connection ways: Flange type or screwed threaded type
custom wire screen PARAMETER
Material |
SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207,Duplex, Hastelloy, etc |
||
Normal Lateral Tube QTY (PCS) |
4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. |
||
Lateral OD Range (mm) |
25 to 80mm, customized |
||
Normal Hub (mm) |
108, 133, 219, Customized |
||
Hub and lateral connector types |
Thread, Flange |
||
Diameter Range(mm) |
According to the tank diameter. (Usually 200mm shorter than tank diameter) |
||
Slot Range(mm) |
Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. |
||
Wedge Wire(mm) |
1x2 |
1.5x2 |
2x3 |
Support Rod (mm) |
1.5x2.52x3 |
1.8x2.52x3 |
2x32x4 |
Note |
Customized According To Requirement |
||
YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products. For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.
If you are interested in custom wire screen, you can click here to browse our website.
/
