Laser pulley alignment tool(PA-1)
Features
1. Ease to use without any training. Efficient One-man operation .
2.Reduces down time and energy costs.
3.Reduces vibration and noise.
4. Prolongs belt and pulley life.

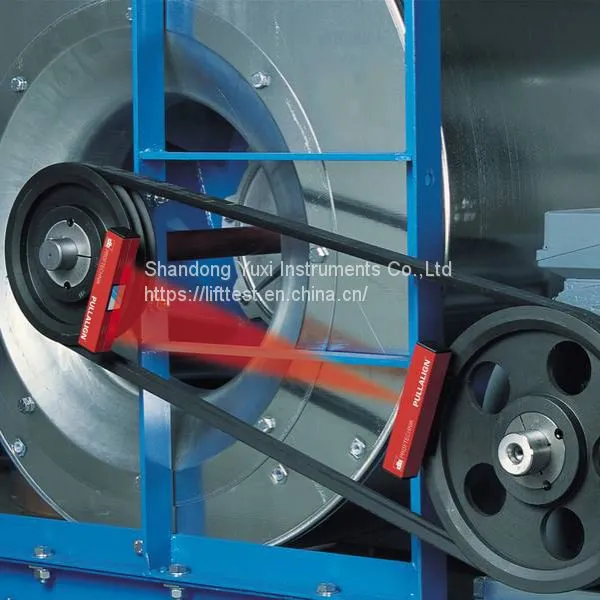

5. This tool is magnetically mounted on the pulley and check the alignment of various pulleys.
Show offset, vertical and horizontal angle simultaneously
Technical Data
Laser | |
Accuracy |
|
| |
Laser wavelength |
650 nm |
Laser line width |
1mm @ 2 m |
Output power |
|
Measuring distance |
10 m |
Controls |
|
Mounting method |
Strong magnets |
Operating time |
10 hours |
Operating temperature |
-20-40℃ |
Storage temperature |
-30-60℃ |
Battery type |
2 AAA batteries |
Weight |
|
Dimension |
145*40*40mm |
Housing |
Aluminium alloy,anodized |
Reflector | |
Accuracy |
|
| |
Reflector size |
41mm*27mm |
Mounting method |
|
Weight |
500g |
Dimension |
145*40*40mm |
Housing |
Aluminium alloy,anodized |

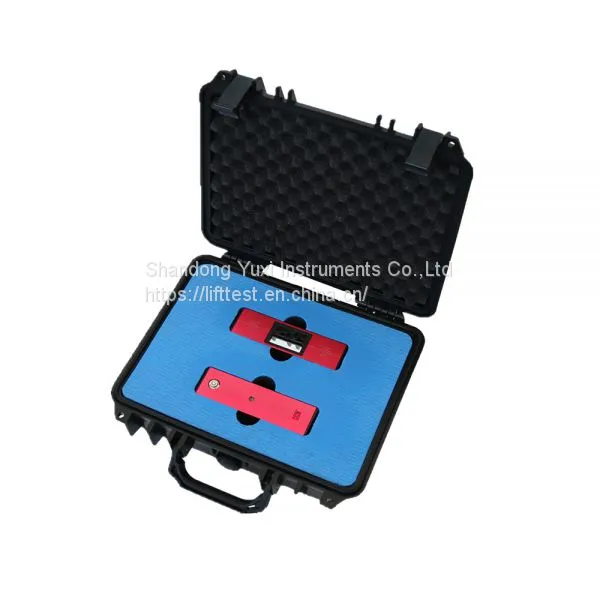

Carrying Case | |
Material |
Black,high density polyethylene |
Insert |
Die-cut foam |
Dimension |
330*280*120 mm |
Total weight |
2.5kg |
