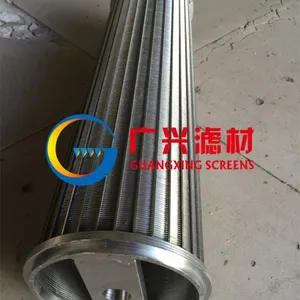

V Profile Wedge Wire Basket Strainers
Wedge wire screen with V profile is engineered in various forms of filtering elements or cartridges in flow control. The mostly found shapes in uses are stainless steel wedge wire panels, cylinders, baskets, tubes and curved sieve bend in arc forms. Mainly serve mine, coal development, water treatment and well screening industries.
hengshui guangxing wedge wire filter strainer baskets are commonly used in existing strainer or filter cartridges for various flow control.
Features and Benefits of V Profile Wedge Wire Compared with Perforated Filter Basket and Woven Mesh Baskets Elements:
The welded wedge wire screen baskets provide more sufficient opening than the perforated metal baskets. It is stronger and can bear heavy loading pressure than the woven mesh filter baskets. The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings. It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.
Basket Element or Strainers Case Study:
50 Micron Basket filter element:
The materials is stainless steel AISI 316
The diameter 8 " x 900mm ,
Opening 50 microns (0.05 mm) , wedge wire V-profile, for flow from inside to outside .
25 Micron Basket element in stainless steel AISI 316 , diameter 8 " x 900mm ,
Opening 25 microns (0.025 mm) , wedge wire V-profile or similar flow from inside to outside.
Basket element in stainless steel AISI 316 , diameter 12 " x 900mm ,
Opening 50 microns (0.05 mm), wedge wire V-profile or similar flow from inside to outside .
Basket element in stainless steel AISI 316 , diameter 12 " x 900mm ,
Opening 25 microns (0.025 mm) , wedge wire V-profile or similar flow from inside to outside .
