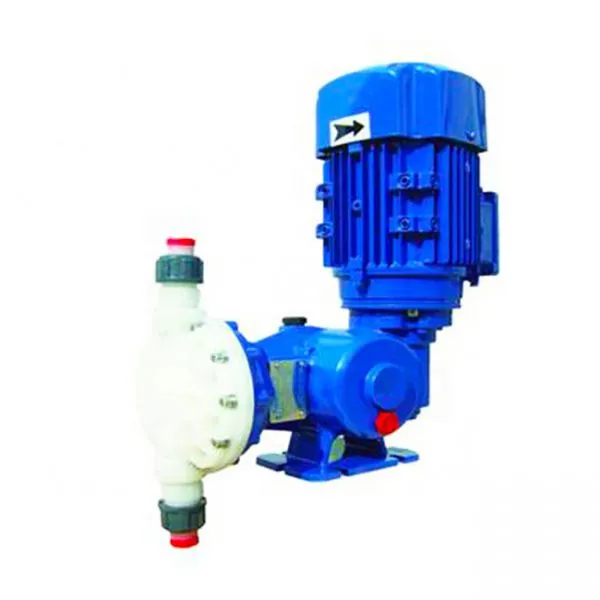

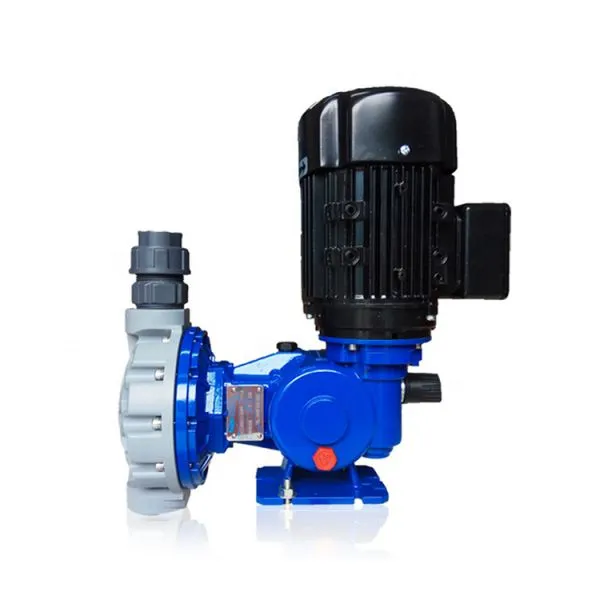

Acid Alkali Ammoniae OEM Liquid Dosing Pump
US$ 328 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
seko
Place of Origin:
China
Model Number:
acid alkali ammoniae OEM liquid dosing pump
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Small SEKO Mechanical Chemical Dosing PumpsUS$ 328 - 800MOQ: 1 Set -
Mechanical-return Diaphragm Dosing PumpUS$ 298 - 600MOQ: 1 Set
-
Mechanical-return Diaphragm Dosing PumpUS$ 298 - 600MOQ: 1 Set
-
Italy SEKO aquarium RO System Used metering pumps automatic ChemicalUS$ 298 - 600MOQ: 1 Set
-
For High-accuracy Chemical Dosing Solenoid Driven Pumps in Water-treatmentUS$ 150 - 300MOQ: 1 Set
Brand Name
seko
Place of Origin
China
Model Number
acid alkali ammoniae OEM liquid dosing pump
Product Description
The MS1 series offers multiple combinations of pump head and motor power that allows operators the chance to select the optimal combination appropriate to the specific application in hand.
The MS1 pumps have a spring return mechanism in a single aluminium housing. Each model works with 3 different stroke rates. Stroke lengths can be set automatically or manually using the AKTUA Kit which uses a 4 - 20 mA signal.
In addition, Spring MS1 pumps can be supplied with a single or three-phase electric motor with IP55 protection. The MS1 12 VDC range achieves flow rates between 23 and 620 l/h at up to 16 bar.
| Liquid material | Diaphragm diameter mm |
A mm |
B mm |
C mm |
T mm |
Three phase | Single phase | ||||||||
| Power KW |
Motor Size |
D mm |
E mm |
F mm |
Power KW |
Motor Size |
D mm |
E mm |
F mm |
||||||
| SS316L(21) | 64 | 192 | 144 | 1/4" f | 98 | 0.18 | 63B14 | 333 | 321 | 146 | 0.25 | 71B14 | 371 | 343 | 155 |
| SS316L(21) | 94 | 172 | 146 | 3/8" f | 118 | 0.25 | 71B14 | 371 | 335 | 165 | 0.37 | 71B14 | 371 | 346 | 165 |
| SS316L(21) | 108 | 213 | 148 | 3/8" f | 138 | 0.37 | 71B14 | 371 | 337 | 175 | 0.55 | 80B14 | 396 | 379 | 184 |
| SS316L(21) | 138 | 261 | 158 | 3/4” f-1" f | 168 | 0.37 | 71B14 | 371 | 352 | 190 | 0.55 | 80B14 | 396 | 394 | 199 |
| SS316L(21) | 165 | 297 | 165 | 1" f | 188 | 0.37 | 71B14 | 371 | 372 | 200 | 0.55 | 80B14 | 396 | 414 | 209 |
| PVC(31) PVDF(41) |
64 | 239 | 149 | 1/4" f | 98 | 0.18 | 63B14 | 333 | 326 | 146 | 0.25 | 71B14 | 371 | 348 | 155 |
| 94 | 242 | 144 | 3/8" f | 124 | 0.25 | 71B14 | 371 | 340 | 168 | 0.37 | 71B14 | 371 | 351 | 168 | |
| 108 | 250 | 147 | 3/8" f | 142 | 0.37 | 71B14 | 371 | 343 | 177 | 0.55 | 80B14 | 396 | 385 | 186 | |
| 138 | 347 | 159 | 3/4” f-1" f | 166 | 0.37 | 71B14 | 371 | 364 | 189 | 0.55 | 80B14 | 396 | 406 | 198 | |
| PVC(31),PVDF(41) | 165 | 375 | 172 | 1" f | 195 | 0.37 | 71B14 | 371 | 372 | 214 | 0.55 | 80B14 | 396 | 414 | 223 |
| M | S1 | A | 064 | B | 31 | A4/CS/CX | 080 |
| M | Diaphragm pump | ||||||
| S1 | Drive type | ||||||
| A | Stroke length | ||||||
| 64 | Diaphragm diameter | ||||||
| B | Stroke frequency | ||||||
| 31 | Pump head material | ||||||
| A4/CS/CX | Motor | ||||||
| 080 | Option | ||||||
| Selection table | |||||||||||
| Model | Diaphragm diameter | Stroke length | Stroke frequency stroke / minute |
Capacity L/h |
Max Pressure 316L/PVC/PVDF bar |
Connection method |
Power KW |
Gross weight kg |
Carton size L × W× H mm |
||
| MS1A064A | 64 | 2 | 58 | 5.5 | 10 | 1/4 GF | 1/4 GF DN15 |
0.18 | 15 | 13 | 430*280*530 |
| MS1A064B | 64 | 2 | 78 | 8 | 10 | 1/4 GF | 1/4 GF DN15 |
0.18 | 15 | 13 | 430*280*530 |
| MS1A064C | 64 | 2 | 116 | 11 | 10 | 1/4 GF | 1/4 GF DN15 |
0.18 | 15 | 13 | 430*280*530 |
| MS1A094A | 94 | 2 | 58 | 20 | 10 | 3/8 GF | 3/8 GF DN15 |
0.25 | 16 | 14 | 430*280*530 |
| MS1A094B | 94 | 2 | 78 | 26 | 10 | 3/8 GF | 3/8 GF DN15 |
0.25 | 16 | 14 | 430*280*530 |
| MS1A094C | 94 | 2 | 116 | 40 | 10 | 3/8 GF | 3/8 GF DN15 |
0.25 | 16 | 14 | 430*280*530 |
| MS1B108A | 108 | 4 | 58 | 60 | 10 | 3/8 GF | 3/8 GF DN15 |
0.37 | 19 | 16 | 430*280*530 |
| MS1B108B | 108 | 4 | 78 | 80 | 10 | 3/8 GF | 3/8 GF DN15 |
0.37 | 19 | 16 | 430*280*530 |
| MS1B108C | 108 | 4 | 116 | 120 | 10 | 3/8 GF | 3/8 GF DN15 |
0.37 | 19 | 16 | 430*280*530 |
| MS1C138A | 138 | 6 | 58 | 155 | 7 | 3/4 GF | 3/4 GF | 0.37 | 23 | 18 | 590*400*550 |
| MS1C138B | 138 | 6 | 78 | 220 | 7 | 3/4 GF | 3/4 GF | 0.37 | 23 | 18 | 590*400*550 |
| MS1C138C | 138 | 6 | 116 | 310 | 7 | 1" GF | 1" GF | 0.37 | 23 | 18 | 590*400*550 |
| MS1C165A | 165 | 6 | 58 | 230 | 5 | 1" GF | 1" GF | 0.37 | 27 | 21 | 590*400*550 |
| MS1C165B | 165 | 6 | 78 | 330 | 5 | 1" GF | 1" GF | 0.37 | 27 | 21 | 590*400*550 |
| MS1C165C | 165 | 6 | 116 | 530 | 4 | 1" GF | 1" GF | 0.37 | 27 | 21 | 590*400*550 |
| MS1C138Q | 138 | 6 | 232 | 750 | 4.5 | 1" GF | 1" GF | 0.55 | 25 | 20 | 590*400*550 |
| MS1C165Q | 165 | 6 | 232 | 1200 | 2 | 1" GF | 1" GF | 0.55 | 29 | 23 | 590*400*550 |
Application
IndustryPotable Water TreatmentWaste Water Treatment
AgricultureCommercial LaundryFood & BeveragePower GenerationWater Treatment
Standard accessories
