Mechanical-return Diaphragm Dosing Pump

Mechanical-return Diaphragm Dosing Pump thumbnail-1
Mechanical-return Diaphragm Dosing Pump thumbnail-2
Mechanical-return Diaphragm Dosing Pump thumbnail-3
Mechanical-return Diaphragm Dosing Pump thumbnail-4
Mechanical-return Diaphragm Dosing Pump thumbnail-5
Mechanical-return Diaphragm Dosing Pump photo-1

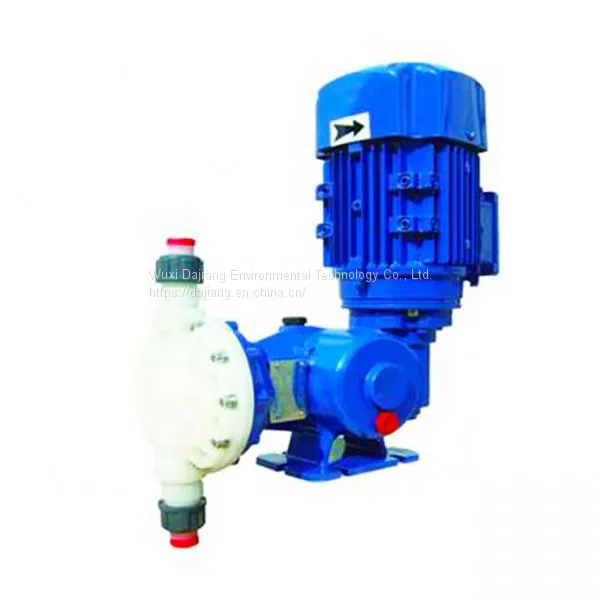

Mechanical-return Diaphragm Dosing Pump photo-2

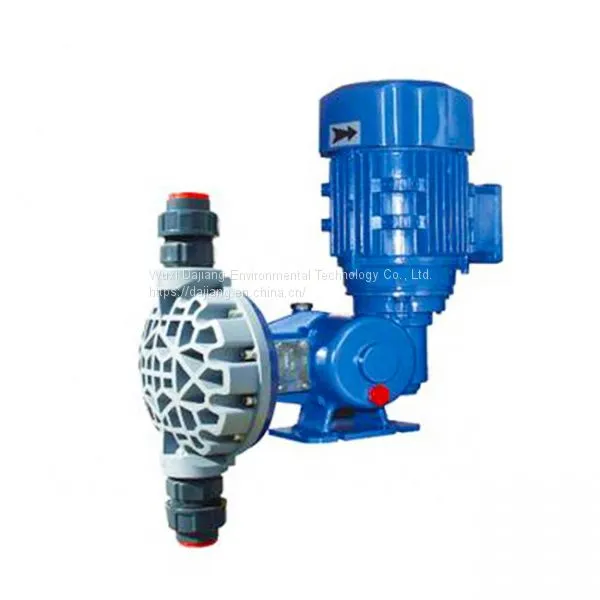

Mechanical-return Diaphragm Dosing Pump photo-3
Mechanical-return Diaphragm Dosing Pump photo-4

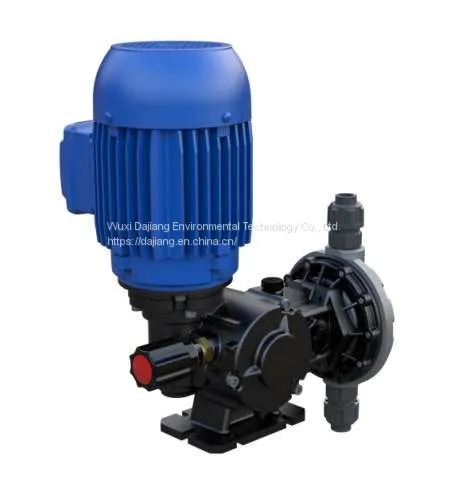

Mechanical-return Diaphragm Dosing Pump photo-5
US$ 298 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SEKO
Place of Origin:
China
Model Number:
Seko MS1 Series Motor Driven Diaphragm Metering Pumps
Contact Supplier Request Quote Chat Now
Wuxi Dajiang Environmental Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SEKO
Place of Origin China
Model Number Seko MS1 Series Motor Driven Diaphragm Metering Pumps
Application Metering
Fuel Other
Power Electric
Usage Water
Theory Axial Flow Pump
Standard or Nonstandard Standard
Structure Diaphragm Pump
Pressure Low Pressure

The MS1 series offers multiple combinations of pump head and motor power that allows operators the chance to select the optimal combination appropriate to the specific application in hand.

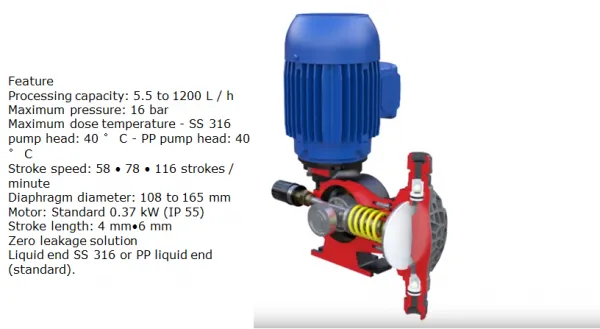

The MS1 pumps have a spring return mechanism in a single aluminium housing. Each model works with 3 different stroke rates. Stroke lengths can be set automatically or manually using the AKTUA Kit which uses a 4 - 20 mA signal.

In addition, Spring MS1 pumps can be supplied with a single or three-phase electric motor with IP55 protection. The MS1 12 VDC range achieves flow rates between 23 and 620 l/h at up to 16 bar.

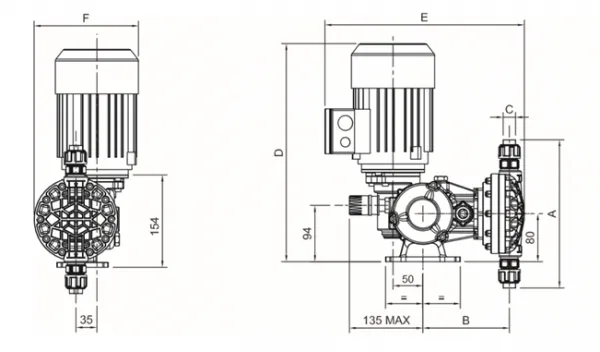

Liquid material Diaphragm diameter
    mm		 A
    mm		 B
    mm		 C
    mm		 T
    mm		 Three phase Single phase








Power
    KW		 Motor
    Size		 D
    mm		 E
    mm		 F
    mm		 Power
    KW		 Motor
    Size		 D
    mm		 E
    mm		 F
    mm








SS316L(21) 64 192 144 1/4" f 98 0.18 63B14 333 321 146 0.25 71B14 371 343 155








SS316L(21) 94 172 146 3/8" f 118 0.25 71B14 371 335 165 0.37 71B14 371 346 165








SS316L(21) 108 213 148 3/8" f 138 0.37 71B14 371 337 175 0.55 80B14 396 379 184








SS316L(21) 138 261 158 3/4” f-1" f 168 0.37 71B14 371 352 190 0.55 80B14 396 394 199








SS316L(21) 165 297 165 1" f 188 0.37 71B14 371 372 200 0.55 80B14 396 414 209








PVC(31)
    PVDF(41)		 64 239 149 1/4" f 98 0.18 63B14 333 326 146 0.25 71B14 371 348 155








94 242 144 3/8" f 124 0.25 71B14 371 340 168 0.37 71B14 371 351 168








108 250 147 3/8" f 142 0.37 71B14 371 343 177 0.55 80B14 396 385 186








138 347 159 3/4” f-1" f 166 0.37 71B14 371 364 189 0.55 80B14 396 406 198








PVC(31),PVDF(41) 165 375 172 1" f 195 0.37 71B14 371 372 214 0.55 80B14 396 414 223









M S1 A 064 B 31 A4/CS/CX 080

M Diaphragm pump
S1 Drive type
A Stroke length
64 Diaphragm diameter
B Stroke frequency
31 Pump head material
A4/CS/CX Motor
080 Option
Selection table
Model Diaphragm diameter Stroke length Stroke frequency
    stroke / minute		 Capacity
    L/h		 Max Pressure
    316L/PVC/PVDF
    bar		 Connection   method
   		 Power
    KW		 Gross weight
    kg		 Carton size
    L × W× H mm
MS1A064A 64 2 58 5.5 10 1/4 GF 1/4 GF
    DN15		 0.18 15 13 430*280*530
MS1A064B 64 2 78 8 10 1/4 GF 1/4 GF
    DN15		 0.18 15 13 430*280*530
MS1A064C 64 2 116 11 10 1/4 GF 1/4 GF
    DN15		 0.18 15 13 430*280*530












MS1A094A 94 2 58 20 10 3/8 GF 3/8 GF
    DN15		 0.25 16 14 430*280*530
MS1A094B 94 2 78 26 10 3/8 GF 3/8 GF
    DN15		 0.25 16 14 430*280*530
MS1A094C 94 2 116 40 10 3/8 GF 3/8 GF
    DN15		 0.25 16 14 430*280*530












MS1B108A 108 4 58 60 10 3/8 GF 3/8 GF
    DN15		 0.37 19 16 430*280*530
MS1B108B 108 4 78 80 10 3/8 GF 3/8 GF
    DN15		 0.37 19 16 430*280*530
MS1B108C 108 4 116 120 10 3/8 GF 3/8 GF
    DN15		 0.37 19 16 430*280*530












MS1C138A 138 6 58 155 7 3/4 GF 3/4 GF 0.37 23 18 590*400*550
MS1C138B 138 6 78 220 7 3/4 GF 3/4 GF 0.37 23 18 590*400*550
MS1C138C 138 6 116 310 7 1" GF 1" GF 0.37 23 18 590*400*550












MS1C165A 165 6 58 230 5 1" GF 1" GF 0.37 27 21 590*400*550
MS1C165B 165 6 78 330 5 1" GF 1" GF 0.37 27 21 590*400*550
MS1C165C 165 6 116 530 4 1" GF 1" GF 0.37 27 21 590*400*550
MS1C138Q 138 6 232 750 4.5 1" GF 1" GF 0.55 25 20 590*400*550
MS1C165Q 165 6 232 1200 2 1" GF 1" GF 0.55 29 23 590*400*550

Application

IndustryPotable Water TreatmentWaste Water Treatment

AgricultureCommercial LaundryFood & BeveragePower GenerationWater Treatment


Product Tags: diaphragm dosing pump , Mechanical diaphragm dosing pump , dosing pump , SEKO Pump , Seko Chemical Dosing Pump , MS1 Series Mechanical Diaphragm Pump , Spring Series MS1 piston metering pumps , Chemical Dosing Pump , MS1 piston metering pumps
