Textile Wastewater Sand Filter Treaement
US$ 5000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Quartz sand filter
Place of Origin:
China
Model Number:
DJ-SF
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days
Related Products
-
Petroleum Chemical Industry Wastewater Treaement Sand FilterUS$ 5000 - 8000MOQ: 1 Set -
Metallurgy Electroplating Wastewater Treaement Sand FilterUS$ 5000 - 8000MOQ: 1 Set
-
Petroleum Chemical Industry Wastewater Treaement Sand FilterUS$ 5000 - 8000MOQ: 1 Set
-
Petroleum Chemical Industry Wastewater Treaement Sand FilterUS$ 5000 - 8000MOQ: 1 Set
-
Metallurgy Electroplating Wastewater Treaement Sand FilterUS$ 5000 - 8000MOQ: 1 Set
Brand Name
Quartz sand filter
Place of Origin
China
Model Number
DJ-SF
Quartz sand filter
Quartz sand filter is a pressure filter.It can be used quartz sand as the filter media. When the influent water flows through the filter layer from top to bottom, the suspended solids and viscose particles colloids, sediment and rust in water. The pump is pressurized to pass the raw water through the filter medium to remove the suspended matter in the water,Thereby reducing the turbidity of the water.
Quartz sand filtration is an important unit used in advanced wastewater treatment, wastewater reuse and feedwater treatment. It is function to remove more pollutants that have already flocculated in the water. It achieves the purpose of purifying water through the interception, sedimentation and adsorption of the filter material.

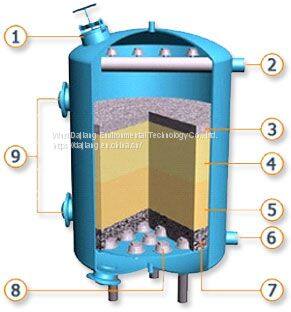

Structural component
| 1. Upper Service Hole | ||
| 2. Filter Inlet | ||
| 3. Anthracite Layer | ||
| 4. Fine Sand Layer | ||
| 5. Coarse Sand Layer | ||
| 6. Filter Outlet | ||
| 7. Gravel Support Layer | ||
| 8. Filter Element | ||
| 9. Side Service Hole |
Application
| 1. Used for industrial water, domestic water and municipal water supply systems that require effluent turbidity ≤ 5mg / L to meet drinking water quality standards; | ||||||||||||||
| 2. Removal of suspended solids and solids in industrial wastewater; | ||||||||||||||
| 3. It can be used as a pretreatment equipment in the softening and desalination system of ion exchange method, and a coarse filtration equipment for industrial water supply with low water quality requirements; |
| Application Type | Removed by use of Sand filter | |||||||||||||
| Drinking water | Iron, Manganese, Arsenate and some priority chemicals | |||||||||||||
| Municipal Wastewater | Phosphorous & Bacteria, BOD, COD & TOC | |||||||||||||
| Industrial Process Water | Organic pollutants & oils, TSS, VSS & Particles | |||||||||||||
| Industrial Wastewater | Colors and fine fibers, Residual mineral oils | |||||||||||||
Recommended Grades and Arrangement from top to bottom
| Grade | Size (mm) | Commercial Purification | High Purification | Ultra Purification | ||||||||||
| Grade 0 | 0.5-2mm | 10% | 20% | 60% | ||||||||||
| Grade 1 | 2-4mm | 60% | 50% | 20% | ||||||||||
| Grade 2 | 4-8mm | 15% | 15% | 10% | ||||||||||
| Grade 3 | 8-16mm | 15% | 15% | 10% | ||||||||||
Selection table
| Model | Filter diameter | Height | inlet-outlet | Filtration area | capacity | |||||||||
| mm | mm | mm | m² | m³/hour | ||||||||||
| DJ-SF-500 | 500 | 816 | DN40 | 0.2 | 6~10 | |||||||||
| DJ-SF-600 | 600 | 874 | 40 | 0.28 | 8~14 | |||||||||
| DJ-SF-700 | 700 | 900 | 40 | 0.38 | 12~19 | |||||||||
| DJ-SF-800 | 800 | 960 | DN50 | 0.5 | 15-25 | |||||||||
| DJ-SF-1000 | 1000 | 1200 | DN50 | 0.79 | 23-39 | |||||||||
| DJ-SF-1200 | 1200 | 1400 | DN80 | 1.13 | 33-55 | |||||||||
| DJ-SF-1400 | 1400 | 1600 | DN100 | 1.54 | 45-75 | |||||||||
| DJ-SF-1600 | 1600 | 1800 | DN100 | 2.01 | 60-100 | |||||||||
| DJ-SF-1800 | 1800 | 1950 | DN150 | 2.54 | 75-125 | |||||||||
| DJ-SF-2000 | 2000 | 2150 | DN150 | 3.14 | 95-155 | |||||||||
| DJ-SF-2200 | 2200 | 2250 | DN150 | 3.8 | 115-190 | |||||||||
| DJ-SF-2400 | 2400 | 2100 | DN150 | 4.52 | 130-210 | |||||||||
| DJ-SF-2600 | 2600 | 2400 | DN150 | 5.3 | 145-225 | |||||||||
| DJ-SF-2800 | 2800 | 2500 | DN200 | 6.15 | 155-240 | |||||||||
| DJ-SF-3000 | 3000 | 2600 | DN200 | 7 | 170-255 | |||||||||
| DJ-SF-3200 | 3200 | 2800 | DN250 | 8.15 | 270-320 | |||||||||
