Chlorate/ Perchlorate Electrolyzer/ Electrolysing Cell/ Electrobath

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Diameter:

as agreed

Length:

as agreed

Jiangsu Yianteng Special Anode Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Diameter as agreed

Length as agreed

Application as agreed

Flexural Strength (N/㎡) as agreed

Thermal Expansion as agreed

Apparent Density (g/cm³ ) as agreed

Resistance (μΩ.m) as agreed

Chlorate Electrolyzer

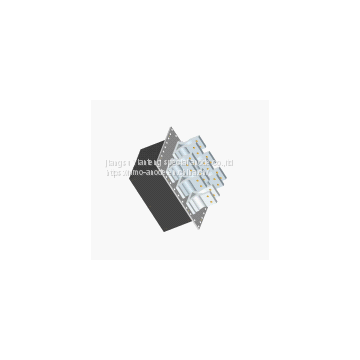

Mono-polar Chlorate Electrolyzer

Model	FG-II20	FG-II25	FG-II30	FG-II60	FG-II80
Electrolytic Area	10M2	12.5M2	15M2	30M2	40M2
Anode Material	MMO/TA1	MMO/TA1	MMO/TA1	MMO/TA1	MMO/TA1
Cathode Material	Activated cathode,CS
Design Current Density	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2
Inter-electrode Distance	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm
Anode Coating	Quintuple Nobel Metal Nano-structured Coating
Service Life	>6years
Oxygen Content
Current Efficiency	>93%	>93%	>93%	>93%	>93%
Shell Material	Carbon Steel,Titanium
Chlorates	90MT/year	110MT/year	130MT/year	270MT/year	360MT/year
DC Power Consumption
Working Temperature	80℃~85℃	80℃~85℃	80℃~85℃	80℃~85℃	80℃~85℃

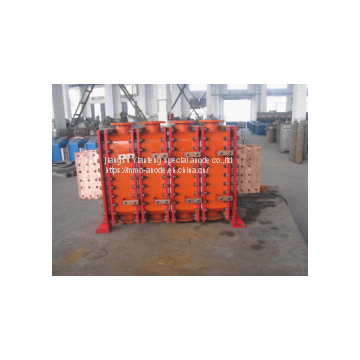

Bipolar Chlorate Electrolyzer

Model	FG-II40	FG-II60	FG-II80	FG-II120	FG-II160
Electrolytic Area	40M2	60M2	80M2	120M2	160M2
Anode Material	MMO/TA1	MMO/TA1	MMO/TA1	MMO/TA1	MMO/TA1
Cathode Material	Anti-bubbling Cathode
Design Current Density	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2	2000-2500A/M2
Inter-electrode Distance	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm
Anode Coating	Quintuple Nobel Metal Nano-structured Coating
Anode Service Life	>6years
Oxygen Content
Current Efficiency	>93%	>93%	>93%	>93%	>93%
Shell Material	Carbon Steel,Titanium
Conductive End Plate	Three-layer compounded conductive material
Chlorates Output	360MT/year	540MT/year	720MT/year	1100MT/year	1450MT/year
DC Power Consumption

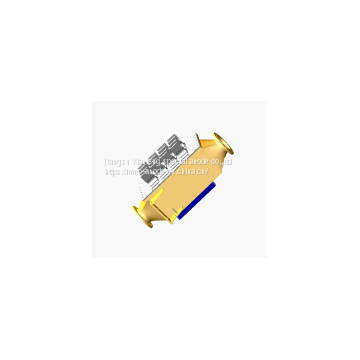

High Current Density and Energy-Saving Chlorate Electrolyzer

Model	FG-II15	FG-II25	FG-II30
Electrolytic Area	15M2	25M2	30M2
Anode Material	MMO/TA1	MMO/TA1	MMO/TA1
Cathode Material	Anti-bubbling Cathode
Design Current Density	2500-3000A/M2	2500-3000A/M2	2500-3000A/M2
Inter-electrode Distance	2.5mm~3mm	2.5mm~3mm	2.5mm~3mm
Anode Coating	Noble Metal Nano-structured Caoating
Anode Service Life	>8years
Oxygen Content
Current Efficiency	>94%	>94%	>94%
Shell Material	Titanium
Conductive End Plate	Energy-saving Composite Conductive Plates
Chlorate Output	180MT/year	300MT/year	360MT/year
DC Power Consumption
