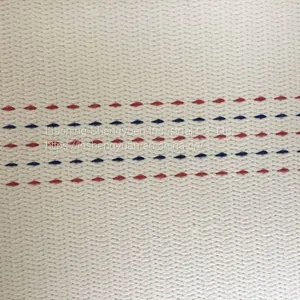

Help CenterCorrugator Conveyor Belt High Speed Woven Conveyor Belt 100% Kevlar Fabric
Related Products
-
High-speed Corrugator Belt With Low Noise Conveyor Belt for Corrugated PaperboardNegotiableMOQ: 1 Square Meter -
Mid-speed Corrugator Belt Conveyor Belt for Corrugated Board Packing IndustryNegotiableMOQ: 1 Square Meter
-
High-speed Corrugator Belt With Kevlar Low Noise Paperpacking Industry Conveyor BeltNegotiableMOQ: 1 Square Meter
-
Mid-speed Traction Belt Corrugator Belt High Temperature Resistant Conveyor BeltNegotiableMOQ: 1 Square Meter
-
Pneumatic Conveying Belt Powder Conveying Conveyor BeltNegotiableMOQ: 1 Square Meter
Enhanced High-speed Corrugator Belt with Low Noise
Model |
JWSD-9G |
Thickness |
(9±0.3)mm |
Width |
(1600-3600)mm |
Heat-resistance |
240℃ |
Tensile strength |
75Mpa |
Coefficient of friction |
≥0.40μ |
Weight per unit |
(7.5±0.3)kg/㎡ |
Air-permeability 40mm water Column |
2.2m³/㎡min |
Running meters(10000m) |
6500 |
Introduction
Shengyuan weaving belts f single weft and multi-layer warps are widely used in the corrugated board production lines. Our products are:
1.Enhanced high-speed corrugator belt with low noise JWSD: Suitable for average linear speed 300m/min
2.High-speed corrugator belt with low noise WSD-9G: Suitable for average linear speed 200m/min
3.Mid-speed corrugator belt WSD-10Z: Suitable for average linear speed 130m/min
4.High-speed corrugator belt with Kevlar(low noise) KWSD-95G: Applicable to the corrugating equipment which cardboard width is changed often
5.Traction belt/Stack belt QYD/WDD: Belt width (250-2000)mm
6.Pneumatic conveying belt: Belt width (200-3000)mm
Manufacture various kinds of industrial belts according to customers’ requirements.
Products Features
1.Tensile strength: warp direction (63-75)Mpa in dry mode
2.Heat resistance: raw materials are polyester synthetic fibers, softening point ≥260℃
3.Moisture absorption: quick absorption and emission of heat, therefore cardboard can be quickly dried
4.Air-permeability: up to 2.2m³/㎡ min, under 40mm water column pressure, through CCEP test

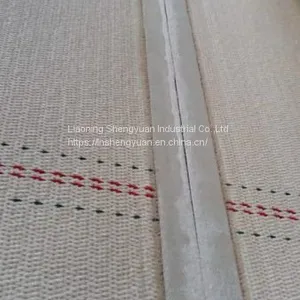

5.Seams: belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat-resistance, fastness and non-marking

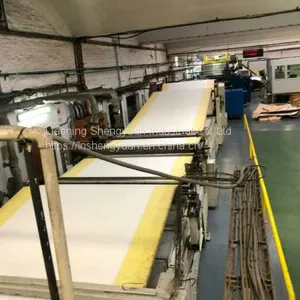

6.Suitability: suitable for all types of corrugators, various cardboards and some particular operation mode
7.Geometrical dimension: steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard
8.Service life: as long as the same products imported abroad
For more information please contact:
Email: sales@lnshengyuan.cn, hailey@lnshengyuan.cn
Mob/WhatsApp: +8615140230656
