304 automatic cleaning water filter housing
- 5000 Set / Sets per Month
- shenzhen,qingdao,shanghai etc
- T/T L/C D/P D/A PayPal Other Cash
- 25 days
- Replace USA Hilco hydraulic oil filter element ST718-00-03ZXC0
- Factory Supply Hilco Hydraulic Oil Filter Element PH720-01-CG
- water filter ss stainless steel membrane housings
- types of cartridge filter, filtration equipment, filter housing
- 304 automatic cleaning water filter machine
- 1.0mpa 1.6mpa brush type auto self cleaning filter
Product Details
Brand Name: | LEFILTER | Place of Origin: | China | Model Number: | LFZ-800-* |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Brief introduction:
When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet.
As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin.
The self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter;
The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter.
Control mode consists of differential pressure, time, manual and PLC control.
Structure:
Model table:
Technical data sheet:
Models Technical data | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 | DN350 | DN400 | DN450 | DN500 | DN600 |
Working pressure | 380V50Hz | |||||||||||
Power (kw) | 0.25 | 0.25 | 0.25 | 0.25 | 0.37 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 2.20 | 2.20 |
Flow rate(m³/h) | 45 | 60 | 105 | 150 | 260 | 410 | 590 | 800 | 1050 | 1320 | 1630 | 2350 |
Min. Pressure (MPa) | 0.1 | |||||||||||
Max. Pressure (MPa) | 1.6 | |||||||||||
Filtration area (c㎡) | 1165 | 1357 | 2095 | 3014 | 5270 | 7857 | 11414 | 15552 | 20344 | 25751 | 31785 | 42295 |
Inlet/outlet dia(inch) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
Drain valve Dia(mm) | DN50-DN80 | |||||||||||
Blowing time(s) | 40-60 seconds |

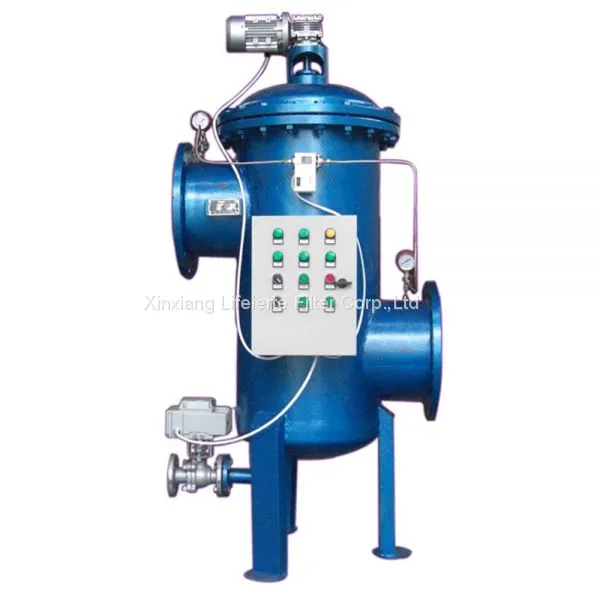

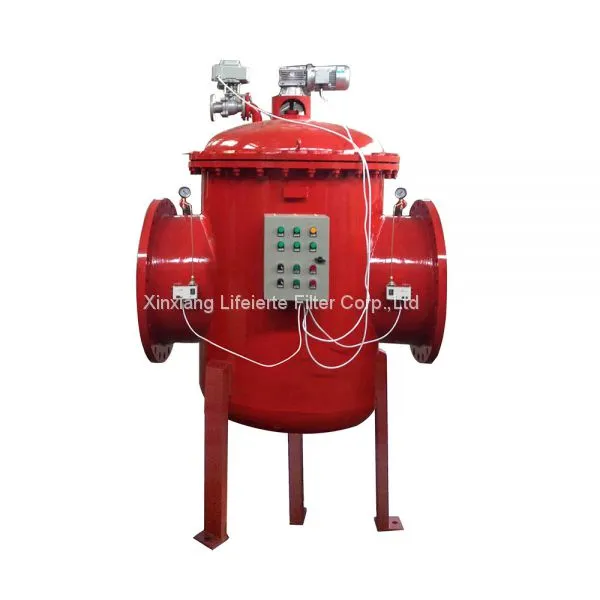

Exactly picture( carbon steel and 304):
--------------------------------------------------------------------------------------
