Cyclone Powder Dust Collector Filter

lefilter cyclone powder dust collector filter

It consists of air inlet, air outlet,cylindrical body, cone part and ash bucket. It's structure is simple and convenient to produce, install and maintenance manage. With lower cost and wide application, it is fit for removing non-stick & non-fibrous dust(>5μm), but multi-tubes cyclone dust collector has 80-85% collection efficiency as to 3μm. Besides, it can work under 1000℃ and 500*105pa situation if it is made of ceramic material or special metal that are heat-resistant, wear-resistant and crossion resistant.

characteristic:
1.It consists of air intake, inlet chamber, filtering chamber, ash bucket, discharge vavle, outlet, counter blowing system and soot cleaning system.
2.dust collector body: steel material
3.thermal expanstion resistance
4.double insulation by use of LBY light rock wool board
5.galvanized board protection
6.glass fiber filter bag: high temperature resistant, anti-bending and wear-resisting

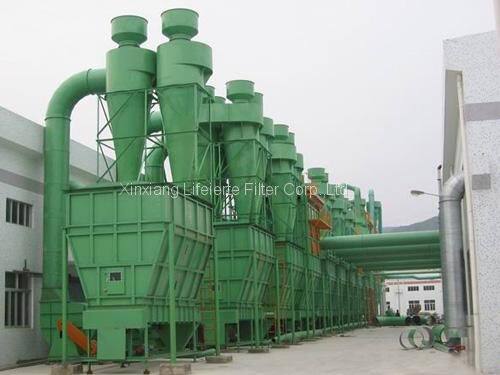

Dust Collector Cyclone Filter Machine pictures

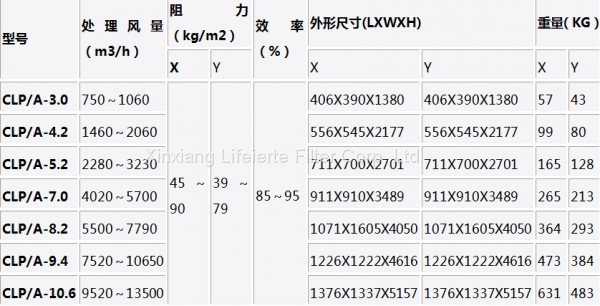

Technical Data
