HMC pulse bag type 304 dust collector used for dry colorants factory
- 1000 Set / Sets per Month
- shenzhen,qingdao,shanghai etc
- T/T L/C D/P D/A PayPal Other Cash
- 1 days
- color masterbatche,color compounds use bag type dust collector
- 304 automatic cleaning water filter housing
- Replace USA Hilco hydraulic oil filter element ST718-00-03ZXC0
- Factory Supply Hilco Hydraulic Oil Filter Element PH720-01-CG
- water filter ss stainless steel membrane housings
- types of cartridge filter, filtration equipment, filter housing
Product Details
Brand Name: | LEFILTER | Place of Origin: | China | Model Number: | LEYR-HMC-48 |
Type: | Other, bag type | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 3 years | Weight: | standard | Dimension(L*W*H): | according customer demand |
Condition: | New | Efficiency: | 99.9% | Minimum Particle Size: | standard |
Product Description
Introduction:
HMC pulse spray single dust collector is a small bag filter designed by our company after digestion and absorption of advanced technology of similar foreign products. The dust collector adopts high-pressure (0.5-0.7MPa) large-flow pulse valve to filter the dust through the filter bag. Compared with other single machines in China, it has the characteristics of large clean energy and high cleaning efficiency. The utility model has the advantages of small size, light weight, simple and compact structure, easy installation, and convenient maintenance (external filtration type), and is widely used in the dust gas purification and treatment system for building materials, metallurgy, mining, chemical industry, coal, and non-metal ore ultrafine powder processing industries. It is the ideal equipment for environmental dust removal. The single-pulse bag filter adopts the pulse cleaning method, which has the advantages of good cleaning effect, high purification efficiency, large processing air volume, long filter bag life, small maintenance workload and safe and reliable operation.
Structure:
1. Upper box: Includes a cover that can be lifted (or a fastening cover) and an air outlet.
2, the middle box: including porous plate, maintenance door, filter bag, keel, venturi and so on.
3, the lower box: including pressure measuring joints.
4, blowing system: including pulse controller, electromagnetic pulse valve, blow pipe, air bag
Technical data sheet:
Model | HMC-24 | HMC-36 | HMC-48 | HMC-60 | HMC-72 | HMC-84 | HMC-96 | HMC-120 | |
Filter media(㎡) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
Filter speed (m/min) | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | 1.0-2.5 | |
Dealing capacity (m3/h) | 1000-2700 | 1700-4050 | 2200-5400 | 2700-6800 | 3300-8100 | 3780-9450 | 4320-10800 | 5400-13500 | |
Qty of filter bag(pc) | 32 | 48 | 64 | 80 | 96 | 112 | 112 | 112 | |
Gas consumption (m/min) | 0.032 | 0.048 | 0.064 | 0.08 | 0.096 | 0.11 | 0.11 | 0.11 | |
Inlet concentration(g/m³) | 30 | ||||||||
Outlet concentration (mg/m³) | 20 | ||||||||
Injection pressure(MPa) | 0.5-0.7 | ||||||||
Bear negative pressure(Pa) | 4000 | ||||||||
Equipment resistance(Pa) | ≤1200 | ||||||||
Qty of impulse valve | Specification | 1" | |||||||
Qty(pc) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
Motor type | Y90S-2 | Y90L-2 | Y100L-2 | Y132S1-2 | Y132S1-2 | Y132S2-2 | Y132S2-2 | Y132S2-2 | |
Power ( KW ) | 1.5 | 2.2 | 3.0 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | |
Weight | CMC | 865 | 1060 | 1334 | 1490 | 1680 | 1942 | 2184 | 2594 |

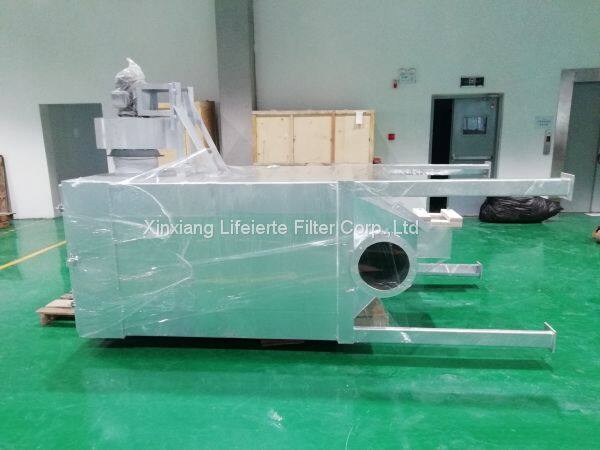

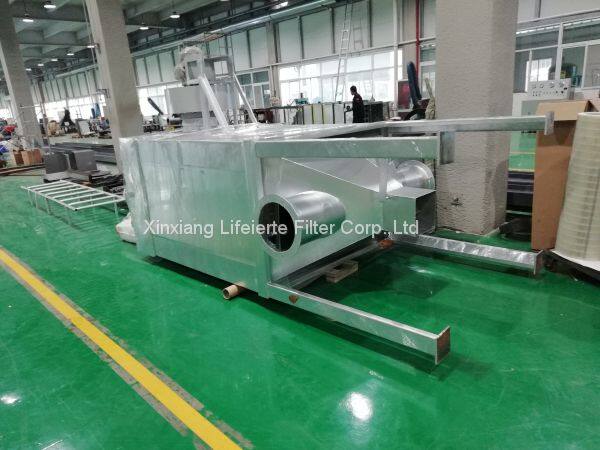

304 Bag Dust Collector Photo:
