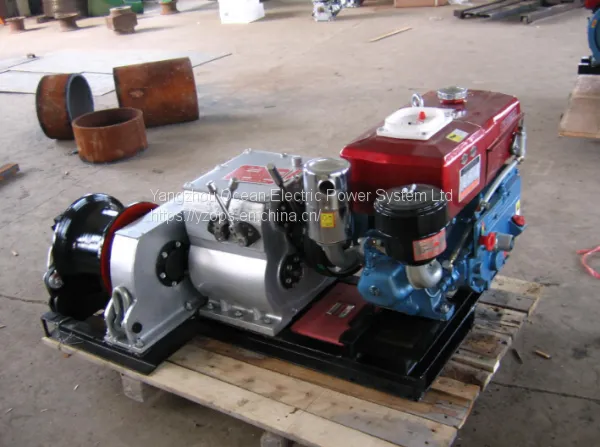

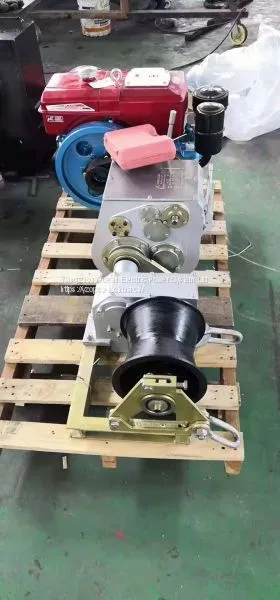

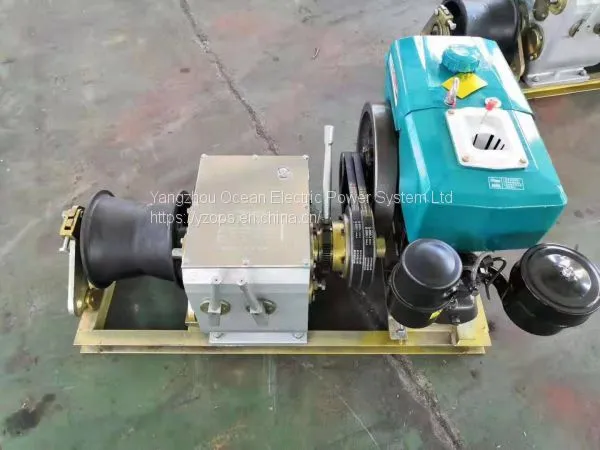

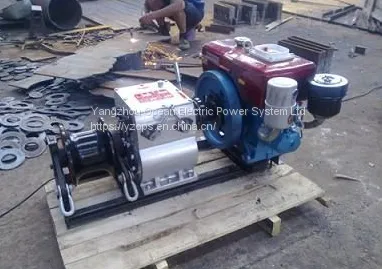

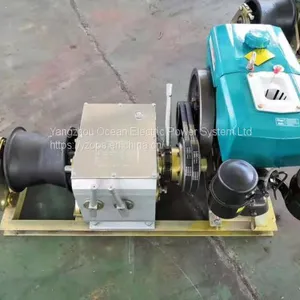

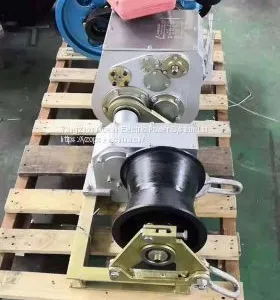

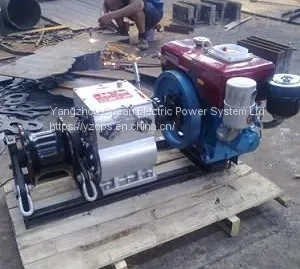

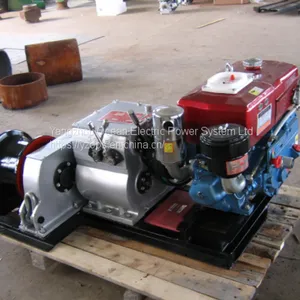

Diesel Engine Powered Winch; Pulling Motored Winch; Cable Pulling Motored Engine Winch
US$ 1000 - 1200
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Ocean
Place of Origin:
China
Model Number:
JJC-30; JJC-50
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Gasoline Engine Powered Winch; Pulling Motored Winch; Cable Pulling Motored Engine WinchUS$ 1000 - 1200MOQ: 1 Unit -
Hand Tractor Winch; Pulling Winch; Moving WinchUS$ 2000 - 2200MOQ: 1 Unit
-
Cable Pulling Machine; Electricity Motor Winch; Electricity Engine Pulling WinchUS$ 1100 - 1200MOQ: 1 Unit
-
Conductor Recycle Winch; Cable Recycle Machine; Cable Stringing Recycling Motored WinchUS$ 2300 - 2500MOQ: 1 Unit
-
Tractor Winch; Tractor Puller; 4-WD Tractor Winch PullerUS$ 12000 - 15000MOQ: 1 Unit
Brand Name
Ocean
Place of Origin
China
Model Number
JJC-30; JJC-50
Diesel engine powered winch is used to pull cable/conductor in stringing progress, the motor is diesel engine.
| Model | JJC-30 | JJC-50 |
| Power(HP) | 4hp | 6hp |
| Engine model | Z170F | R175A |
| Speed(rpm) | 2600 | 2600 |
| line pull(KN)/ speed(m/min)(quick) | 7/18 | 15/13.8 |
| line pull(KN）/moderate(m/min)(moderate) | 15/7.2 | 30/5.7 |
| line pull(KN)/speed(m/min)(slow) | 30/4.6 | 50/3.6 |
| reverse speed(m/min) | 5.2 | 6.3 |
| drum bottom Dia(mm) | Φ160 | Φ160 |
| Dimension(mm)/weight(kg) | 800x620x520/140 | 890x670x530/175 |
