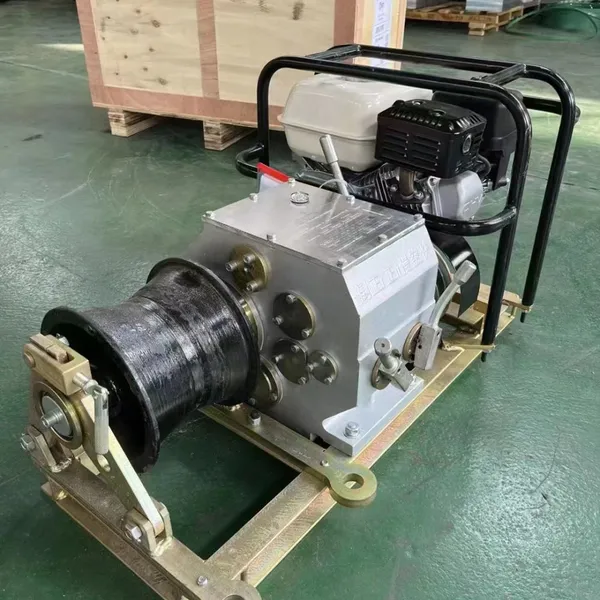

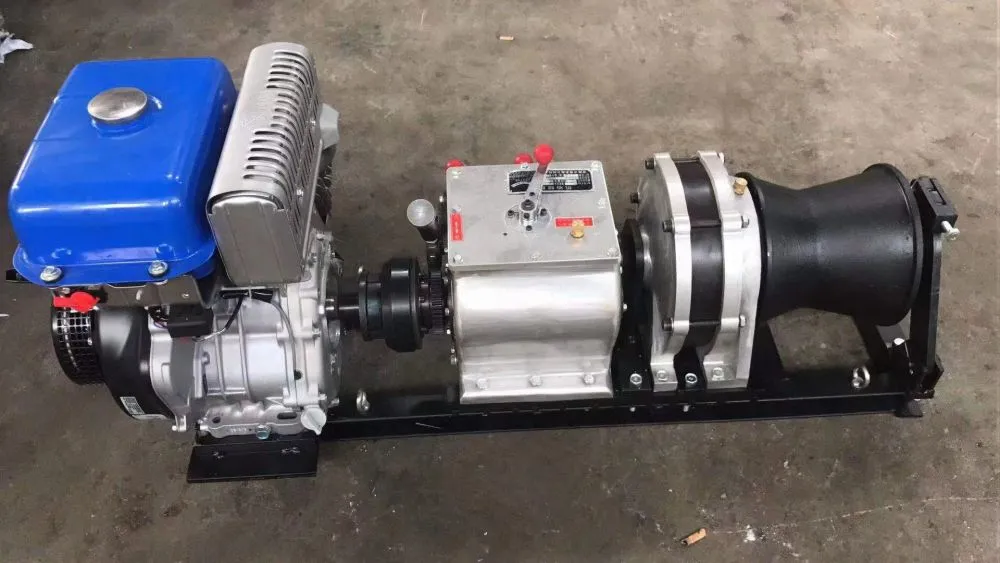

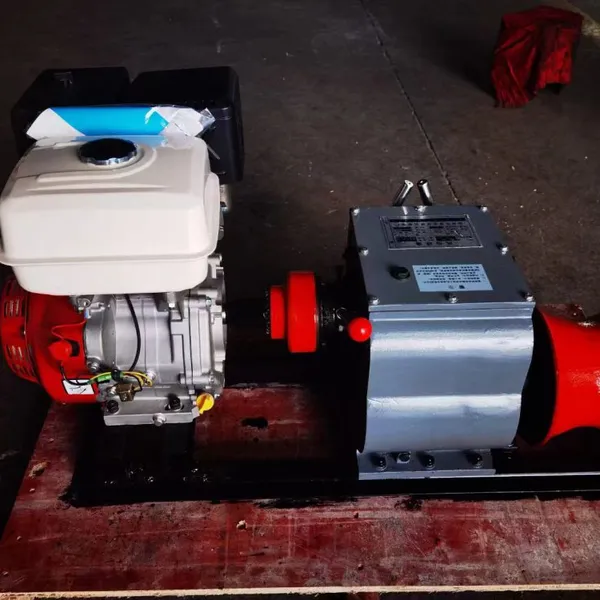

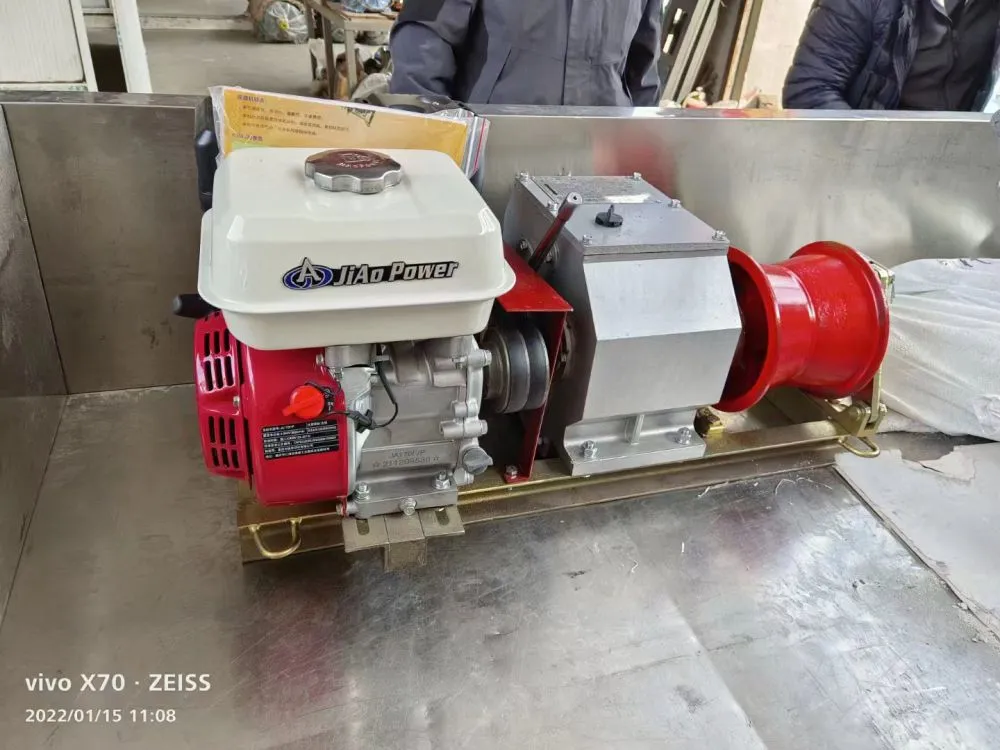

Gasoline Engine Powered Winch; Pulling Motored Winch; Cable Pulling Motored Engine Winch
US$ 1000 - 1200
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Ocean
Place of Origin:
China
Model Number:
JJQ-30; JJQ-50
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Hand Tractor Winch; Pulling Winch; Moving WinchUS$ 2000 - 2200MOQ: 1 Unit -
Cable Pulling Machine; Electricity Motor Winch; Electricity Engine Pulling WinchUS$ 1100 - 1200MOQ: 1 Unit
-
Conductor Recycle Winch; Cable Recycle Machine; Cable Stringing Recycling Motored WinchUS$ 2300 - 2500MOQ: 1 Unit
-
Tractor Winch; Tractor Puller; 4-WD Tractor Winch PullerUS$ 12000 - 15000MOQ: 1 Unit
-
Cable Conveyor; Electric Cable Conveyor; Cable Pushing MachineUS$ 1000 - 2000MOQ: 5 Sets
Brand Name
Ocean
Place of Origin
China
Model Number
JJQ-30; JJQ-50

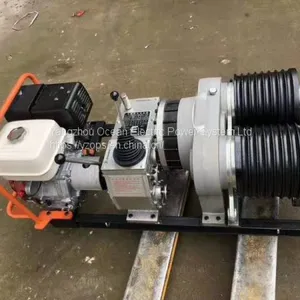

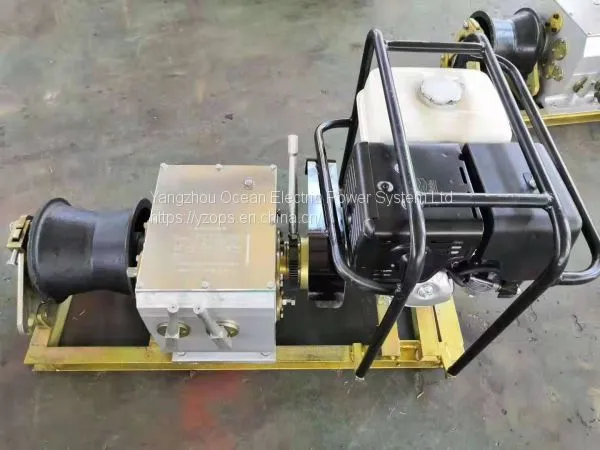

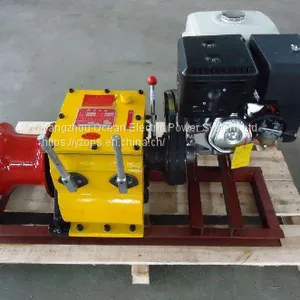

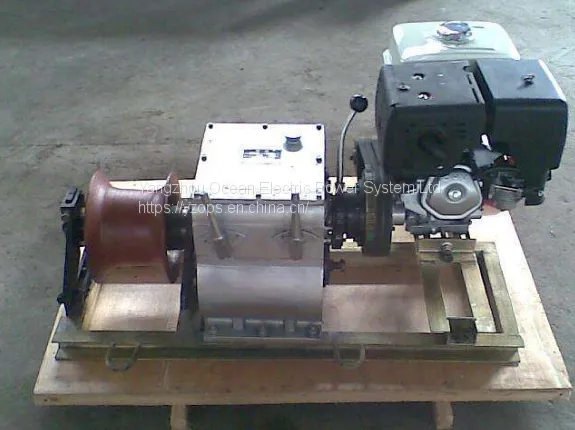

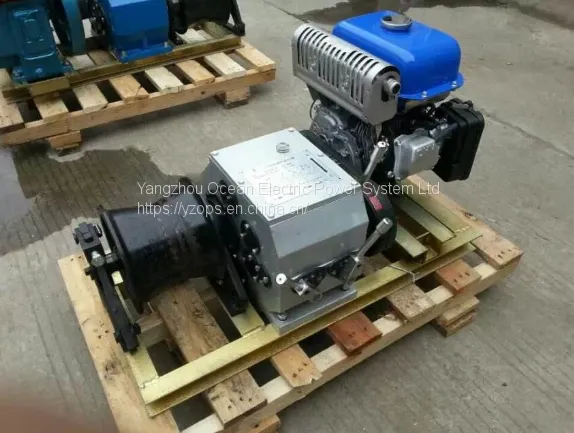

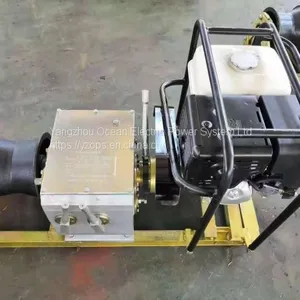

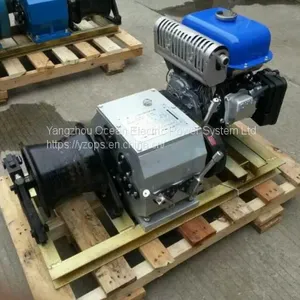

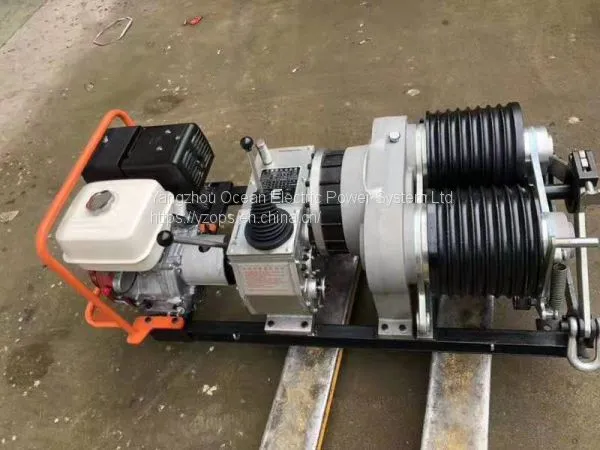

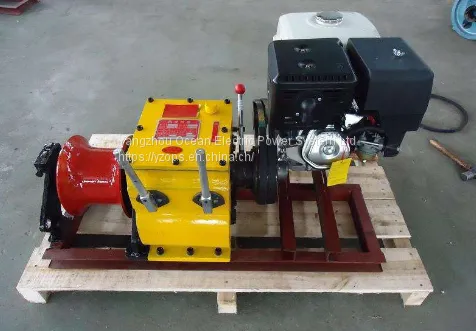

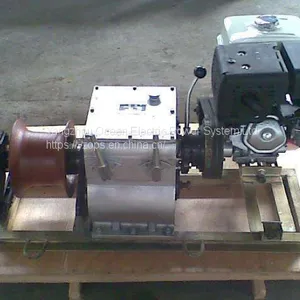

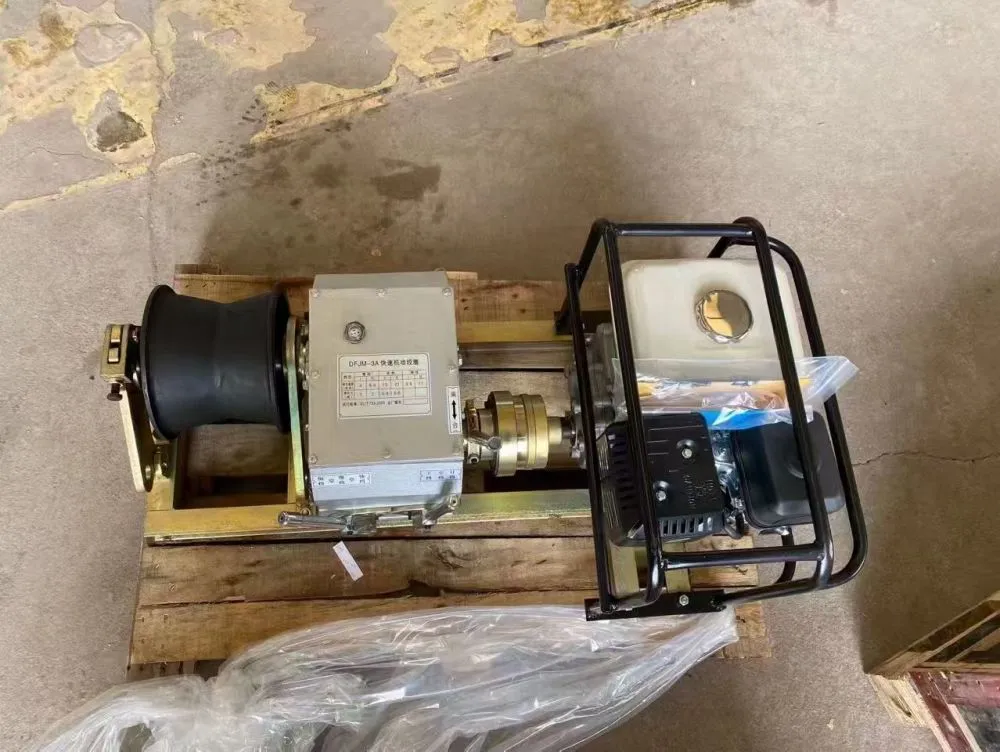

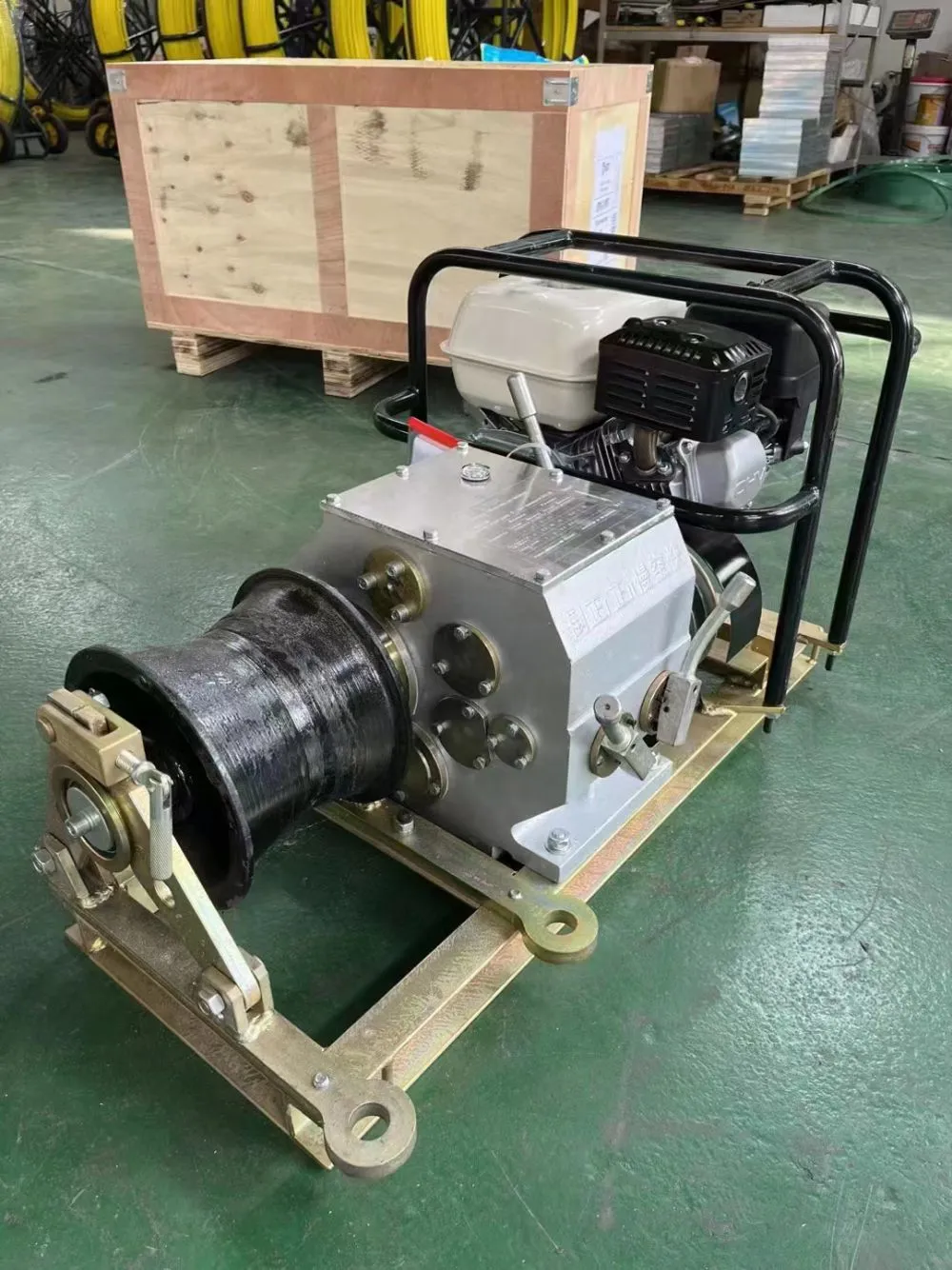

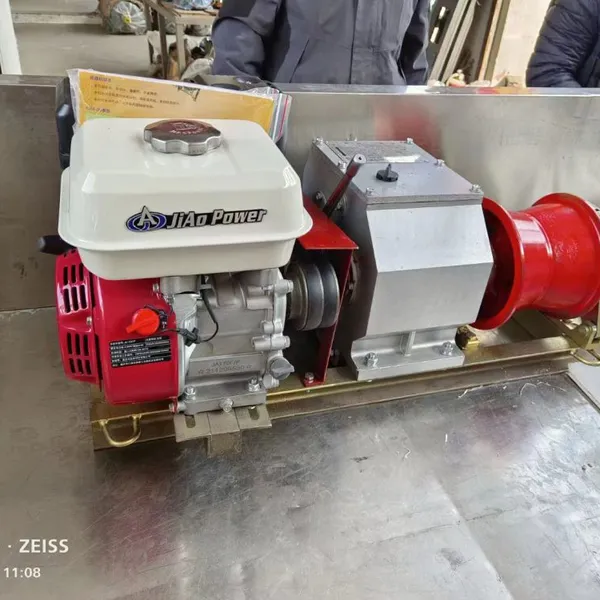

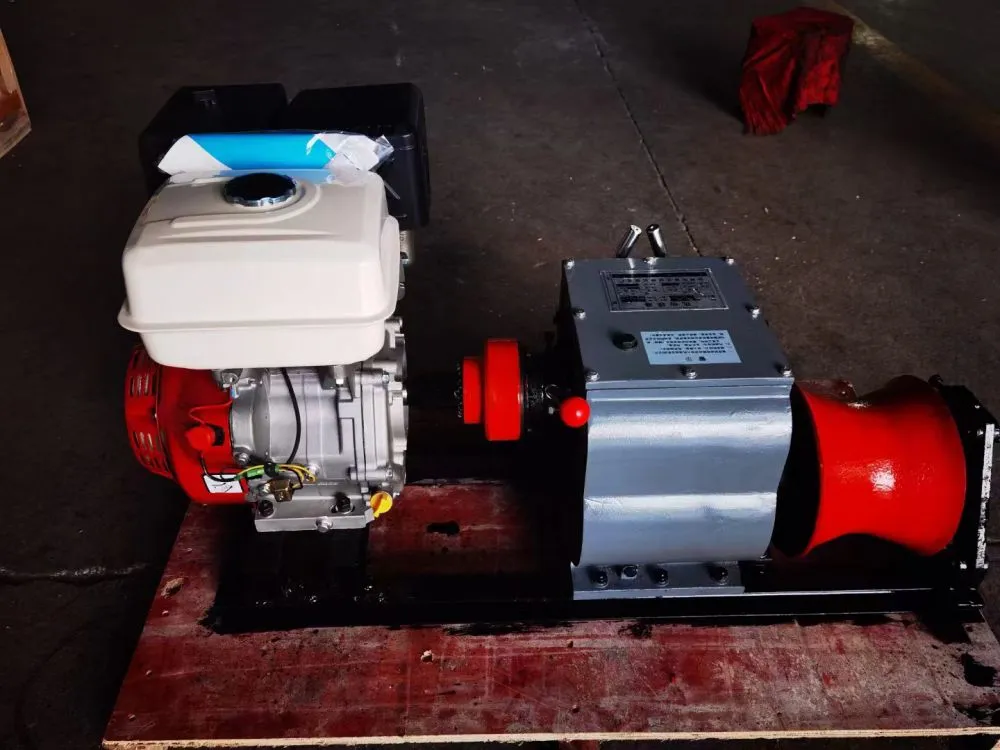

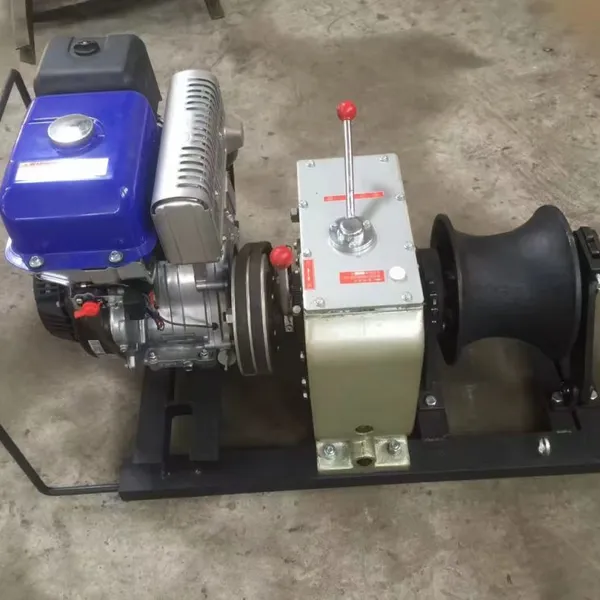

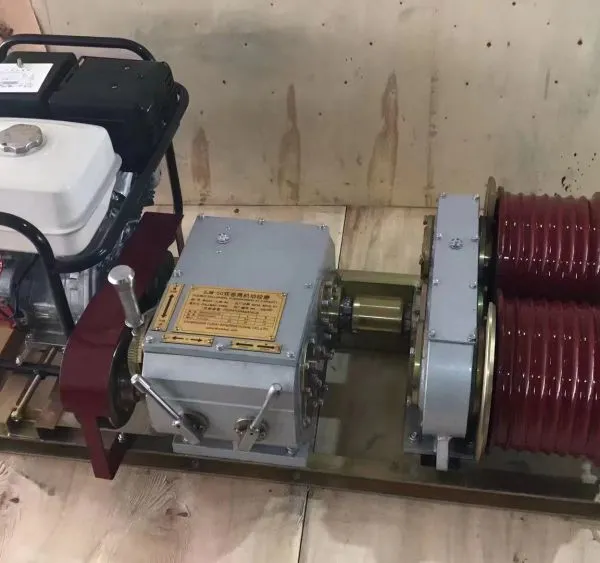

Qasoline engine powered winch is used to pull cable/conductor in stringing progress, the motor is gasoline engine.
| Model | JJQ-30 | JJQ-50 |
| Power(HP) | 5hp | 9hp |
| Engine model | Honda GX160 | Honda GX270 |
| Speed(rpm) | 3600 | 3600 |
| line pull(KN)/ speed(m/min)(quick) | 7.1/18.1 | 13/18.5 |
| line pull(KN）/moderate(m/min)(moderate) | 19/6.8 | 30/7.3 |
| line pull(KN)/speed(m/min)(slow) | 30/4.3 | 50/4.6 |
| reverse speed(m/min) | 4.8 | 5.2 |
| drum bottom Dia(mm) | Φ160 | Φ160 |
| Dimension(mm)/weight(kg) | 750x600x520/108 | 870x620x520/135 |
