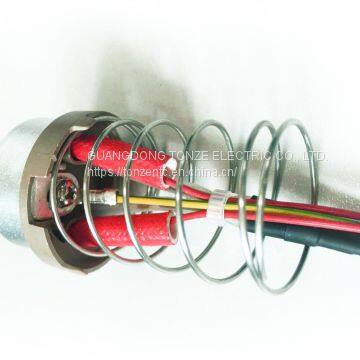

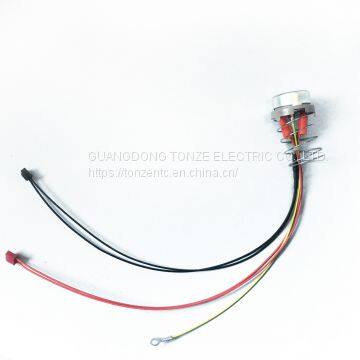

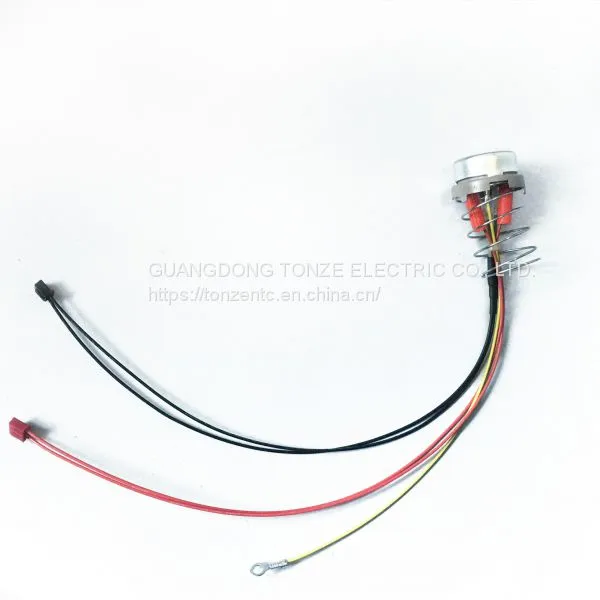

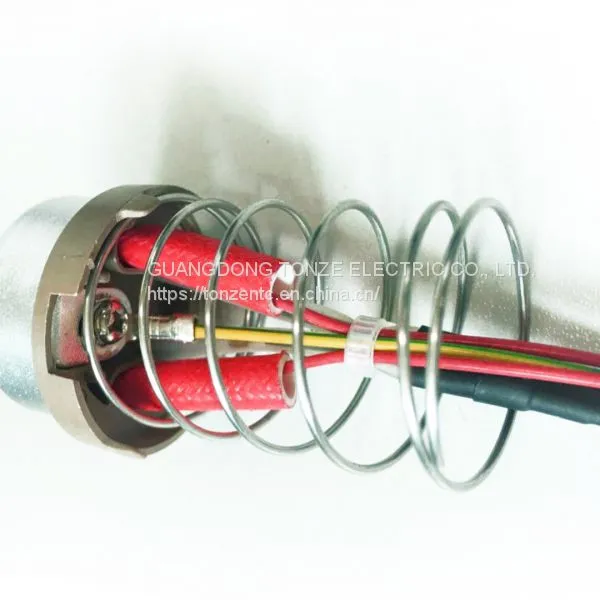

Rice Cooker Used NTC Thermistor Temperature Sensor

INTRODUCTION

Shell coated NTC temperature sensor connects high-precision and high-reliability NTC thermistors with various types of wires such as PVC or TEFLON. It is packaged in various material housings with insulating, heat-conductive and waterproof materials to form the desired shape, which is convenient for installation and remote temperature measurement and control. It is suitable for temperature measurement and control of household appliances such as rice cookers, electric pressure cookers, porridge pots and etc.

Various specifications of shell, material, lead wire, connector and etc can be provided according to customer's requirements.

INFORMATION

Lead Wire：Teflon AWG24, the other wire gauge are optional.

Shell of Sensor：Aluminum, other materials of shell, length and diameter are optional, suitable for different types of product requirements. Special shells, can be customized.

Wire Gauge and Length：Customized

Connector：Customized

Encapsulation：Can be packaged according to customer requirements, and can be assembled on the wire with tube or heat-shrink tube, size and length can be customized according to customer requirements.

PARAMETER

R_25℃=100KΩ

B_25/50℃=3950K

Tolerance：±1%

SPECIAL PARAMETER AND TOLERANCE, CAN BE CUSTOMIZED！
