NTC Thermistor Temperature Sensor, specially for Sous Vide Stick
- 100000 Piece / Pieces per Month
- shantou
- T/T Other
Product Details
Brand Name: | TONZE | Place of Origin: | China | Model Number: | CWF51 |
Type: | Thermal Resistor | Operating Temperature: | -30~150 | Package Type: | Throught Hole |
Resistance Tolerance: | 0.05C, 0.1C, 1%, 2%, 3%, 5% | Resistance: | 100K B3990K | Technology: | Metal Oxide |
Product Description
·High precision and reliable NTC thermistor with insulated, heat conductive and water resistant epoxy resin into desired shapes
·Special parameter could be made according to different requirement
·High precision of resistance and B value
·Good coherence and interchange ability
·Quick response and high delicacy
·Double packaging techniques adopted to ensure good insulation and sealing effect, high resistance to mechanical colliding and bending
·A variety of coating configuration and shell materials are available according to different usages
·Cable length could be tailored according to customers’ requirement
Application:

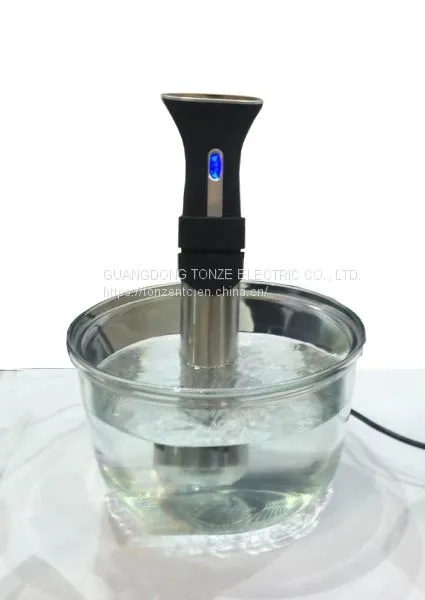

Specially for SOUS VIDE STICK.
Specification:
·The range of resistance under the rated zero power (R25℃): 100KΩ
·The allowable tolerance of R25℃: ±0.05℃, ±0.1℃
·The range of B value (K): 3990K
·The allowable tolerance of B value: ±0.5%、±1%、±2%、±3%、±5%
·The range of operating temperature: -30℃ ~ +150℃
·Dissipation factor: ab. 2.5mW/℃ (In Still Air)
·Thermal time constant: ab. 30S (In Still Air)
·Dimension: Customized
