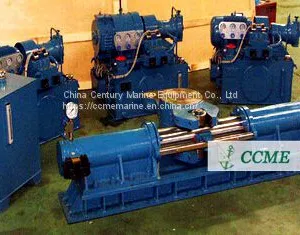

Marine 2-ram-4 cylinder type hydraulic marine steering gear

Name: Marine 2-ram-4 cylinder type hydraulic marine steering gear
Brand: CCME
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CCME	Place of Origin:	China	Model Number:	CMP-4
Part:	Other, marine

Product Description

Electro-hydraulic control;Compact design;Suitable for normal rudder blades;Pumps with variable displacement or constant deliver

Marin advantages:
Electro-hydraulic control
Compact design
Suitable for normal rudder blades
Pumps with variable displacement or constant delivery
One-piece tiller for standard or keyless fit of rudder stock
pump units mounted on and completely piped with the cylinders

(1)Suitable for:
Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering torque.
(2)Main Tech:
Max working torque:              15 KN.M — 250 KN.M
Max. mech. rudder angle: ± 45 degree
Time of rudder movement: ≤28 S
Rudder stock Diameter:          300mm — 900 mm
Working pressure:                  13 Mpa — 20 Mpa
Design pressure:                    16 Mpa — 24 Mpa
(3)Scope of delivery:
Marine steering gear with hydraulic cylinders
Electro-Hydraulic power station with oil pumps
Oil tanks
Start motors
On requests, the full range of parts will be delivered.
(4)Certificates:
The provided products can be delivered with certifications of ABS,GL, BV,LR and CSS, and other certifications can be served according to the customers.

	Working Torque (KN.M)	Max mech Rudder angle	Time of rudder movement (s)	Working pressure(Mpa)	Designed pressure (Mpa)	Motor power (kW)	Dimensions (unit: mm)
	Working Torque (KN.M)	Max mech Rudder angle	Time of rudder movement (s)	Working pressure(Mpa)	Designed pressure (Mpa)	Motor power (kW)	A	B	C

MDEE060-FM06	630	±45°	≤28	15	18.8	37	3914	2300	1033
MDEE060-FM07	680	±45°	≤28	16.2	20.3	37	3914	2300	1033
MDEE060-FM08	700	±45°	≤28	16.7	20.9	37	3914	2300	1033
MDEE060-FM09	750	±45°	≤28	17.9	22.4	37	3914	2300	1033
MDEE060-FM10	780	±45°	≤28	18.6	23.3	37	3914	2300	1033
MDEE060-FM11	800	±45°	≤28	13.5	16.9	45	3914	2300	1110
MDEE060-FM12	880	±45°	≤28	14.9	18.6	45	3914	2300	1110
MDEE060-FM13	900	±45°	≤28	15	18.8	45	3914	2300	1110
MDEE060-FM14	930	±45°	≤28	15.7	19.7	45	3914	2300	1110
MDEE060-FM15	1000	±45°	≤28	16	20	45	3914	2300	1110
MDEE060-FM16	1200	±45°	≤28	14.8	18.5	45	4300	2800	1220
MDEE060-FM17	1500	±45°	≤28	17.6	22	55	4300	2800	1220
MDEE060-FM18	2000	±45°	≤28	15	18.8	75	4800	3100	1340
MDEE060-FM19	2500	±45°	≤28	18	22.5	90	4800	3100	1340
