Solid Foam Filled Fender Polyurethane EVA Marine Floating Fender
Solid Foam Filled Fender Polyurethane EVA Marine Floating Fender is a kind of compressed fender which builed outer protective layer with polyurea material and adopts polyurethane foaming material or plastic foaming as buffer medium. The destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
Widely used for the docks, boatyard and ship boards etc.
Features:
1.Having the capability of floating, not easily influenced by the ebb and flow of the tide.
2.Simple, effective internal engineering
3.Easy and reliable mounting.
4.Low reaction force and high energy absorption.

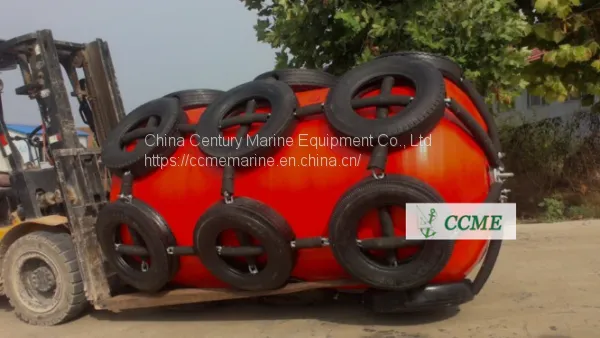

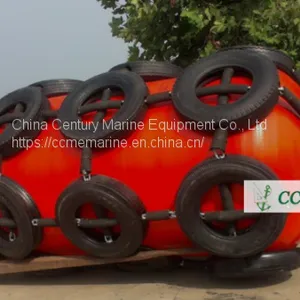

Marine pneumatic Rubber Fenders with chains and tyres
| Size | Initial Internal |
Weight |
Initial Internal |
Weight |
||
| D*L(mm) | R(KN) | GEA(KJ) | Kg | R(KN) | GEA(KJ) | Kg |
| 500*1000 | 64 | 6 | 25 | 83 | 8 | 25 |
| 600*1000 | 74 | 8 | 32 | 96 | 11 | 32 |
| 700*1500 | 137 | 17 | 50 | 178 | 24 | 50 |
| 1000*1500 | 182 | 32 | 80 | 235 | 44 | 80 |
| 1000*2000 | 257 | 45 | 100 | 335 | 63 | 125 |
| 1200*2000 | 297 | 63 | 120 | 386 | 86 | 165 |
| 1350*2500 | 427 | 102 | 165 | 554 | 140 | 226 |
| 1500*3000 | 597 | 153 | 315 | 751 | 211 | 370 |
| 1700*3000 | 639 | 191 | 405 | 830 | 263 | 436 |
| 2000*3500 | 875 | 308 | 590 | 1138 | 424 | 632 |
| 2500*4000 | 1381 | 663 | 1050 | 1815 | 925 | 1110 |
| 2500*5500 | 2019 | 943 | 1333 | 2653 | 1317 | 1410 |
| 3000*5000 | 2104 | 1210 | 1880 | 2709 | 1571 | 2155 |
| 3000*6000 | 2583 | 1485 | 2160 | 3292 | 1888 | 2470 |
| 3300*4500 | 1884 | 1175 | 2020 | 2476 | 1640 | 2300 |
| 3300*6500 | 3015 | 1814 | 2700 | 3961 | 2532 | 3080 |
