Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden

Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden photo-1
Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden photo-2
Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden photo-3
Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden photo-4
Smart Radar Sensor DC5V 5.8ghz Microwave Radar Motion Sensor Switch for Garage Parking Garden photo-5
US$ 3.9 - 4.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
HDIC
Place of Origin:
China
Model Number:
HFS-DC06
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou/HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HDIC
Place of Origin China
Model Number HFS-DC06
Usage Other, Microwave /radar motion sensor
Theory Other, Doppler effect
Output Digital Sensor

Model: HFS-DC06-5V

Size :  39.5*22.7*12mm (L*W*H)

High Frequency: 5.8GHz

Wave Band: ISM

Input Voltage: DC5V (Input voltage need to go through voltage stabilization, the voltage ripple can not be too big)

Output Method: 5A TTL  (output High Level once being triggered)

Minimum Input Current: 30mA

Connections: VCC connecting with power positive, GND with power negative, GND and OUT with TTL signal

Installation Height: 2-8m (Suggested)

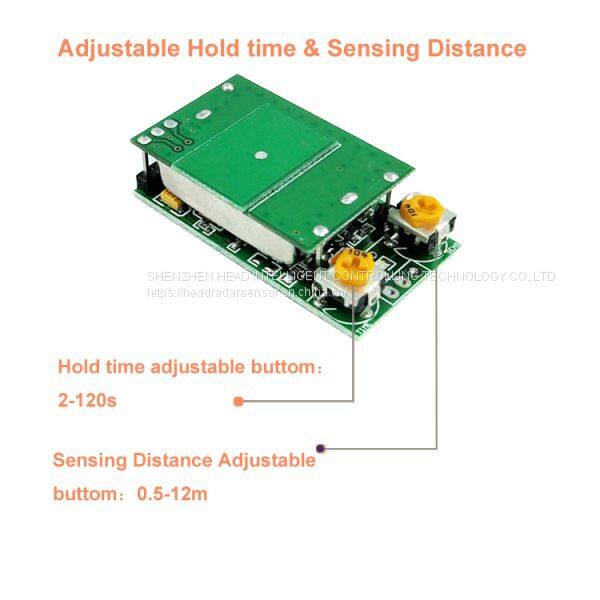

Sensing Distance: ≥12m Adjustable

Sensing Range: Straight right Cone 360°

Delay Time: 2-120s Adjustable  (for testing, it is set to be 2s out of factory)

Features :

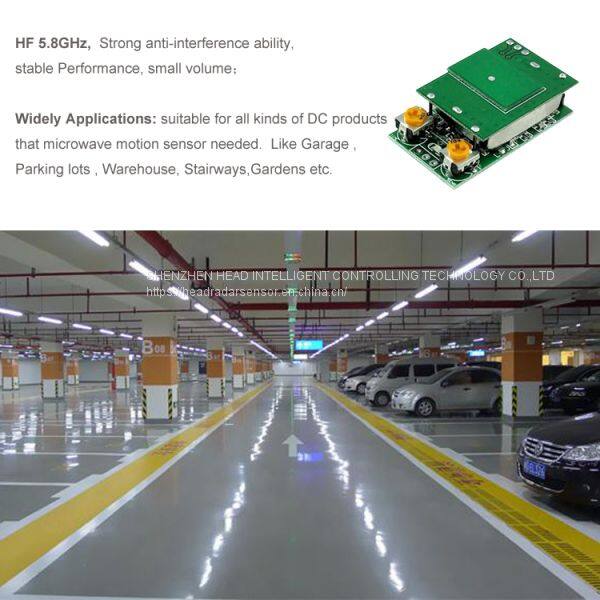

5.8GHz, Further sensing Distance,more stable working performance, stronger anti-interference ability, small volume, suitable for all kinds products that need DC microwave motion sensor.



Notes

1, It is noted that the supply current should be ≥30mA to drive the module. And the voltage should be stable without big fluctuation. Otherwise,continuous trigger would be caused  (the load lamp may be continuously triggered by itself or couldn’t be off )



2, For its working properly, Please avoiding below environments:

A: Being installed in the side of a large area of metal;

B: Being put in a completely closed metal shell;


Product Tags: Smart Radar motion sensor , smart led light switch , radar sensor switch , 5.8ghz sensor , led radar sensor , energy saving sensor , Long sensing distance sensor , 5V radar sensor , led sensor detector
