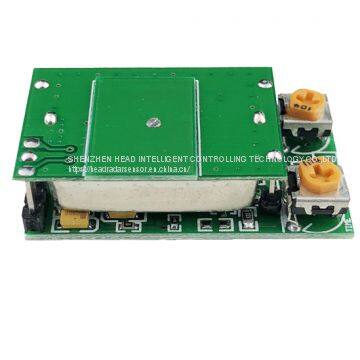

5.8G DC Microwave Motion Sensor Module

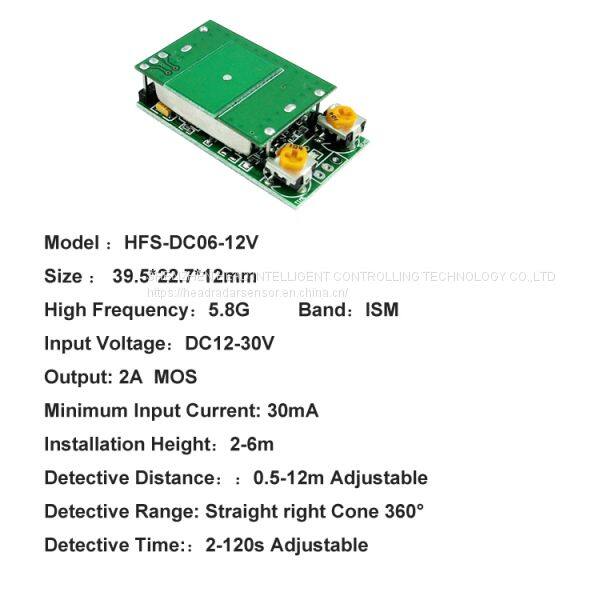

Model : HFS-DC06-12V

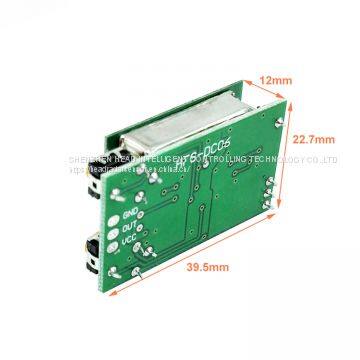

Size: 39.5*22.7*12mm
:High Frequency 5.8G Band: ISM
Input Voltage: DC12-30V
Output:2A MOS
Minimum Input Current: 30mA

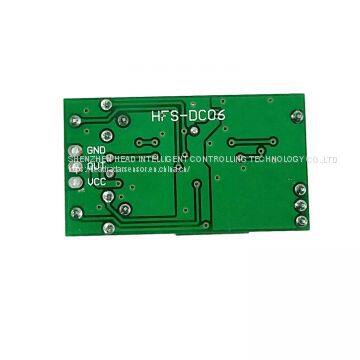

Connections : VCC connecting with power positive, GND with power negative,
VCC. OUT with load positive and negative.
Installation Height: 2-6m
Detective Distance: 0.5-12m Adjustable
Detective Range:Right Ahead Cone 360°
Detective Time: 2-120s Adjustable
Features: 5.8G HZ, it does not interfere with each other with the normal installation and usage, high stability, strong anti-interference ability, small volume, suitable for all kinds of DC microwave module products.
Notes: 1, It is noted that the input current should be ≥30mA to drive the module. And the voltage should be stable without big fluctuation. Otherwise, it will cause continuous trigger (the load lamp may be continuously triggered by itself or couldn’t be went out)
2, For its working properly, avoiding being installed in the side of a large area of metal , avoiding being put in a completely closed metal shell.
