Brand Name ZDE
Place of Origin China
Model Number BS003
Material Rubber
Style Mechanical Seal
Standard or Nonstandard Standard

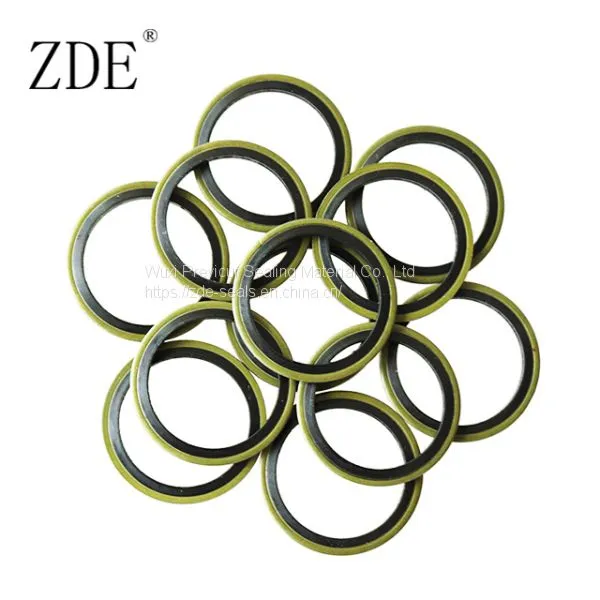

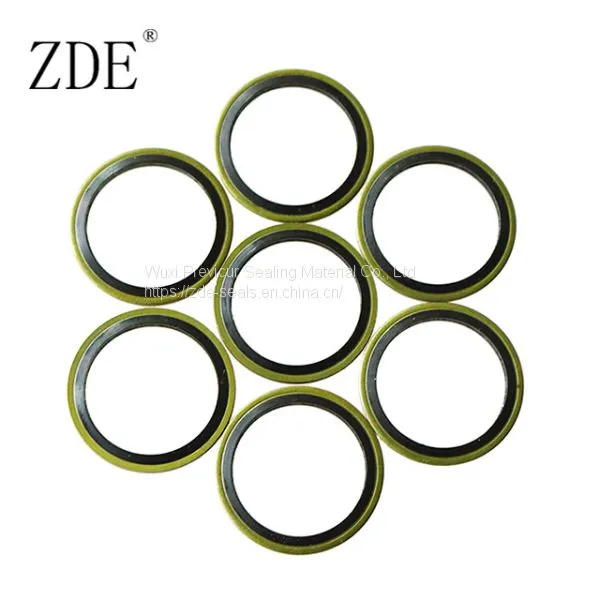

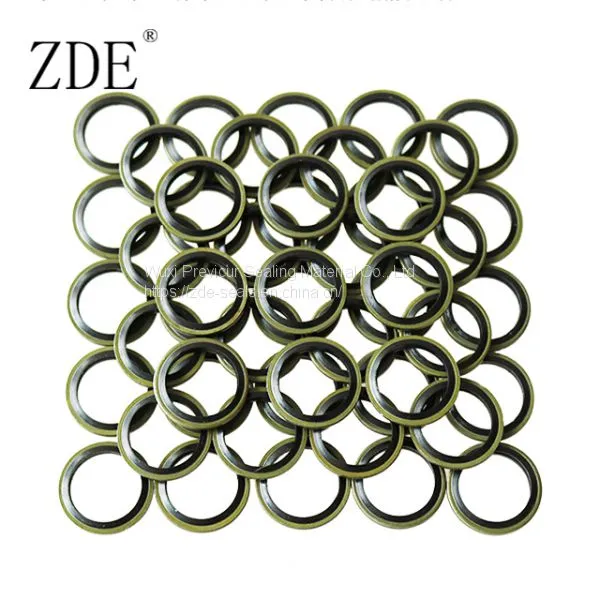

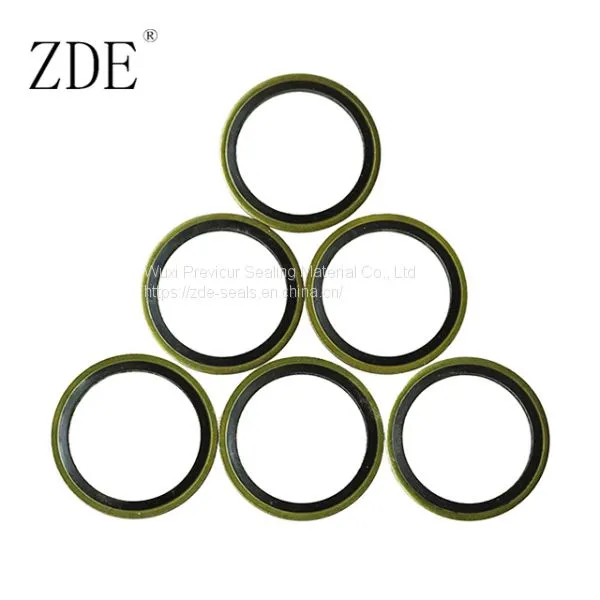

Bonded Seal Overview

1. It's the essential washer assortment for automotive, great for sump plugs, water, fuel and hydraulic fittings.

2. The bonded seal comprises a metal washer and an elastomeric ring bonded inside the diameter.

3. Metal washer can prevents over-compression and limits deformation of the elastomeric ring. Reliable low and high pressure sealing, high and low temperature capabilities.


Material & Properties

Material: 1) Carbon Steel+NBR/FKM          2) Stainless Steel+NBR/FKM

Temperature: 1) NBR: limit temperature -40~120℃, long term use temperature -20~100℃.
2) FKM: limit temperature -40~240℃, long term use temperature -20~220℃.

Pressure: Can reach 40MPa.

Color: 1) Silver+Black/Brown          2)Yellow+Black/Brown


The Selection of Bonded Seal
1. For the property requirements of wear and oil resistance, you can choose the combination of NBR gasket, the effect is better, the matching is high.

2. For the property requirements of high temperature resistance, you can choose to use a combination gasket of FKM, which is better for high temperature resistance.
