Automatic Oscillation Knife Paper Gasket Cutting Machine
For the first time in the evolution of computerized cutting machines, the Professional version of the AOYOO-cutter product family offers the most efficient capabilities for the picture framing industry. A mat board cutting system for frame shops and larger framing businesses needing large scale production capabilities with precision, speed and efficiency.
Model Highlights:

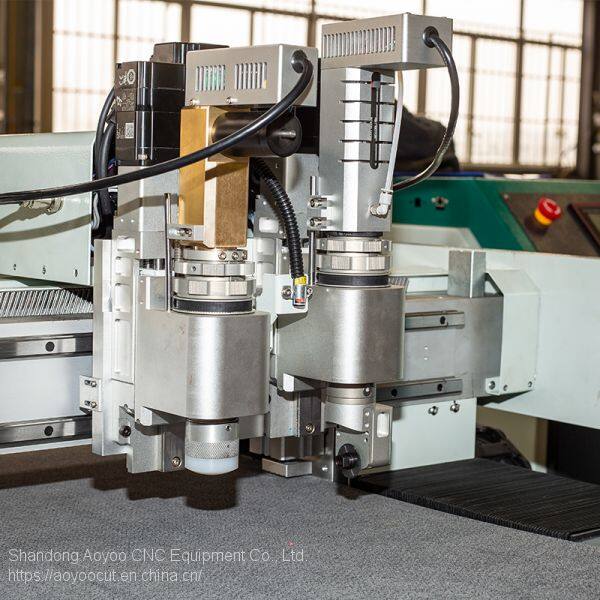

1) The AOYOO automatic oscillation knife paper gasket cutting machine is a multi-functional digital cutter that meets a variety of needs. The modularized tool head structure enables convenient tool-switching and provides economical future upgrading.
2) The automatic oscillation knife paper gasket cutting machine's six axis motor-controlled CNC system performs with high speed and accuracy. The DSP integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction. The Ethernet port, user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment. The LCD touch screen panel makes it easy to learn and operate.
3) The automatic oscillation knife paper gasket cutting machine offers flexible tool module options that meet the requirements of diverse industries. The automatic oscillation knife paper gasket cutting machineis a CE certified product. We welcome custom orders.
If you have any question, please contact us now for more details and I will make sure you receive the information you need promptly!
Our official website product link: /works/product-digital-gasket-cutting-machine.html

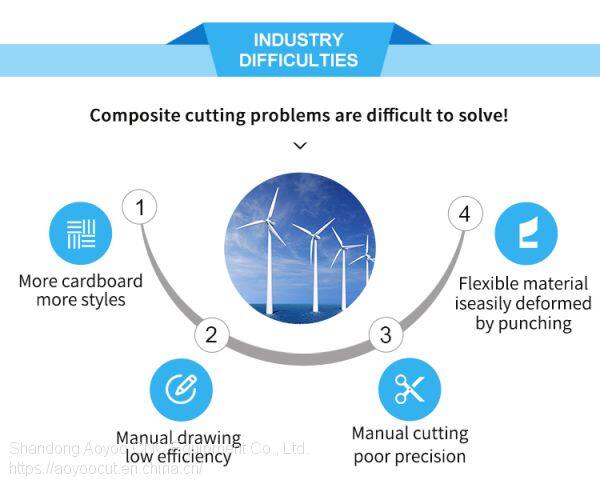

1. Industry key points
2. Product Advantages of automatic oscillation knife paper gasket cutting machine :
☆ 1,Welded structure by thick steel tube welding under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.High accuracy, long service time, steady movement.
☆ 2,Adopt linear guide rail, make sure the machine square the accuracy and can withstand large load.
☆ 3,Mechanical and electrical design, selection of straight excellent brand electrical accessories.
☆ 4,9KW HSD ATC spindle power change knife spindle to ensure the machine can be vigorous cutting.
☆ 5,Breakpoint power function for carving.
☆ 6,Auto lubricating system, one touch can finish periodic maintenance easily.
☆ 7,Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa.
☆ 8,New function add oscillating knife for cutting soft materials such as gasket, rubber, PVC,carton, PU.
3. Applicable materials of automatic oscillation knife paper gasket cutting machine :
Automatic oscillation knife paper gasket cutting machine can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

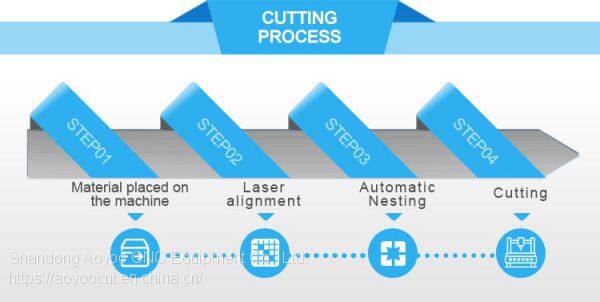

4. Cutting Process of automatic oscillation knife paper gasket cutting machine :
5. Specifications of automatic oscillation knife paper gasket cutting machine :
Technical parameters / model | AOYOO-1625-ZS6 | AOYOO-1825-ZS8 | AOYOO-2125-ZS10 | Accept special model customization | ||
Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
safety devices | Safety devices use infrared sensing, safe and reliable | |||||
Cutting speed | 200-2000mm/s | |||||
Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
Applicable materials | Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material | |||||
Material fixing method | Vacuum partition adsorption | |||||
Transmission port | Network port | |||||
Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||||
rated power | 11kw | |||||
Rated voltage | 380V±10%/220V±10% Optional | |||||
Control System | Chinese and English LCD touch screen | |||||
Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
Software | Automatic nesting software, template entry software(Optional) | |||||
Support file format | AI,PLT,DXF,CDRetc | |||||
Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
6. Our Service:
Guarantee & after-sales service
1.warranty:1 years quality guaranty,the machine with main parts(excluding the consumables)
vide technical services anytime(we have professional engineers to offer machine installation and maintenances).
3.to free replace all accessories during the warranty period.(except artificial damage )
4.24 hours online service each day, free technic support.
5.Machine has been adjusted before delivery
6.people-oriented,scientific management,technology first,extraordinary quality,honesty and practical,and the trust and support of clients at home and abroad shall be gained.
Our official website:
7. About AOYOO
Shandong Aoyoo CNC Equipment Co., Ltd. is a high-tech enterprise specializing in R&D, production, sales and service of CNC cutting equipment, covering an area of more than 1,000 square meters.
Developed a variety of tools such as vibrating knife, drag knife, round knife, half cutter, bevel cutter, pressure roller, punching knife, milling cutter, etc.
The company specializes in clothing textiles, cartons, luggage shoes, carpets, carbon fiber, etc.
Received a number of national invention patents, passed ISO9001, CE and FDA, and exported products to more than 100 countries and regions.
Please feel free to contact us, we will reply within 24h!
About automatic oscillation knife paper gasket cutting machine we want to know:
1.What materials do you need to process?
2.The size and thickness of the material?
