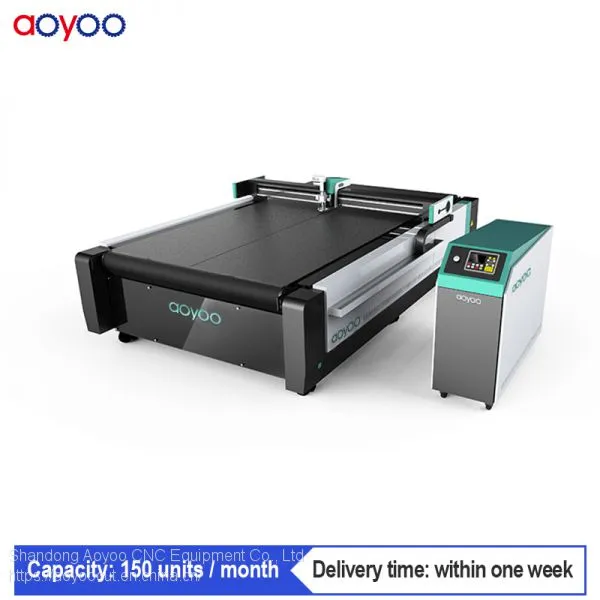

Automatic Gasket Cutting Equipment with Oscillating Knife
For the first time in the evolution of computerized cutting machines, the Professional version of the AOYOO-cutter product family offers the most efficient capabilities for the picture framing industry. A mat board cutting system for frame shops and larger framing businesses needing large scale production capabilities with precision, speed and efficiency.
Model Highlights:
1. Two separate, fully synchronised cutting heads for independent, very precise 45° and 90° cuts
2. Automatic blade depth adjustment DBD for V-grooves and double mats.
3. No tool changes and absolutely no other manual manipulation, just complete mat board production in one uninterrupted process.
4. Cutting edge to edge to maximize mat board usage with unique button finger clamps and optional vacuum bed.
5. Tool-less blade change within seconds.
6. Perfect cut results for all boards guaranteed up to 3.5 mm thickness and up to 5.0 mm thickness for foamboards with the 90° cutting head
If you have any question, please contact us now for more details and I will make sure you receive the information you need promptly!
Our official website product link: /works/product-digital-gasket-cutting-machine.html

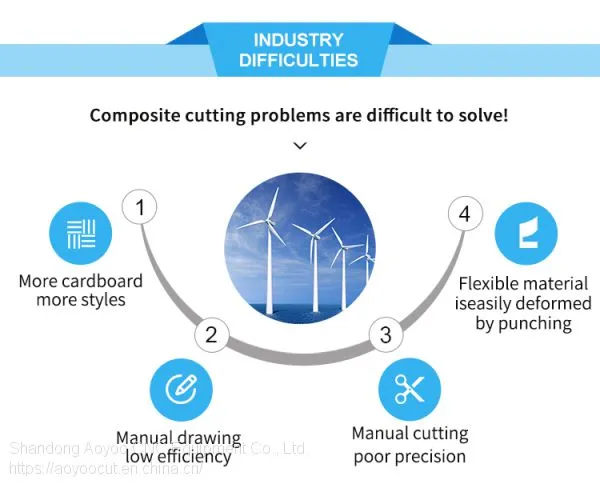

1. Industry key points
2. Product Advantages of automatic gasket cutting equipment with oscillating knife :

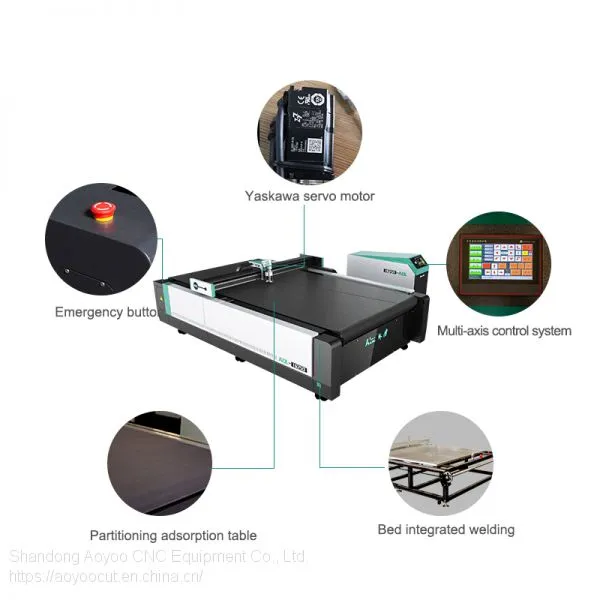

☆ 1,Welded structure by thick steel tube welding under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.High accuracy, long service time, steady movement.
☆ 2,Adopt linear guide rail, make sure the machine square the accuracy and can withstand large load.
☆ 3,Mechanical and electrical design, selection of straight excellent brand electrical accessories.
☆ 4,9KW HSD ATC spindle power change knife spindle to ensure the machine can be vigorous cutting.
☆ 5,Breakpoint power function for carving.
☆ 6,Auto lubricating system, one touch can finish periodic maintenance easily.
☆ 7,Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa.
☆ 8,New function add oscillating knife for cutting soft materials such as gasket, rubber, PVC,carton, PU.

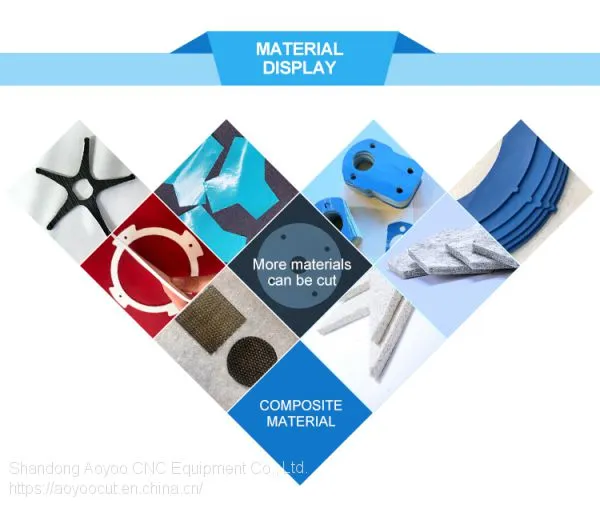

3. Applicable materials of automatic gasket cutting equipment with oscillating knife :
Automatic gasket cutting equipment with oscillating knife can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

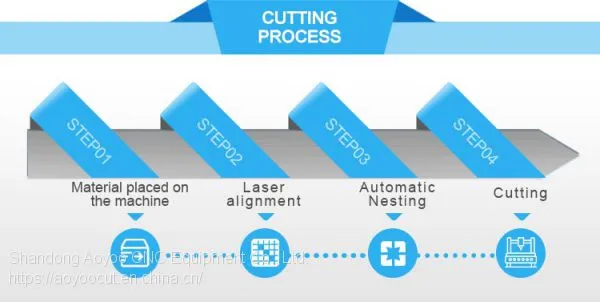

4. Cutting Process of automatic gasket cutting equipment with oscillating knife :
5. Specifications of automatic gasket cutting equipment with oscillating knife :
Technical parameters / model |
AOYOO-1625-ZS6 |
AOYOO-1825-ZS8 |
AOYOO-2125-ZS10 |
Accept special model customization |
||
Effective working area |
1600x2500mm |
1800x2500mm |
2100X2500 |
|||
Multi-head optional |
Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||||
Multi-function tool |
Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife |
|||||
safety devices |
Safety devices use infrared sensing, safe and reliable |
|||||
Cutting speed |
200-2000mm/s |
|||||
Cutting thickness |
≤50mm Other thicknesses can be customized according to the material |
|||||
Applicable materials |
Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material |
|||||
Material fixing method |
Vacuum partition adsorption |
|||||
Transmission port |
Network port |
|||||
Transmission system |

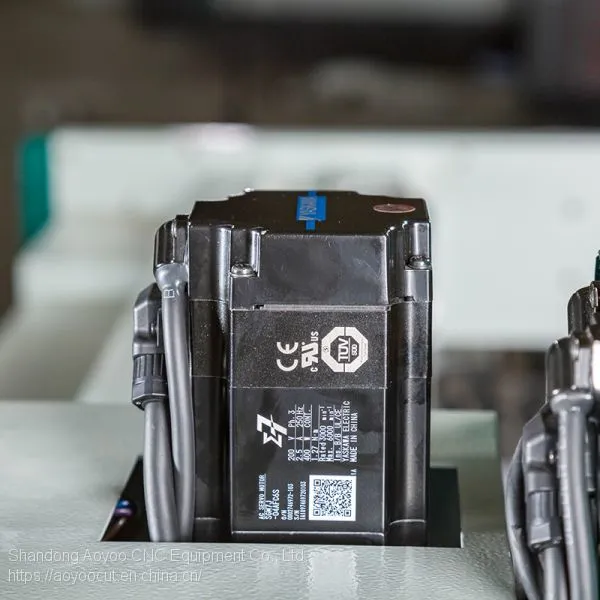

Yaskawa servo motor, linear linear guide, timing belt, lead screw |
|||||
rated power |
11kw |
|||||
Rated voltage |
380V±10%/220V±10% Optional |
|||||
Control System |
Chinese and English LCD touch screen |
|||||
Operating environment |
Operating environment Temperature 0-40°C Humidity 20%-80%RH |
|||||
Software |
Automatic nesting software, template entry software(Optional) |
|||||
Support file format |
AI,PLT,DXF,CDRetc |
|||||
Overall size |
3570x2290x1165mm |
3570x2500x1165mm |
3570x25800x1165mm |
|||
6. Our Service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Our official website:
7. FAQ
1.What is the warranty and quality of this machine?
Warranty normally 1-3 years, consumable except. during warranty period any accessories or parts damaged will replce by us for free.
We are machine manufacturer in china more than 10 years,Our machine are senior engineers and designers developed, we consider any one aspect when using, so rarely appear quality problem, this is why we can gurantee customers warranty 1 years.
2.What is the Price and payment terms?
EXW,CIF,FOB we all can accept
payment:TT/Paypay/LC/Western Union.etc
3.Delivery time
Some small machine will delivery within 1 day, big machine will deliver within 3-5 days
4.Don't know how to use
We can provide before and after sales service to customers,
before ordering,we can send video online to help customers understand how to use
When producing, we will send pics and video to remind customers should pay attention to some details
when delivery the machine we will send the english service manual together
After receiving the machine,any problem of machine customers face will solved by sales manager or engineers
Please feel free to contact us, we will reply within 24h!
About automatic gasket cutting equipment with oscillating knife we want to know:
1.What materials do you need to process?
2.The size and thickness of the material?
