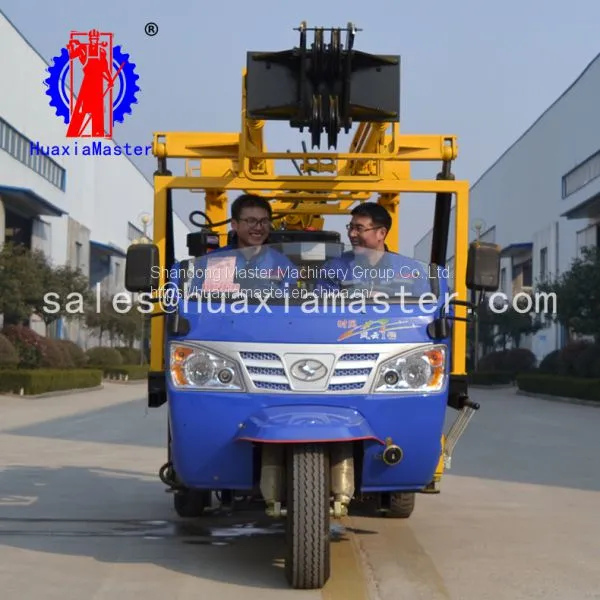

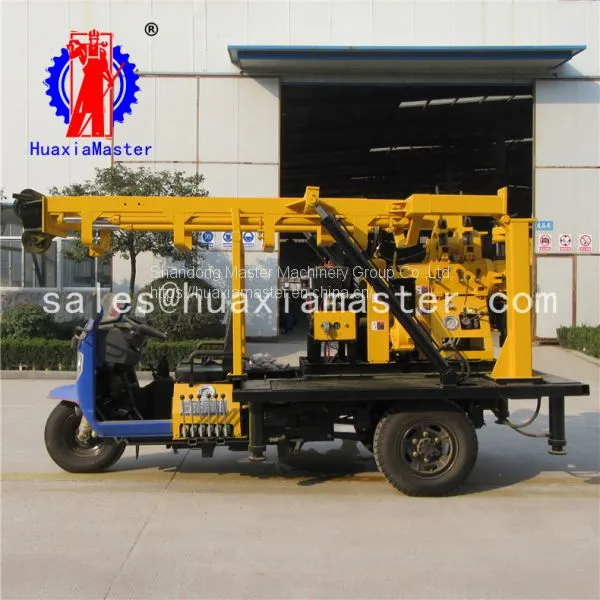

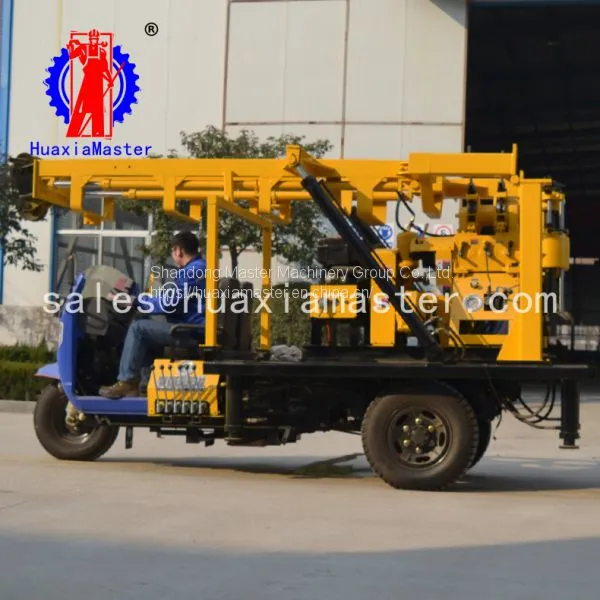

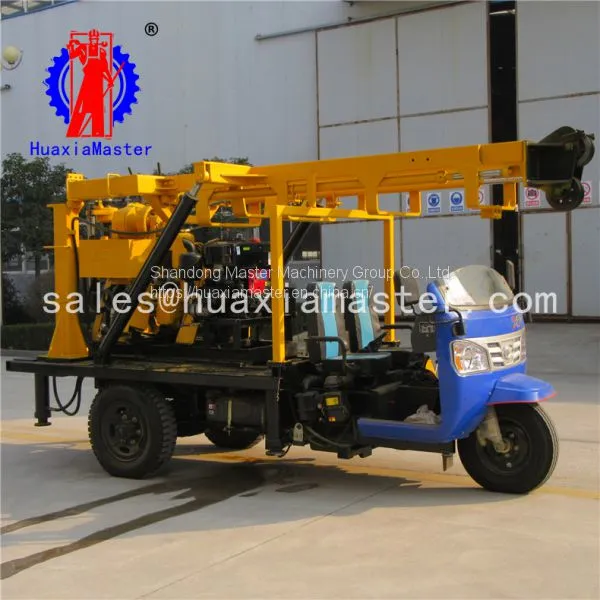

XYC-200A tricycle-mounted water well drilling rig
1. Characteristics of XYC-200A tricycle-mounted water well drilling rig
· XYC-200A tricycle-mounted water well drilling rig is multi-functional hydraulic vehicle-mounted water well drilling rig.
· The tricycle is tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
· XYC-200A tricycle-mountedwater well drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
· The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
· The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
· The rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
· Equipped with taper clutch, made the machine easy to operate and free of maintenance.
· Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
· Vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.
2. Technical specification of XYC-200A tricycle-mounted water well drilling rig
Drilling depth |
200m |
Max. open hole diameter |
75-260mm |
End hole diameter(mm) |
75 |
Drill rod diameter |
50mm |
Drilling tower height |
6500mm |
Drilling angle |
90-75 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. single line hoisting capacity |
1600kg |
Single line lifting speed |
17/35/75/151r/min |
Tightrope diameter |
12.5mm |
Tightrope cubic measure |
35mm |
Hug floodgate belt width |
70mm |
Mud Pump | |
Type |
Horizontal Single Urn Twin-action |
Discharge displacement |
170l/min. |
Diesel |
S1115 22HP |
Electric motor |
15kw,1440r/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Water inlet diameter |
30mm |
Water outlet diameter |
25mm |
Triangle conveyre belt |
B1728mm |
Chassis |
Tricar（Pictures of vehicle-mounted drilling rigs for reference only） |
