XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well

XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well thumbnail-1
XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well thumbnail-2
XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well thumbnail-3
XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well thumbnail-4
XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well thumbnail-5
XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well photo-1

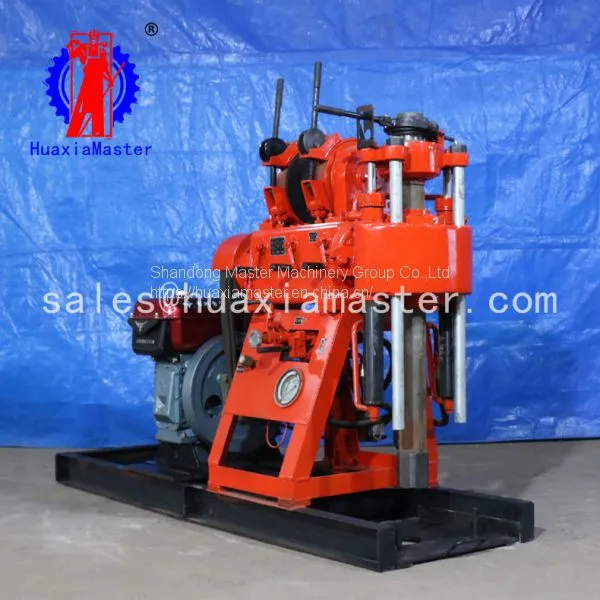

XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well photo-2

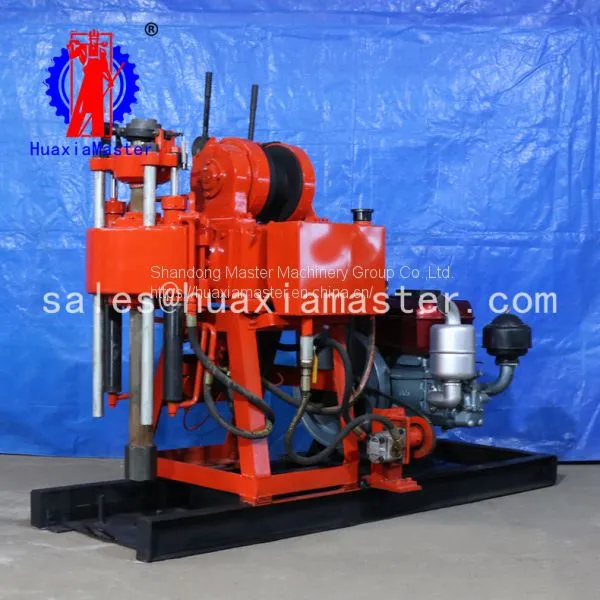

XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well photo-3

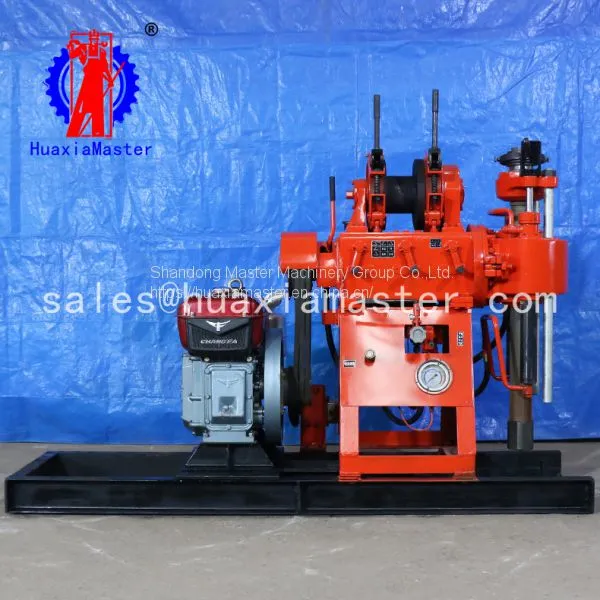

XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well photo-4

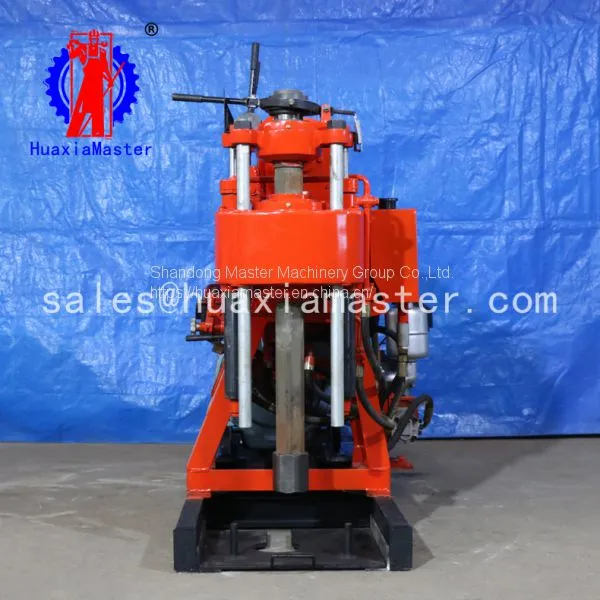

XY-200 Hydraulic Drilling Rig 200 m Core Sampling Drilling Rig Geological Exploration Drilling Water Well photo-5
US$ 6200 - 6900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
XY-200
Contact Supplier Request Quote Chat Now
Shandong Master Machinery Group Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name huaxiamaster
Place of Origin China
Model Number XY-200
Type Rotary Drilling Rig
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 months
Power Type Diesel
Usage Water Well
Condition New
Power(W) 14.7kw

XY-200 hydraulic water well drilling rig

1. Applications of XY-200 hydraulic water well drilling rig

Wells, geological survey, geophysical exploration, road and high-rise building foundation exploration, blasting holes and other drilling projects.

1. Parameters of XY-200 hydraulic water well drilling rig

Maximum opening diameter

400mm

Maximum borehole depth

200m

Diameter of the end hole

75mm

Borehole dip angle

90-75°

Machine overall size

2.75*0.95*1.60m

Drill pipe diameter

50mm

Weight of drill rig diameter of drill pipe (without power)

760kg

A vertical scroll of painting

Shaft rotation speed

71/142/310/20r/min

Vertical axis stroke

450mm

Windlass

Maximum lifting weight of single rope

2008kb

Drum lifting speed

17/35/75/160 rm/s

Wire rope diameter:

13mm

Wire rope capacity

35mm

Width of sluice

70mm

Mud pump

Type: horizontal single cylinder double action

flow：180L/min

Maximum pressure

1.5mpa

Working pressure

0.7mpa

Inlet size

50mm

Outlet pipe diameter

45mm

Power

Diesel oil

22hp

Rated speed

2200r/min

Electric machinery

15kw

Rated speed

1460r/min
