XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas

XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas thumbnail-1
XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas thumbnail-2
XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas thumbnail-3
XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas thumbnail-4
XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas thumbnail-5
XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas photo-1

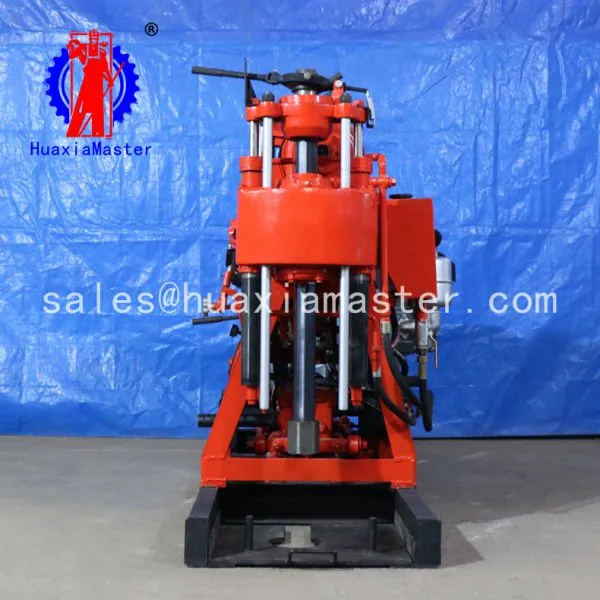

XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas photo-2

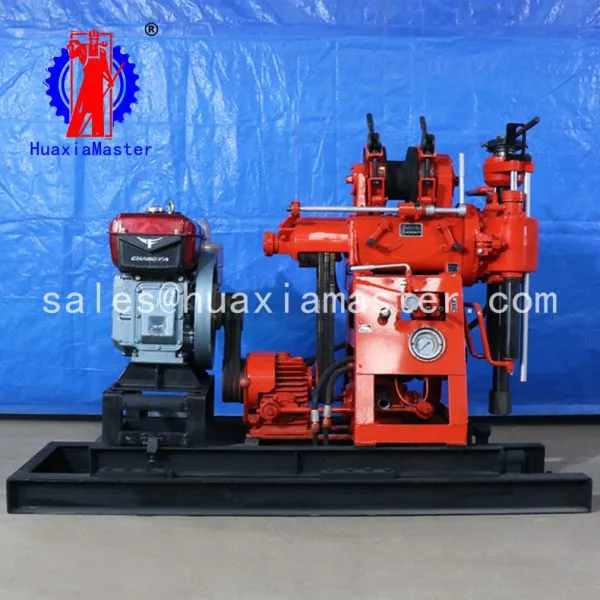

XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas photo-3

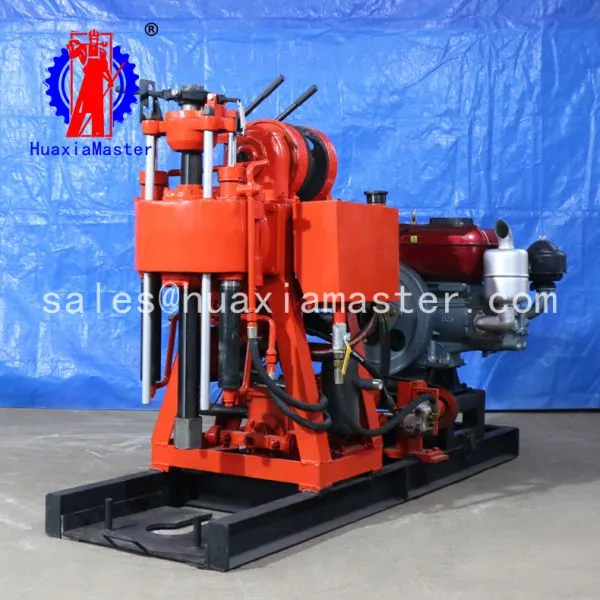

XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas photo-4

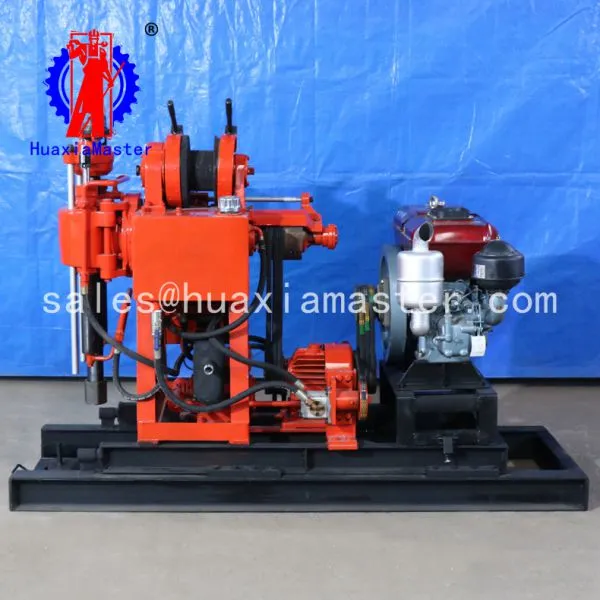

XY-100 Hydraulic Water Well Drilling Rig/Small Well - Drill Machines Are Used in Rural Areas photo-5
US$ 4890 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxiamaster
Place of Origin:
China
Model Number:
XY-100
Contact Supplier Request Quote Chat Now
Shandong Huaxia Machinery Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxiamaster
Place of Origin China
Model Number XY-100
After-sales Service Provided No overseas service provided

XY-100 hydraulic water well drilling rig

1.Applications of XY-100 hydraulic water well drilling rig

XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2.Specifications of XY-100 hydraulic water well drilling rig

Drilling depth

110

Maximum open hole caliber

220mm

End hole caliber

75mm

Drill rod caliber

50mm /42mm

Drilling angle

90

Drilling rig weight (exclude diesel engine)

610kg

Unity machine dimensions

2.1*0.9*1.3m

Spindle

Spindle speed

130/300/480/730/830/1045 r/min

Spindle stroke

 450mm

Hoist

Max. lifting capacity with single rope

1600kg

Lifting speed with single rope

1.06/0.67/0.32 m/s

Wirerope caliber

13mm

Wirerope cubic measure

35mm

Hug floodgate caliber

254mm

Hug floodgate belt width

50mm

Distance between drill and hole

230mm

Mud pump

Type

Horizontal single-urn twin-action

Displacement (with diesel engine/electric motor)

170l/min

Max. pressure

1.5mpa

Work pressure

0.7mpa

Power

Diesel engine

S1100

Electric motor

Y160M-4 / 10KW








Product Tags: hydraulic water well drilling rig , Small well - drill machines are used in rural areas
