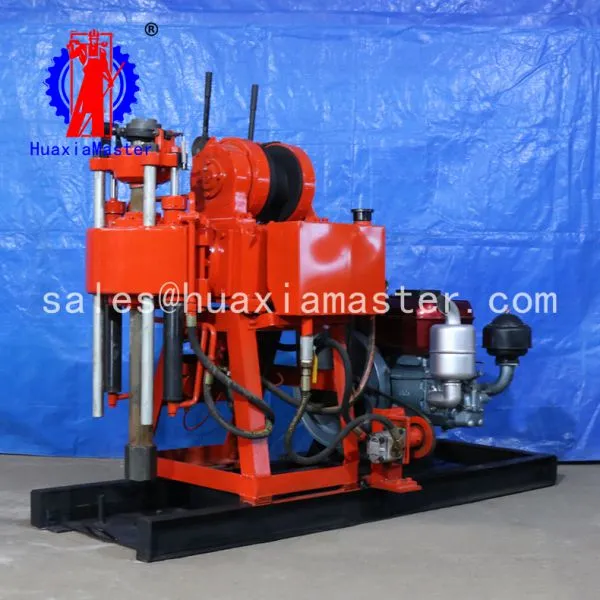

Drill Equipment XY-200 Hydraulic Water Well Drilling Rig/Crawler Will Walk Oil Pressure to Give Strength photo-2

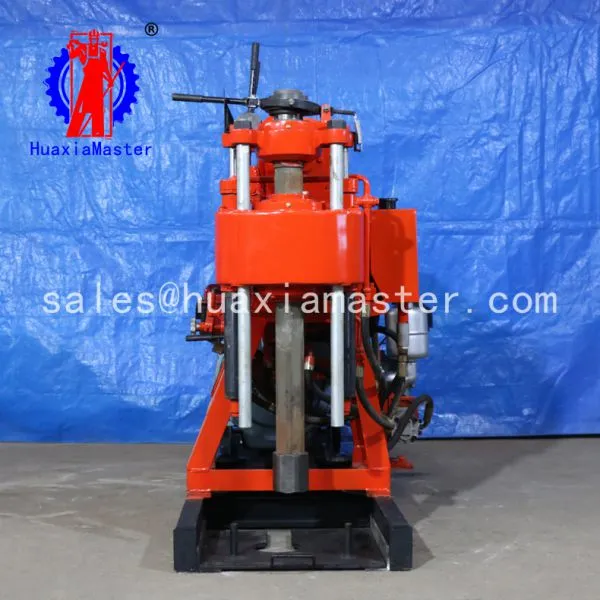

Drill Equipment XY-200 Hydraulic Water Well Drilling Rig/Crawler Will Walk Oil Pressure to Give Strength photo-3

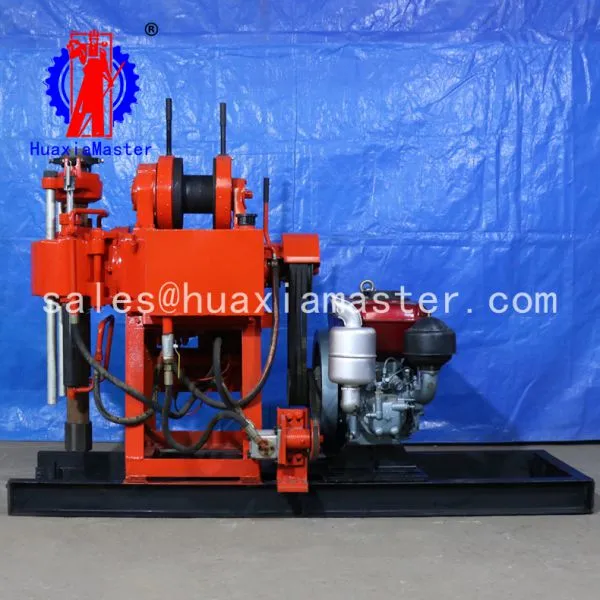

Drill Equipment XY-200 Hydraulic Water Well Drilling Rig/Crawler Will Walk Oil Pressure to Give Strength photo-4

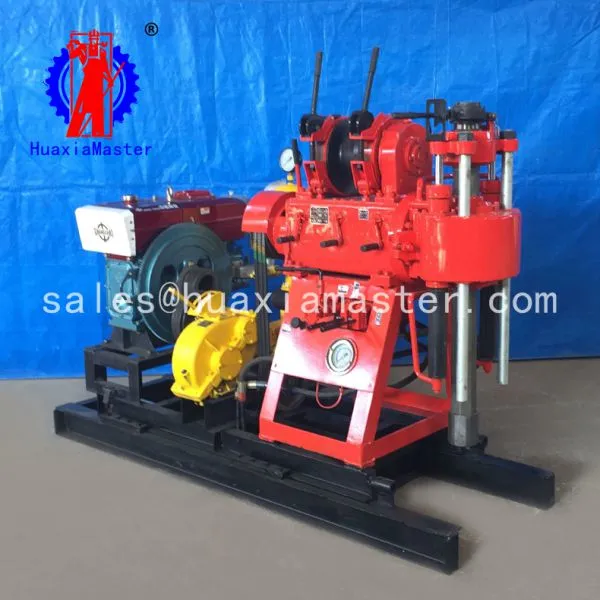

Drill Equipment XY-200 Hydraulic Water Well Drilling Rig/Crawler Will Walk Oil Pressure to Give Strength photo-5
US$ 6920 - 7000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxiamaster
Place of Origin:
China
Model Number:
XY-200
Contact Supplier Request Quote Chat Now
Shandong Huaxia Machinery Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxiamaster
Place of Origin China
Model Number XY-200
After-sales Service Provided No overseas service provided

XY-200 hydraulic water well drilling rig

1. Applications of XY-200 hydraulic water well drilling rig

Wells, geological survey, geophysical exploration, road and high-rise building foundation exploration, blasting holes and other drilling projects.

1. Parameters of XY-200 hydraulic water well drilling rig

Maximum opening diameter

400mm

Maximum borehole depth

200m

Diameter of the end hole

75mm

Borehole dip angle

90-75°

Machine overall size

2.75*0.95*1.60m

Drill pipe diameter

50mm

Weight of drill rig diameter of drill pipe (without power)

760kg

A vertical scroll of painting

Shaft rotation speed

71/142/310/20r/min

Vertical axis stroke

450mm

Windlass

Maximum lifting weight of single rope

2008kb

Drum lifting speed

17/35/75/160 rm/s

Wire rope diameter:

13mm

Wire rope capacity

35mm

Width of sluice

70mm

Mud pump

Type: horizontal single cylinder double action

flow：180L/min

Maximum pressure

1.5mpa

Working pressure

0.7mpa

Inlet size

50mm

Outlet pipe diameter

45mm

Power

Diesel oil

22hp

Rated speed

2200r/min

Electric machinery

15kw

Rated speed

1460r/min






Product Tags: Drill equipment , hydraulic water well drilling rig , Crawler will walk oil pressure to give strength
