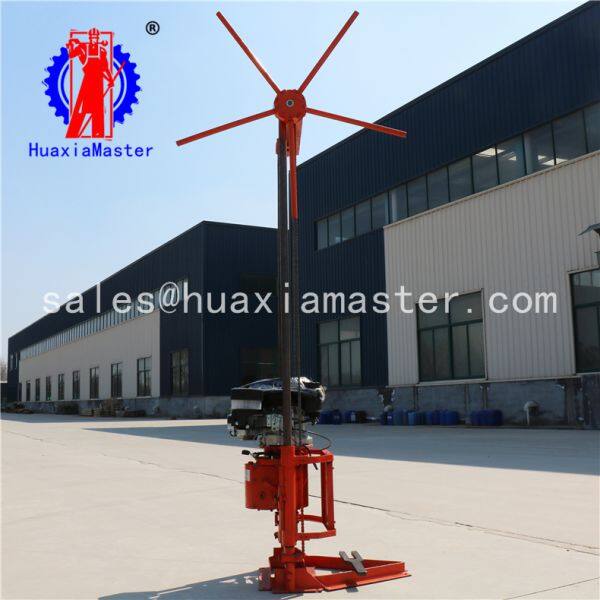

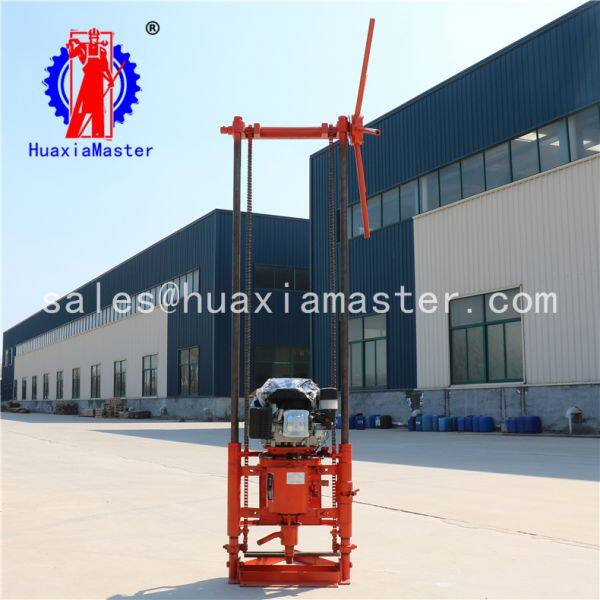

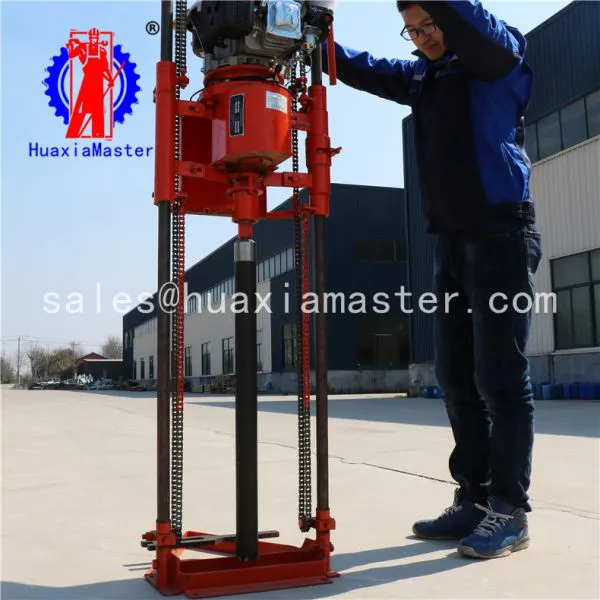

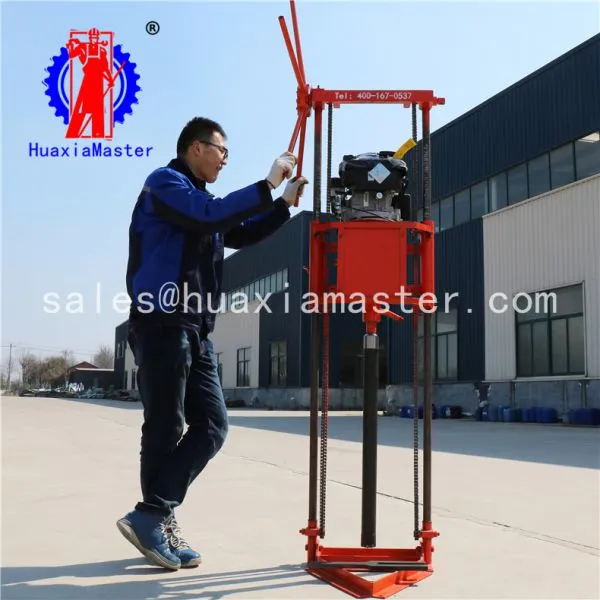

Huaxiamaster Sale QZ-2B Gasoline Engine Sampling Drilling Rig Portable Gasoline Exploration Rig Can Drill 20m Depth

Name: Huaxiamaster Sale QZ-2B Gasoline Engine Sampling Drilling Rig Portable Gasoline Exploration Rig Can Drill 20m Depth
Brand: HuaxiaMaster
Availability: InStock

FOB Price

US$ 4500 - 5000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	QZ-2B	Type	Core Drilling Rig
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	one year	Weight	90
Dimension(LWH)	6004501900	Power Type	Diesel
Voltage	220	Usage	Coal
Condition	New	Power(W)	5 (3.5kw)

Product Description

1.Brief introduction of portable sampling drill rig for QZ-2B gasoline engine

QZ-2B type gasoline engine portable sampling drill produced by Shandong Master Machinery Group Co.,Ltd suit for geological industrial and civil buildings, bridges, railway, highway, hydropower industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole, check out small household wells.

QZ-2B drilling rig feature: compact structure、small volume、light weight、two gears、easy move.

2.QZ-2B gasoline core drilling rig parameter

QZ-2B
End hole caliber (mm)		32-91
Drilling depth（m）		soil φ91：10-15m tone φ91：5-10m stone φ75：10-15m stone φ60：15-20m stone φ46：20-25m
Diameter of drill rod(mm)		30
Rotating speed（r/min）		200-570
Torque（n.m）		110
Gasoline engine	Soup(hp）	5 (3.5kw)
	Displacement（cc）	196
Dimension（lwh）		6004501900
Weight（kg）		90

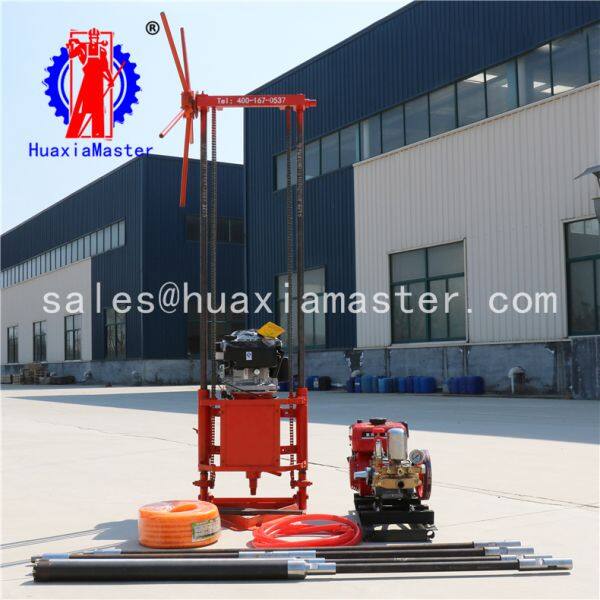

3.The packing list of QZ-2B portable sampling drilling machine with gasoline engine

Name	Model	Unit	Quantity
Gasoline core drilling rig	QZ-2B	set	1
Drill rod	φ28*1500	root	6
Drill rod	φ28*800	root	8
Pipe joint	Φ35	pcs	14
Core tube joint	φ45/35	pcs	1

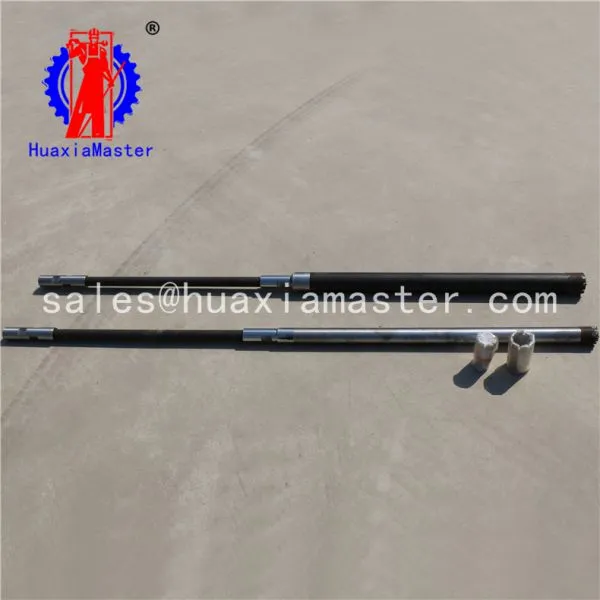

Core tube	φ45*800	root	1
Alloy bit	φ46	pcs	1
Core tube joint	φ58/35	pcs	1
Core tube	φ58*800	root	1
Alloy bit	φ60	pcs	1
Soil bit	Φ60	pcs	1
Plate fork		hold	1
Water seal type	305010	pcs	4
Oil seal	305010
Oil seal	175010
Steering wheel		pcs	1

（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
