Home > Transportation > Trailer Parts > Trailer Suspension > Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport

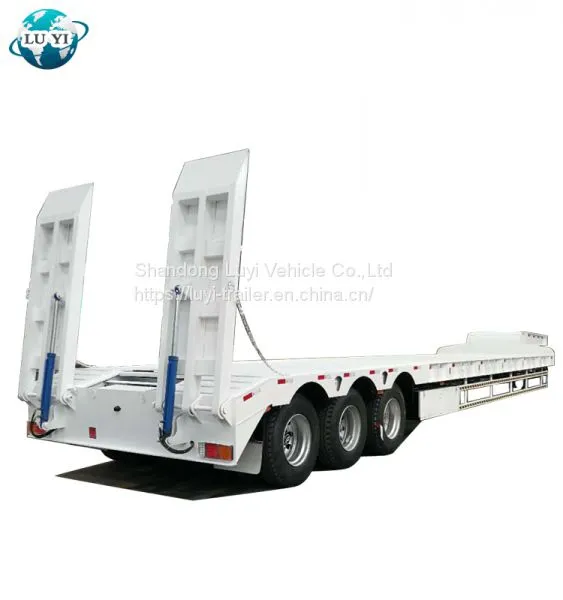

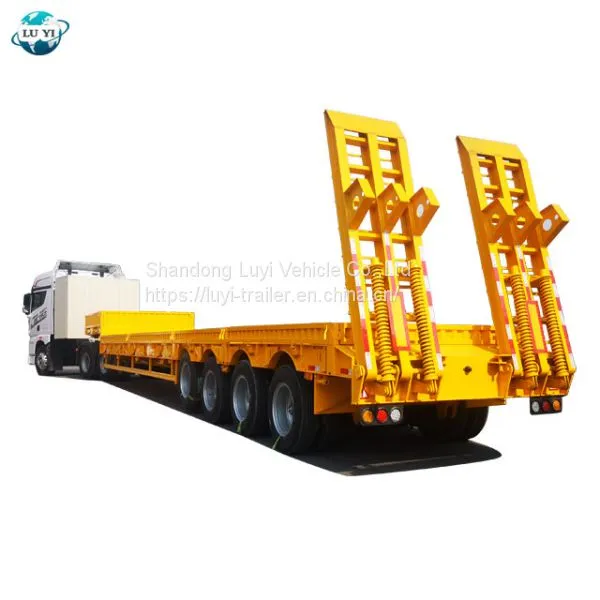

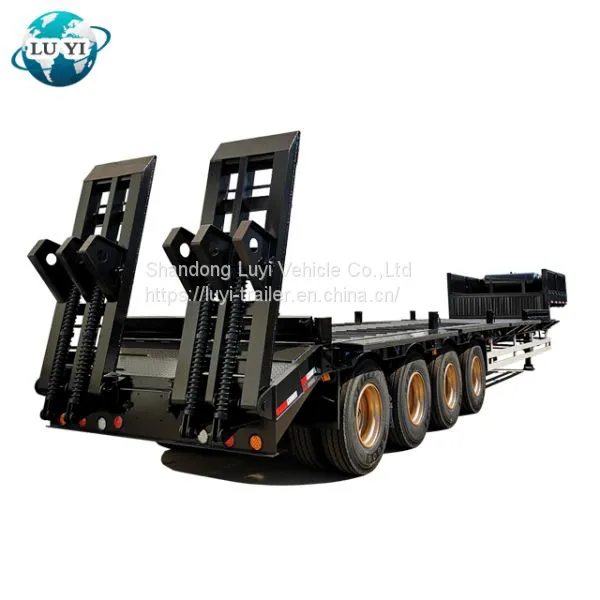

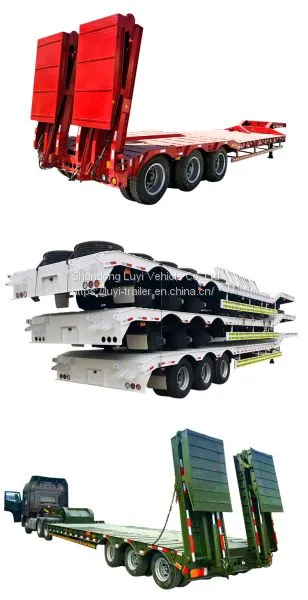

Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport

Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport thumbnail-1
Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport photo-1
US$ 14500 - 16000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
lUYI
Place of Origin:
China
Model Number:
LY9020
Contact Supplier Request Quote Chat Now
Shandong Luyi Vehicle Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Lianyungang
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name lUYI
Place of Origin China
Model Number LY9020
Size 14400*3000*1550 mm
OEM No. 82364
Max Payload 70 ton
Parts Trailer Axles

Product parameters

Heavy Duty Machinery Transport Lowbed Truck Semi Trailer
Model LYLD02
Dimension(Optional) Axle No. Rated Load (ton) Tire No. Tire Size
Custom-made External size Standard LengthxWidthxHeight is 14400*3280*(700mm-2800mm) 1 20 4 8.25R20/8.25R16/11.00R22.5       12.00R22.5/10.00R20/11.00R20 /12.00R20 (Other Size / Single Super Tire Contact with Supplier)
2 40 8
3 60 12
4 80 16
5 100 20
Manufacturer Shandong Luyi Vehicle Co., Ltd
Wheel Base  (mm) 7180/6680/6260+1310+1310mm,Or other
leaf-spring Pcs 8/8/8, 10/10/10, 12/12/12 pieces per axle
Axle 13/16/18 T
Suspension Heavy Duty Mechanic Suspension with Leaf Springs
Rim 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
Ladder Manual or hydraulic automatic
Main Beam Material Q345B manganese plates, automatic submerged arc welded
Brake System Dual line braking system with automatic braking system
Brake Air Chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tanks
King pin JOST brand ;2' or 3.5' Interchangeable
Landing gear 28T loading capacity with 80T static lifting capacity.
Platform 5/6/7 mm Diamond Plate
Brake System Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber Four double and two single chamber
Light Tail lamp with turn signal,brake light,reflector,side lamp etc
Electrical System 24V, 7core socket, One set 7-core standard Cable
Main beam Size Upper plate 14mm-25mm
Down plate 6mm-25mm
Mid Web 8mm-12mm
Height 500-520mm
Side beam Size 16mm-25mm channel steel
Tool Box 1 box of standard tools
Spare tire carrier 2 sets (Patent type)
Color and Logo Custom-made
Pin Height According to the height of the tractor saddle.
Painting Complete Chassis sand blasting to clean rust;3 coats painting:1 coat of anticorrosive prime, 2 coats of final paint;
Packing Polish with wax before shipping
Optional spare parts Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince.


1. Lowbed semi trailer Suitable for road construction equipment, large tanks, heavy machinery;
2. Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
3. Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
4. Semi trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs;

5. Reduced center of gravity, ensuring transport stability and safety, through overhead obstacles,high efficiency;



LUYI trailers are one of the most popular trailer types and include various trailer types. These tractor trailer types include:

  • Box trailer

  • Curtain sider trailer

  • Semi dump trailer

  • Flatbed trailer

  • Refrigerated trailer


ABOUT US


Shandong Luyi Vehicle Co.,Ltd ,Is a professional trailer manufacturer with an export qualification of China

the ministry of commerce. Luyi Vehicle main products are Flatbed,low bed,Tipper,Skeleton,Van,Sidewall,

Modular trailer, Fuel /bulk cement tanker,Special customized semi trailers and Construction machinery,Trailer spare parts, etc.



With more than 20 years manufacturing experience, Luyi has become a modernized enterprise with the integration of R&D, Design, Manufacture and Sales,with over 1080 employees, and covers an area of 390,000 square meters, total assets of $80M.We have first-class production equipment :CNC cutting-edge, Automatic welding ;Large bending , Jigsaw machine, Automatic tank welding , Shot peening , Swiss four-wheel positioning and high-precision testing equipment etc. with strict control for each process,Luyi have passed CE, TUV, ADR standard recognition ,LRQA certification,and other countries' approval.



“LUYI” brand trailer series have widely exported to Africa,the Middle East, Asia,East Europe and South America market, etc, and have set up 78 service outlets .LUYI being widely praised and trusted by home and abroad partners, such as Sinopec, Petrochina, Shell and Castrol,CNHTC,CIMC,etc.




Product Tags: hydraulic gooseneck lowbed lowboy semi trailer , heavy duty lowbed semi-trailers truck
