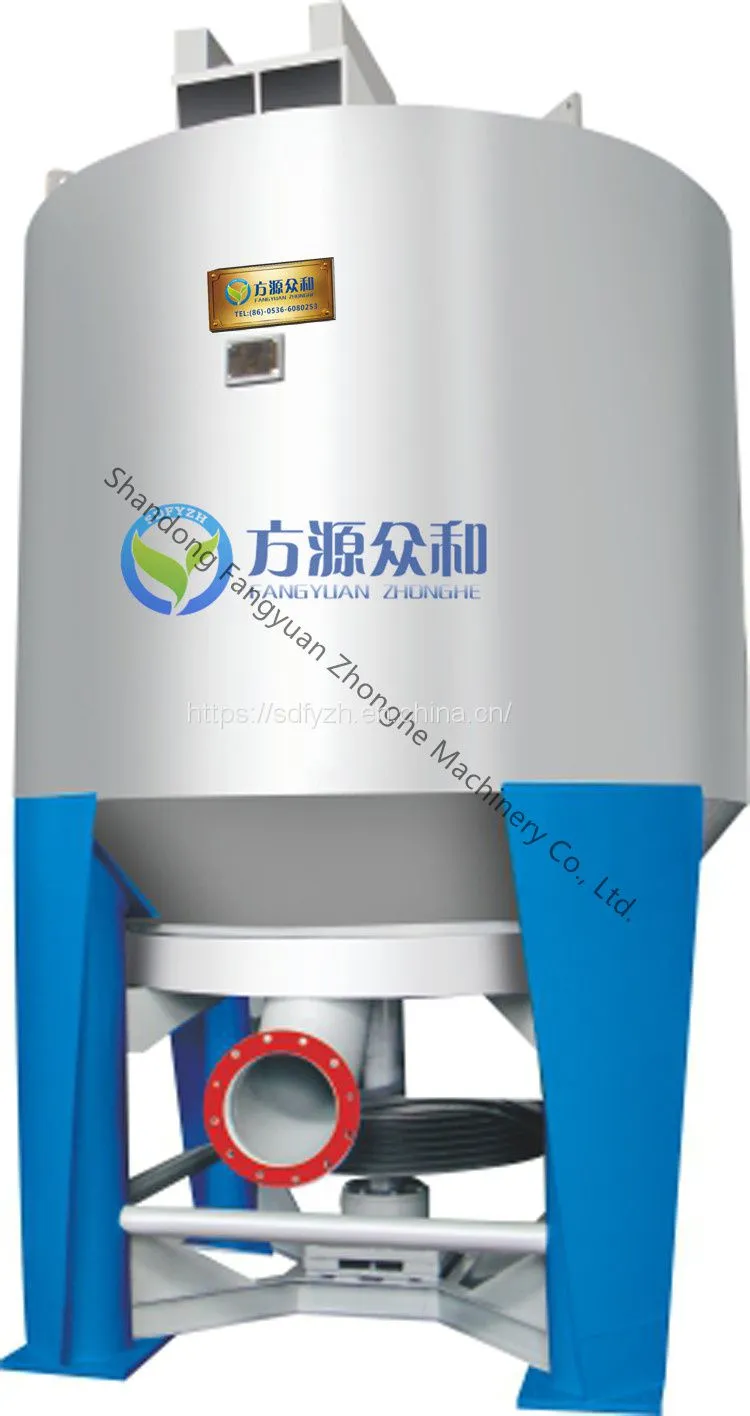

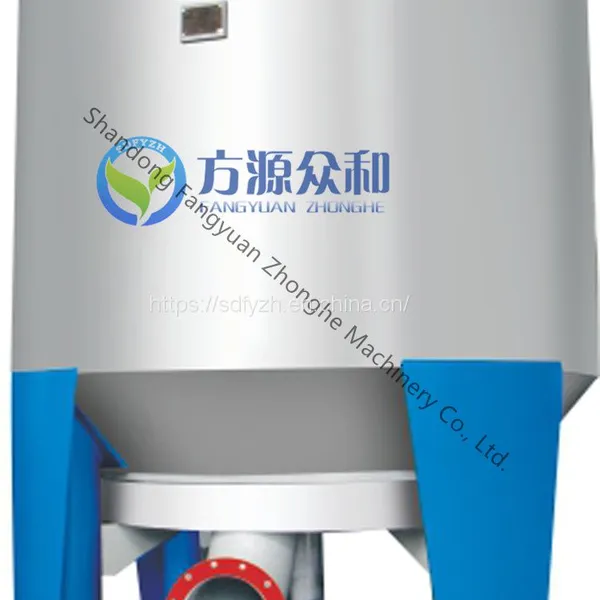

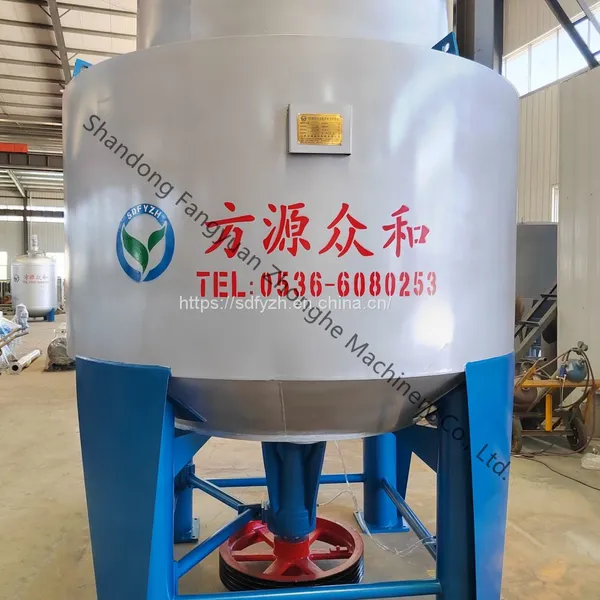

Paper Machinery Hydrapulper Machine for Recycling Waste Paper Pulp
- 0 Set / Sets per Month
- Qingdao Port, etc
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
- Wastewater Treatment Dissolved Air Flotation Separator
- Factory Price DAF Machine for Wastewater Treatment
- Double Disc Refiner Machine Waste Kraft Paper Recycling Process
- MBR Sewage Treatment for Domestic Wastewater Treatment Equipment Plant
- Full Automatic Tissue Paper Machine Production Line
- New Condition Double Disc Refiner for Paper Pulp Machine
Product Details
Brand Name: | Fangyuan Zhonghe | Place of Origin: | China | Model Number: | FZS |
Certification: | CE/ISO:9001 | Type: | Punching Machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | One Year | Weight: | 2-20T | Dimension(L*W*H): | As your choice |
Condition: | New | Voltage: | 380-415V/50-60HZ | Power(W): | 22-410KW |
Computerized: | No |
Product Description
The Vertical medium consistency hydrapulper has a working concentration of 6%-12% and high pulping efficiency.
In the work, the drive shaft drives the bottom plate and the spiral rotor to rotate strongly, and the slurry moves up and down along the spiral surface of the rotor, then it is thrown from the lower part of the rotor to the groove wall, and then along the groove wall, it is again subjected to the high strength eddy circulation in the process of the force movement of the knife plate and the rotor. All kinds of waste paper, box board, and commercial pulp board are turned up and down in FZS medium and high consistency hydrapulpermachine, circumrotating round, all azimuth height is constantly impacted, and continuous friction between the blade cutting tool and spiral winch blade, the pulp is completely dissolved into fiber, and the swelling can avoid cutting and damaging the fiber. The impurities such as plastic sheets, rubber sheets, etc. are broken less, and no debris will be formed.
Model | FZS-1 | FZS-2 | FZS-3 | FZS-5 | FZS-8 | FZS-10 | FZS-15 | FZS- 20 | FZS-25 | FZS-30 |
Nominal volume (m³) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 |
Capacity (t/d) | 3-6 | 5-11 | 9-12 | 13-18 | 20-30 | 30-45 | 45-60 | 60-80 | 90-120 | 120-150 |
Pulping concentration (%) | 6-12 | |||||||||
Power supply (kw) | 22 | 37 | 45/55 | 55/75 | 90/110 | 110/160 | 185/220 | 220/310 | 280/360 | 410 |
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Shandong Fangyuan Zhonghe Machinery Co., Ltd. (formerly Zhucheng Fangyuan Machinery Co., Ltd.) is the backbone enterprise specializing in the production of environmental-friendly pulp and papermaking equipment, tissue paper machine and sewage treatment equipment. The company is next to Qingdao free trade zone Zhucheng functional area. The main products include two categories, more than 50 series, sewage treatment equipment, pulp and papermaking equipment and crescent tissue paper machine. With the high technology content, it has reached the advanced level of the same industry in China.
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
A: We can give you guide by video, voice, email by all kinds of chatting APP
If there's still doubt, we can arrange the professional engineer to install in your country.
A: We have FZS-1, FZS-2,FZS-3, etc.
You can choose the model you need according to your parameters.
A: Normally as the export standard or as your needs
A: Qingdao port, etc.
Q6. Do you offer guarantee for the products?A: Yes, under the right condition, we can offer time warranty for our productsContact Us
