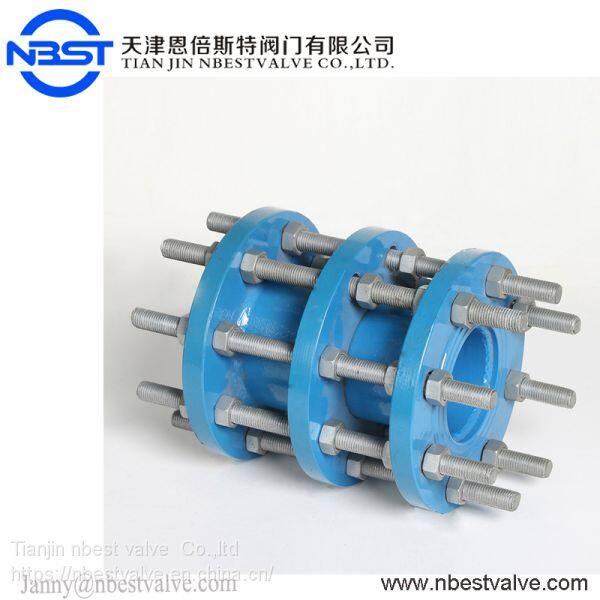

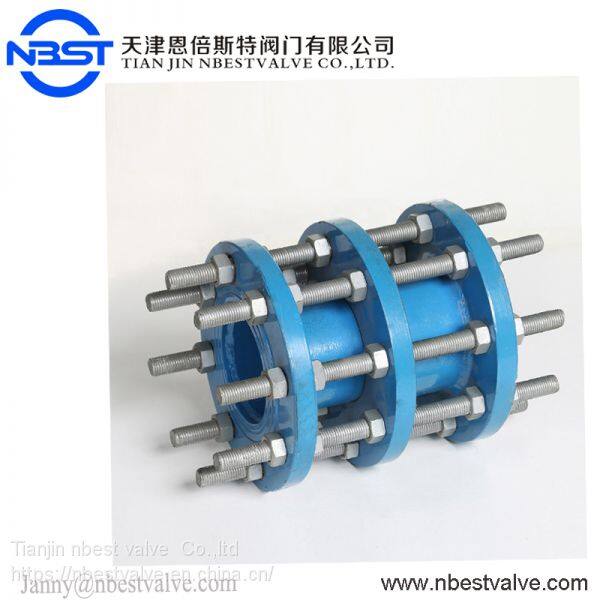

DN300 Valve Pipe Fittings Dismantling Joint Flexible Mechanical Ductile Iron

One.Product data:

Professional manufacturer Ductile iron valve pipe fittings flexible mechanical dismantling joint

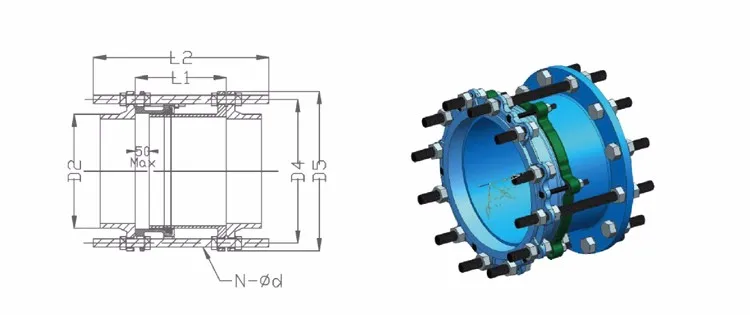

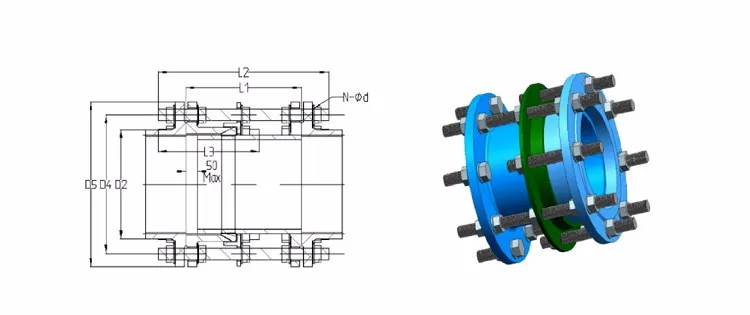

The dismantling joint which provides easy installation and disassembly of flanged pipework and fittings, or flanged equipment such as valves, meters and pumps, where a single tie-rod is required from the upstream to downstream sides of the pipe equipment installation. These fittings also allow for axial displacement of pipework during construction and are suitable for use with water, sewage and neutral liquids up to +70°C.

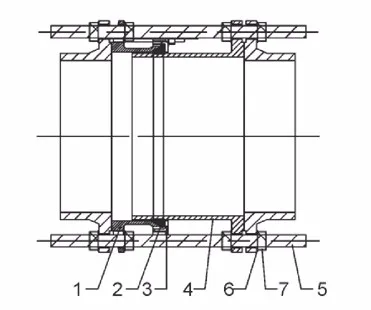

ITEM	NAME	MATERIAL	STANDARD
1	Flange pipe A	GGG50	EN1563
2	Gasket	EPDM	ISO4633
3	Gland	GGG50	EN1563
4	Flange pipe B	GGG50	EN1563
5	Bolts & nuts	Carbon steel	ISO898
6	Coating	EPOXY	BS 6920
7	Flange drilling	----	BS EN 1092

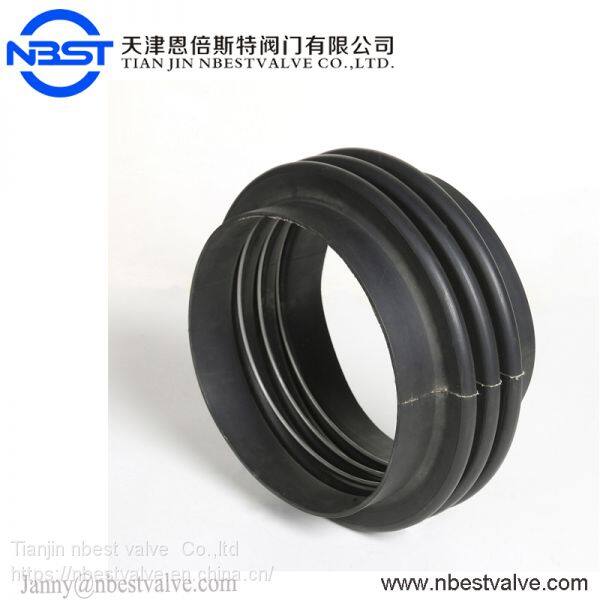

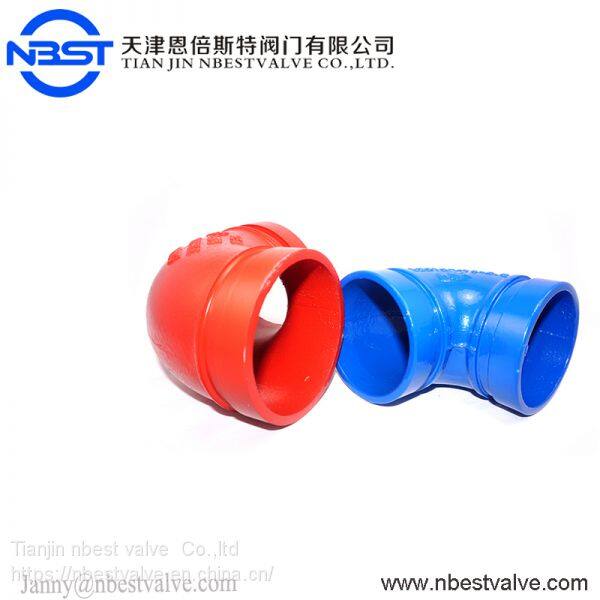

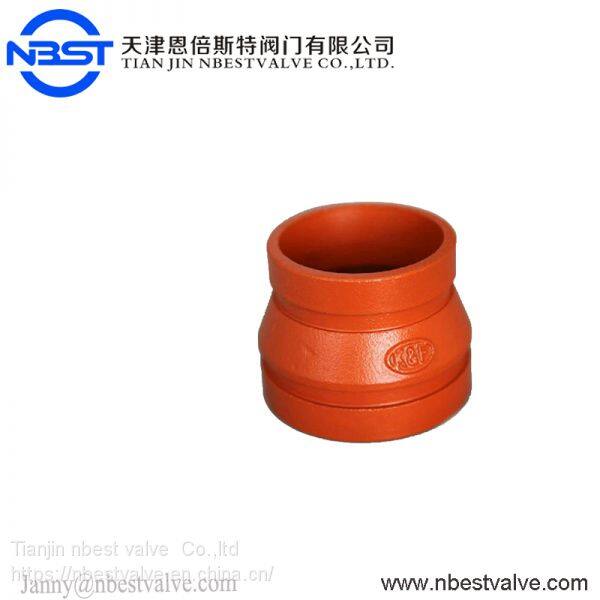

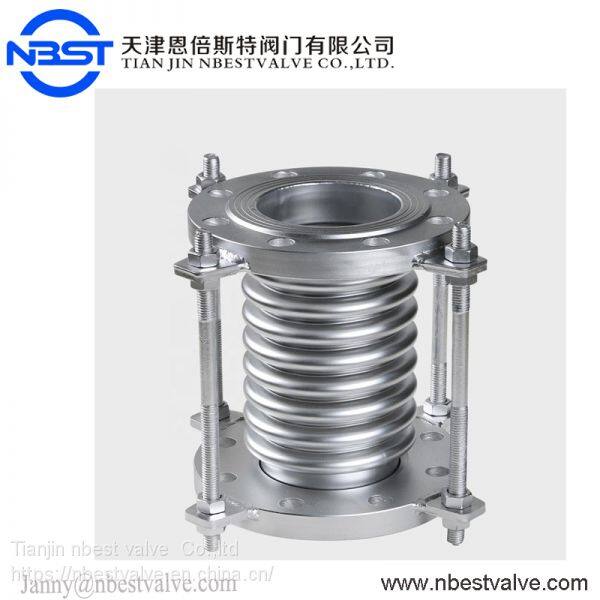

TWO.Related products

Three.Company profile

Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.

Four.Aplication Area

a. Domestic sewage treatment.

b. industrial wastewater treatment.

c. industrial irrigation treatment.

Five.Packing and Freight

Six.FAQ

Q: Are you trading company or manufacture?

A: We are factory located in Tianjin, China.

Q: What's your product range?

A: We specialize in product butterfly valves,solenoid valve, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.

Q: What's execution standard?

A: ISO/ANSI/DIN/JIS/EN/GOST standard.

Q: What's your strong product?

A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q: How long is your delivery time?

A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.

Q: What is your terms of payments?

A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
