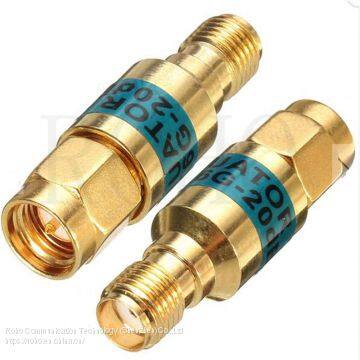

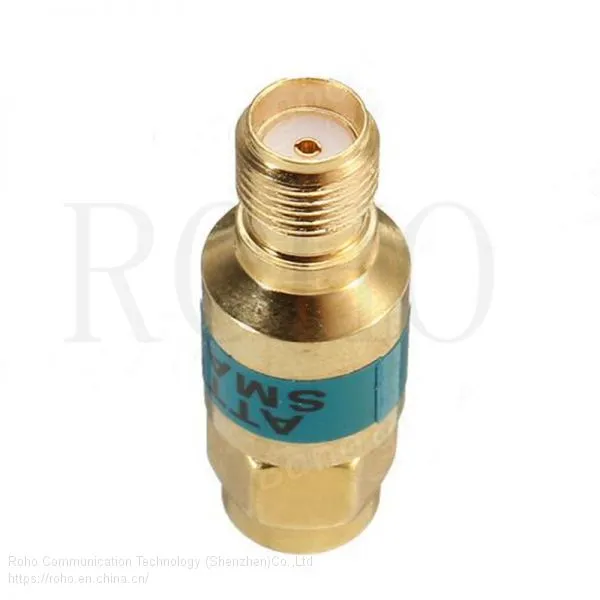

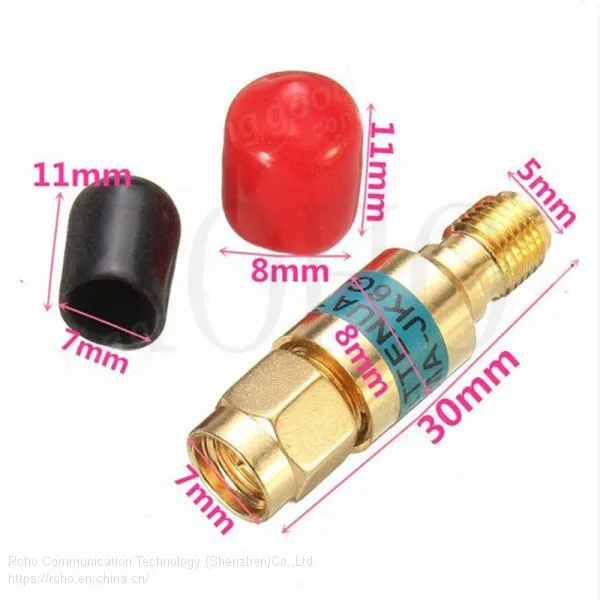

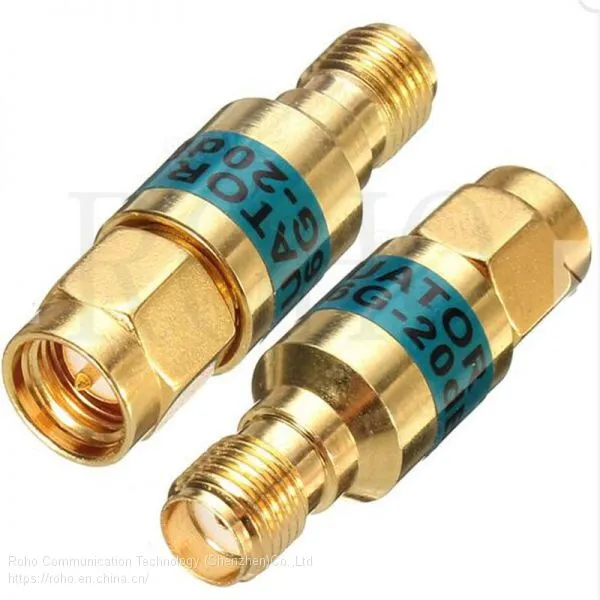

2W SMA-JK Male to Female RF Coaxial Attenuator 6GHz 50ohm 3dB Connectors
US$ 0.36 - 4.7
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Port of Shipment:
Shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
N Female Male RF Coaxial Connector for 1/2 Superflex Cable for CommunicationUS$ 0.47 - 4.75MOQ: 100 Pieces -
4 Hole Flange Straight N RF Coaxial Connector for BoardUS$ 0.27 - 2.75MOQ: 100 Pieces
-
Flange 4 Hole N RF Coaxial Connector for CableUS$ 0.27 - 2.75MOQ: 100 Pieces
-
4 Hole Flange RF Coaxial N Female Jack Connector for CableUS$ 0.27 - 2.75MOQ: 100 Pieces
-
Straight Male Plug Clamp RF Coaxial N Type Connector for 1/2′ ′ Superflexible CableUS$ 0.47 - 5.75MOQ: 100 Pieces
| ELECTRICAL DATA | ||
| Impedance &;Omega; | ||
| Frequency Range | DC 3--6GHz | |
| Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz | 4000 V rms,50Hz |
| Working voltage (at sea level) | 2500 V rms,50Hz | |
| Insulation resistance | ≥ 100000 mΩ | |
| Contact resistance | Inner conductor: ≤0.4mΩ | |
| Outer conductor: ≤1.5mΩ | ||
| RF leakage (at 1 GHz) | ≥128dB | |
| MECHANICAL DATA | ||
| Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs | |
| Proof torque: 35 Ncm / 310 in.lbs | ||
| Coupling nut retention force | ≥1000N / 225.0 lbs | |
| Contact captivation | ≥200N / 45.0 lbs | |
| Durability (matings) | ≥500 | |
| ENVIRONMENTAL DATA | ||
| Temperature range | -65°C to +165°C | |
| MATERIAL DATA | ||
| Bodies | Brass--ternary alloy plating | |
| Pin contacts | Brass--Au/Ag plating | |
| Socket contacts | Phosphor bronze / Beryllium copper--Ag plated | |
| Crimp ferrules | Copper--ternary alloy plating | |
| Insulator | PTFE | |
| Gaskets | Silicone rubber |
