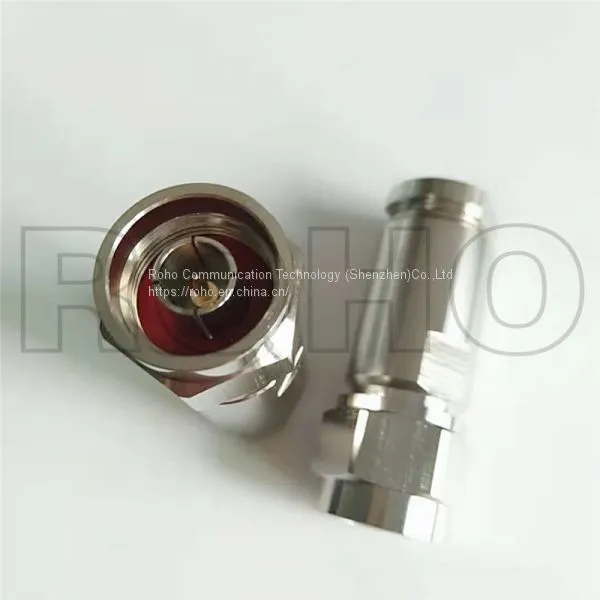

Help CenterN Compression Connector for RF Coaxial Cable Rg59 RG6 Rg11 (N043)
Related Products
-
4 Hole Flange N RF Coaxial Connector for BoardUS$ 0.27 - 3.75MOQ: 100 Pieces -
Male Crimp RF Coaxial N Plug Connector for Rg213 CableUS$ 0.57 - 6.75MOQ: 100 Pieces
-
Jack Female N RF Coaxial Connector for Rg316 58 CableUS$ 0.47 - 4.75MOQ: 100 Pieces
-
RF Plug Male N Coaxial Connector for CableUS$ 0.47 - 4.75MOQ: 100 Pieces
-
RF Coaxial Male Clamp N Connector for Rg58 CableUS$ 0.57 - 6.75MOQ: 100 Pieces
ELECTRICAL DATA |
|
Impedance |
50Ω |
Frequency range (for connector interface) |
DC～18GHz |
Dielectric withstanding voltage (at sea level) |
≥750-1500V,50Hz (depending on cable) |
Working voltage (at sea level) |
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M) |
Insulation resistance |
≥ 5000 mΩ |
Contact resistance |
Inner conductor: ≤3mΩ |
Outer conductor: ≤2.5mΩ | |
RF leakage(2-3GHZ) |
Flexible: ≥60dB |
Semi-rigid cable: ≥100dB | |
MECHANICAL DATA |
|
Coupling nut torque |
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs |
Coupling nut retention force |
≥270N / 60.7 lbs |
Contact captivation axial |
≥27N / 6.1 lbs |
Durability (matings) |
≤500 |
ENVIRONMENTAL DATA |
|
Temperature range |
-65°C to +165°C |
MATERIAL DATA |
|
Bodies, outer contacts |
Beryllium copper--Au plating |
Stainless steel--Passivation | |
Brass--Au plated / ternary alloy plating | |
Phosphor bronze --Au plating | |
Pin contacts |
Brass/Beryllium copper--Au plating |
Socket contacts |
Beryllium copper / Phosphor bronze--Au plating |
Crimp ferrules |
Brass--Au plating |
Insulator |
PTFE |
Gaskets |
Silicone rubber |
