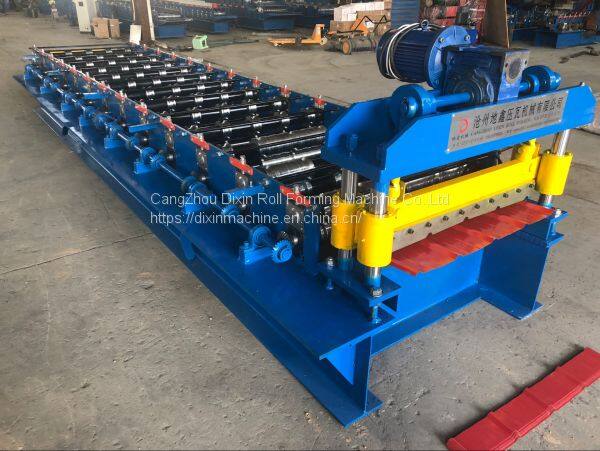

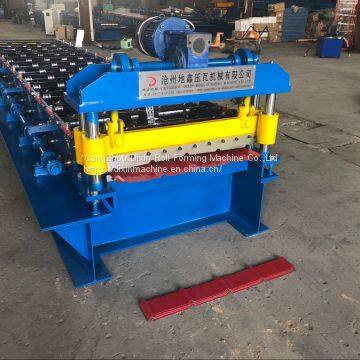

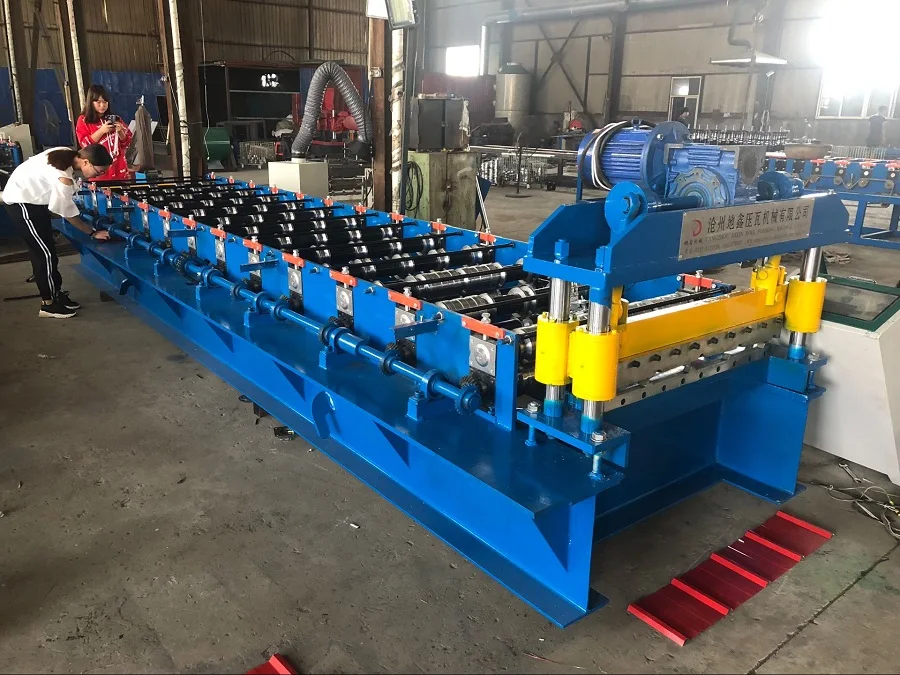

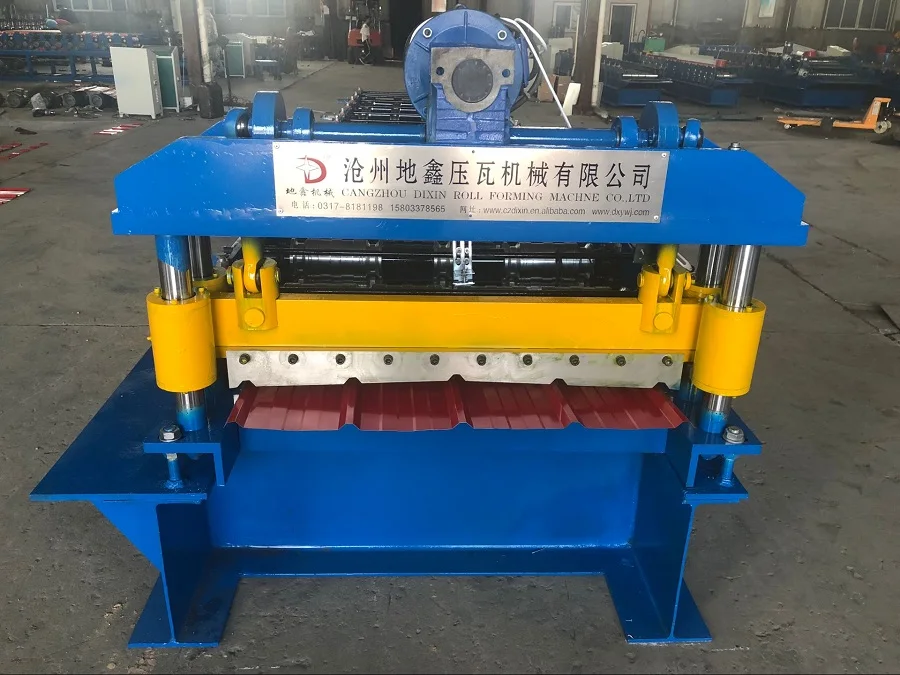

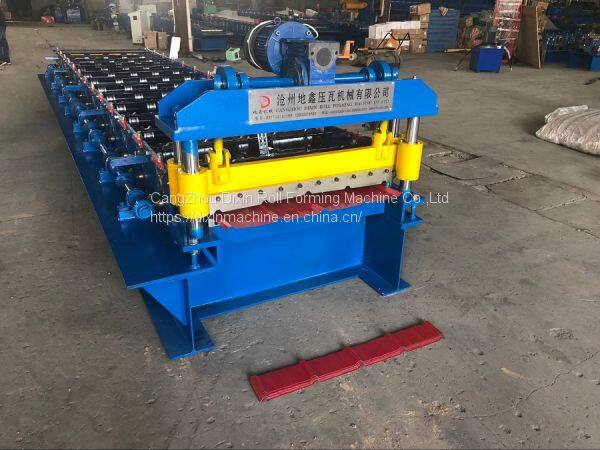

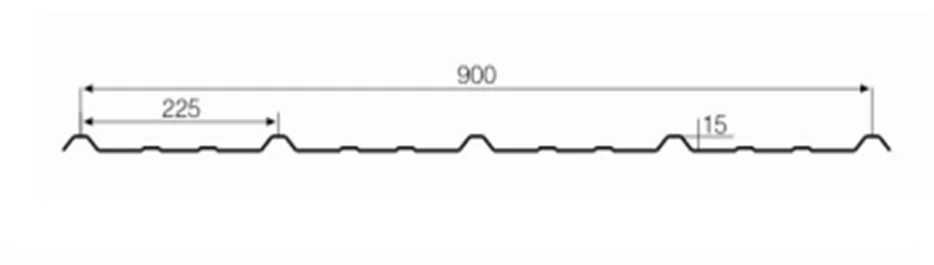

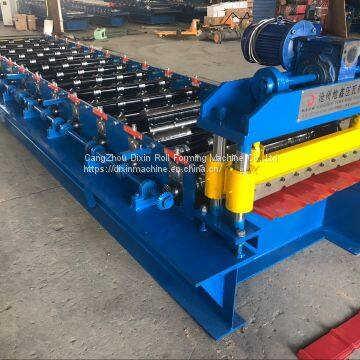

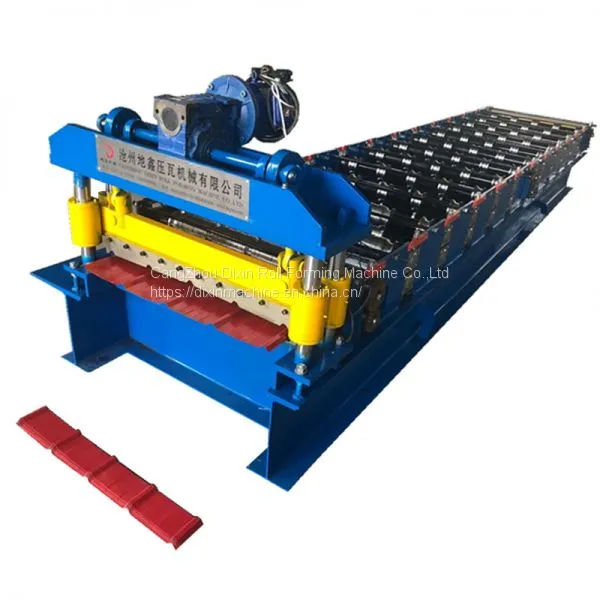

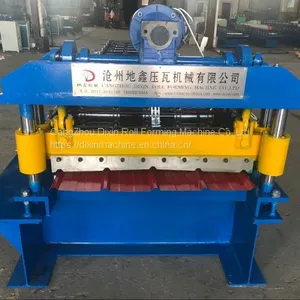

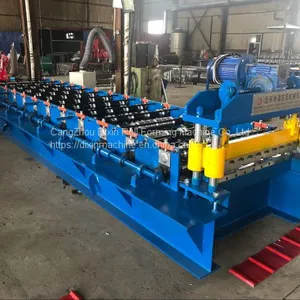

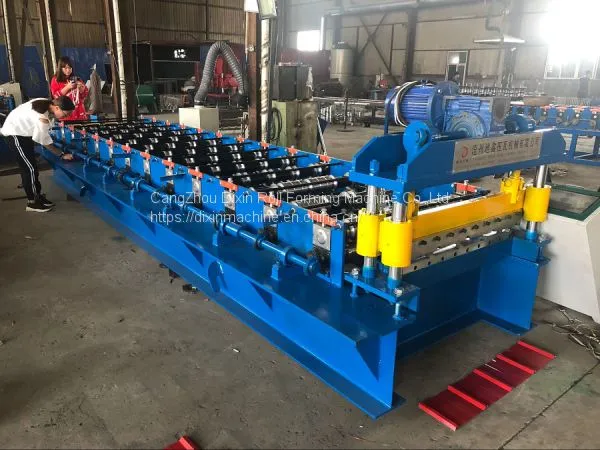

Low Price Full Automatic Trapezoidal roofing panel sheet roll forming machine

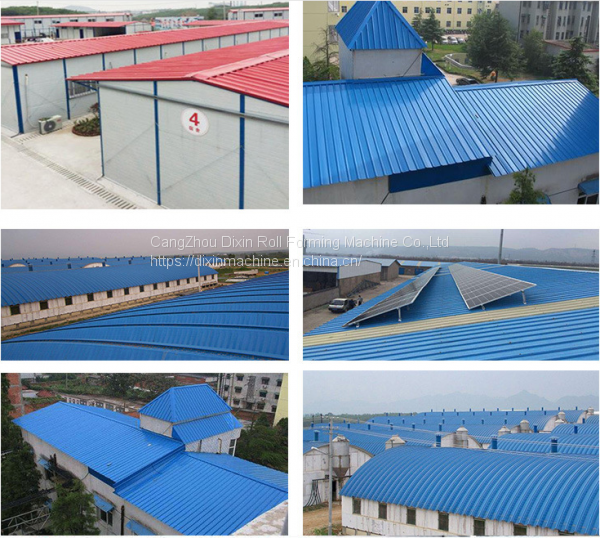

This kind of pressure tile is dignified and elegant , beautiful novel and the aooerance of smooth, corrugated uniform , high utilization rate, high intensity, and produce a high degree of automation, low cost, durable . Products are widely used in large and medium-sized enterprises and civil buildings, such as workshop, engine garages, hangar, sports venues, exhibition halls, theaters and other.
We use the best quality raw materials, so you can trust our quality.Machines are not only economical in price, but also guaranteed in quality.
| Frame Structure | Steel Plate Welded |
| Roller Flatting System | let the feeding fluently |
| Installation Dimension | 8500mm*1400mm*1500mm |
| Machine Under Frame | 350H-beam |
| Sidewall Plate Thickness | 16mm |
| Roller Stations | 11/16Steps |
| Shaft Diameter | 70mm |
| Main Shaft Material | 45# steel with finish turning ; |
| Roller Material | 45# Forging Steel with Chromium Plate; |
| Chromium Plate Thickness | 0.05mm |
| Motor Power | 3/5.5kw |
| Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
| Chain Wheel and Cycle Chain | 1 Inch |
| Roll forming Speed | 15-20m/min (adjusted with frequency changer). |
| Frequency Converter | Delta |
| Voltage | 3phase/380V/50Hz (For confirmation ) |

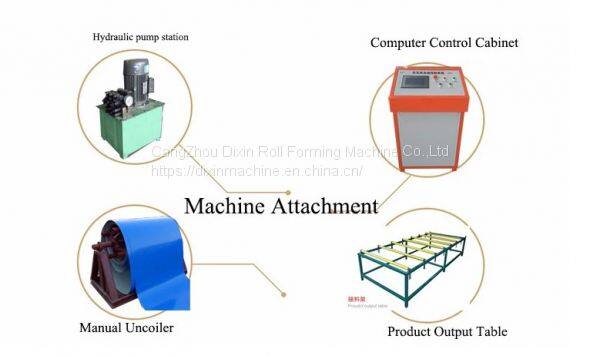

| Hydraulic Pump Station | 3Kw |
| Cutting Length Tolerance | 10m ±1mm; |
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

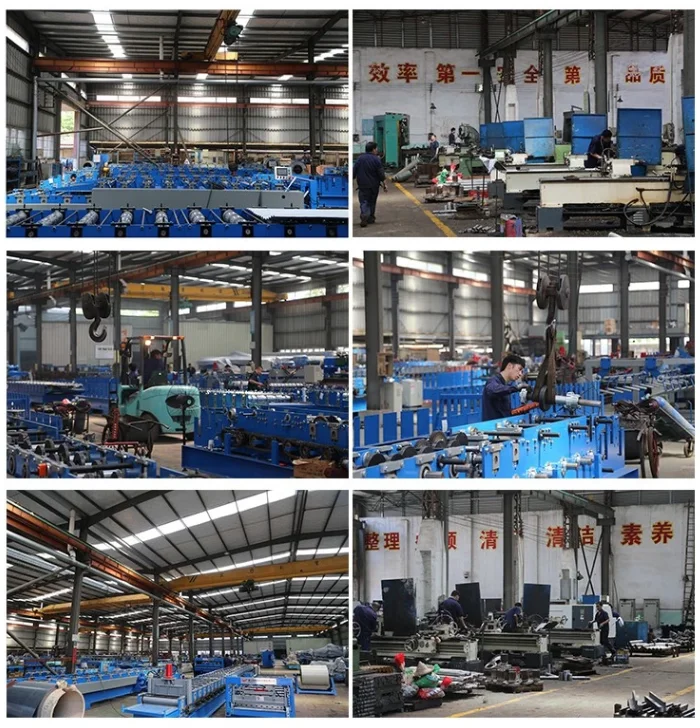

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
Warm prompt
We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.
you need provide panel drawing,feeding width,effective width,and materials thickness,
then we can send you more machine details.please feel free contact me.
