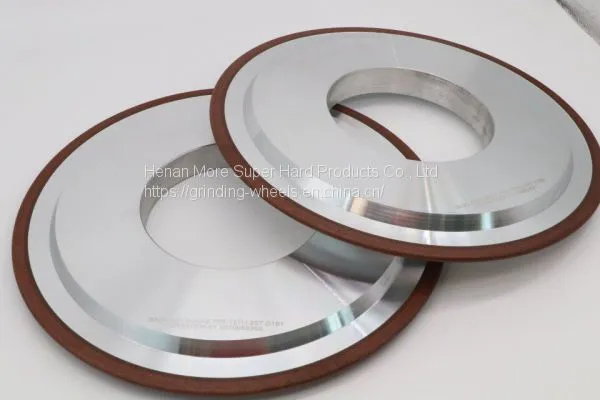

Resin Bond Diamond Grinding Wheel for Carbide

Workpiece Materials: grinding tungsten carbide cutting tools, ceramic, magnetic materials, silicon, glass, quartz and thermal spraying alloy, etc.

Applicable Industry: CNC Tool Grinding, Woodworking Tool Grinding, Thermal Spraying Coated, Silicon Wafer Grinding, etc.

Type: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F1, etc.

Details

Resin bond grinding wheels are the most commonly used super abrasive product currently. our resin diamond wheel is suitable for surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding, double disc grinding and slot grinding of most precision workpieces.

Applications of resin diamond grinding wheel

Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic, magnetic materials, silicon, glass, quartz and thermal spraying alloy, etc.

Advantages of resin diamond grinding wheel

* High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work

* Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes

* Compared to conventional silicon carbide, resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs

* Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels

1A1R Diamond Cutting Disc for optical glass, quartz and sapphire, etc

1A1 Diamond Grinding Wheel, flat diamond wheel for carbide grinding

More SuperHard resin diamond wheels are widely used for grinding carbide HVOF coated. The diameter from 25mm (1") to 915mm (36")

3A1 diamond wheel for grinding micro drill, 14A1 diamond wheel for grinding carbide rod

Diamond Cup Grinding Wheel. (1a2, 6a2, 11a2. etc)

CNC Tools Grinding Wheel. (1a1, 1v1, 11v9, 14a1, 14f1, etc)

More SuperHard services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.

Woodworking Tools Diamond and CBN Wheels. (4a2, 4b9, 1f1 diamond cbn wheel, etc)

Centerless Diamond Wheels. Diamond lapping disc. double disc diamond wheel

Back Grinding Wheel for Silicon Wafer. optical profile grinding wheel. Glass diamond wheel
