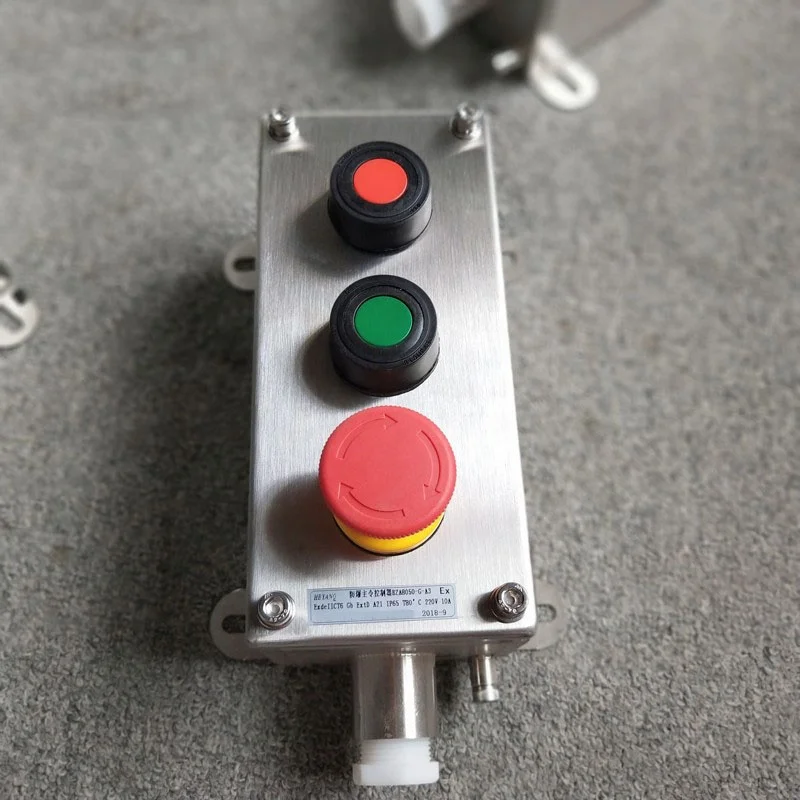

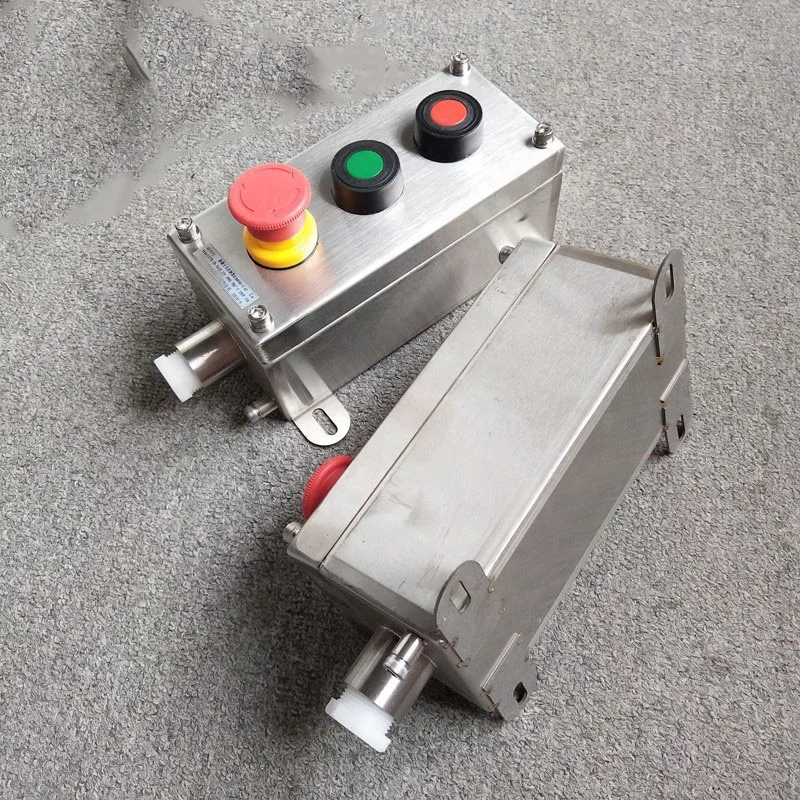

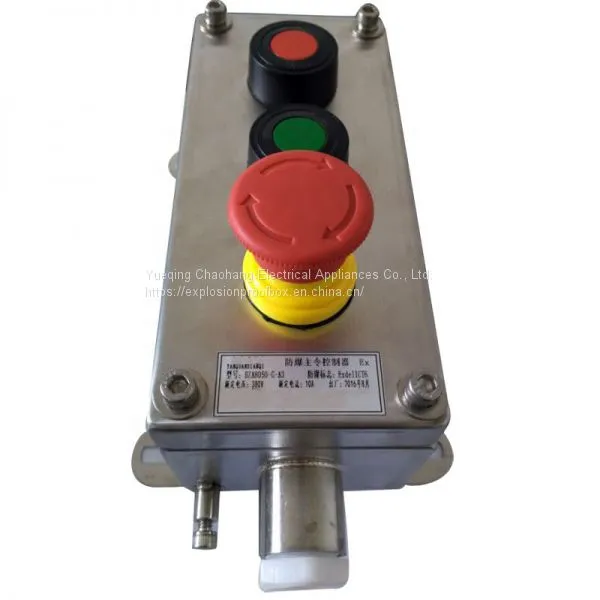

304 Stainless Steel Explosion-proof Button Box Blower Self-locking Master Controller

Brief introduction;
1. It is suitable for area 1 and 2 of explosive gas environment.
2. Suitable for A, B, C explosive gas environment;
3. It is suitable for the environment with temperature group T1-T6.
4. Suitable for explosive hazardous environments such as petroleum extraction, storage, chemical industry, medicine, military industry and military facilities.
5. It is used in electrical control system for instruction sending and status monitoring.
6. Various schemes can be produced according to the electrical system diagram provided by users.
——- Product characteristics;
1. The shell is made of 304 stainless steel. It has good appearance, corrosion resistance, antistatic, impact resistance and thermal stability.
2. The product is an explosion-proof original in the Safety-increasing shell.
3. Built-in indicator lights, buttons, universal switch, ammeter, etc. can be equipped with other instruments according to user's requirements;
4. The built-in flameproof control switch has compact structure, high reliability, small size, strong on-off ability, long life, and various functions for users to choose and match.
5. Installed explosion-proof buttons adopt adhesive technology to ensure reliable structural strength.
6. The built-in explosion-proof indicator lamp adopts special design, and the AC 220/380V is universal.
7. It has good waterproof and dust-proof performance by using winding sealing structure design.
8. The exposed fasteners are made of stainless steel, and the anti-drop design is adopted to facilitate the installation and maintenance of users.
9 steel pipe or cable wiring
—— Technical parameters;
Implementation standards: GB3836.1, GB3836.2, GB3836.3, IEC 60079-1, IEC 60079-7
Explosion-proof sign; Exed CT6
Rated voltage; AC220/380V
Rated current; 10A
Use Category; AC-14
Protection level; IP65
Corrosion grade; WF2
Product Form; Electric Hoist Button for Master Controller
Introduction specification; G3/4 G1
Applicable cable cable cable outer diameter; 9mm-14mm-11mm-18mm
