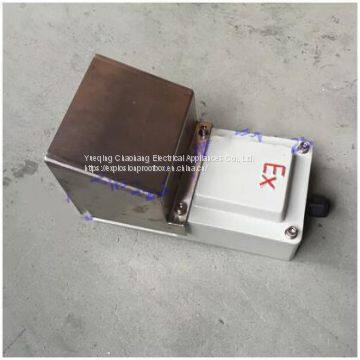

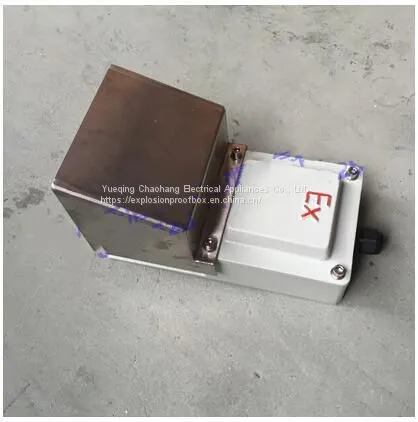

Bxk58-series Explosion-proof Foot Switches Have a Mechanical Life of 1 Million Times photo-2

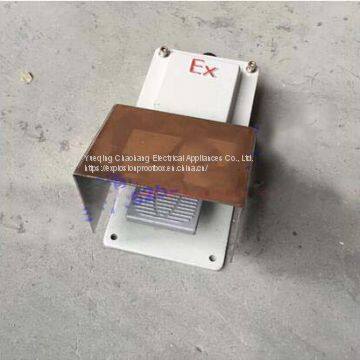

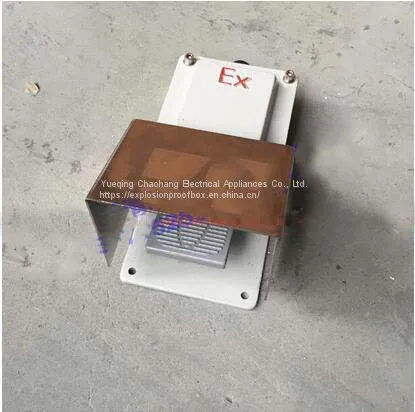

Bxk58-series Explosion-proof Foot Switches Have a Mechanical Life of 1 Million Times photo-3
US$ 2 - 20 MOQ: 1 Bag
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Yueqing Chaohang Electrical Appliances Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 20X16X7 cm

  • Single gross weight:

  • 2.3 kg

  • Package Type:

  • Carton packaging

  • Lead Time :

  • Quantity(Piece) 1 - 40 >40
    Est. Time(days) 3 To be negotiated

Bxk58-series explosion-proof foot switches have a mechanical life of 1 million timesBxk58-series explosion-proof foot switches have a mechanical life of 1 million timesBxk58-series explosion-proof foot switches have a mechanical life of 1 million times







USES:
1. It is applicable to zone 1 and zone 2 where explosive gas mixture is dangerous.
2, explosive gas mixture belongs to Ⅱ, Ⅱ B level.
3. Temperature groups are t1-t6.



Product features:
1, cast aluminum alloy shell, surface corrosion treatment.
2, can control the start and stop of small motor.
3, steel pipe or cable wiring.



Product features:

For frequently switching on and off an on-load circuit;

According to the equipped travel switch, it can be equipped with the function of self-locking the contact by operating the pedal to lock the contact, and unlocking the contact by operating the pedal for the second time to achieve the off-on-off alternate or start/stop operation mode;

The anti-skid design of the pedal makes the operation more effective, convenient and safe.



General performance

Contact resistance: below 50 m Ω (first)

Insulation resistance: more than 100 m Ω, 500 VDC test

Medium withstand voltage: 2000V AC, time 1 minute

Mechanical life: 1 million times electrical life: 100,000 times

Ambient temperature: -250c ~ +700C (no condensation, no icing)

Ambient humidity: 45% ~ 85%RH



Precautions for use:

Depending on the nature of the load and the current value, please pay attention to the rated load of the product.

When handling and moving, please pay attention to the internal wiring short-circuit, circuit break and other phenomena.

Please pay attention to the protection level when using in places with large amount of water, oil and dust.

Heavy load and impact are the direct causes of damage. Please be careful.



Technical parameters

Rated working voltage (Ue) V 380(AC), 220(DC)

Rated operating current (Ie) A 0.8(AC), 0.1(DC)

Rated insulation voltage (Ui) V 380

Rated control capacity VA 300(AC)

Rated control capacity W 300(DC)

Rated operating frequency /h 120

Let's say the heating current A 5

Protection level IP62





Contact customer ser

Bxk58-series explosion-proof foot switches have a mechanical life of 1 million times
