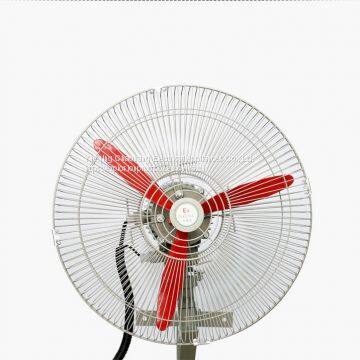

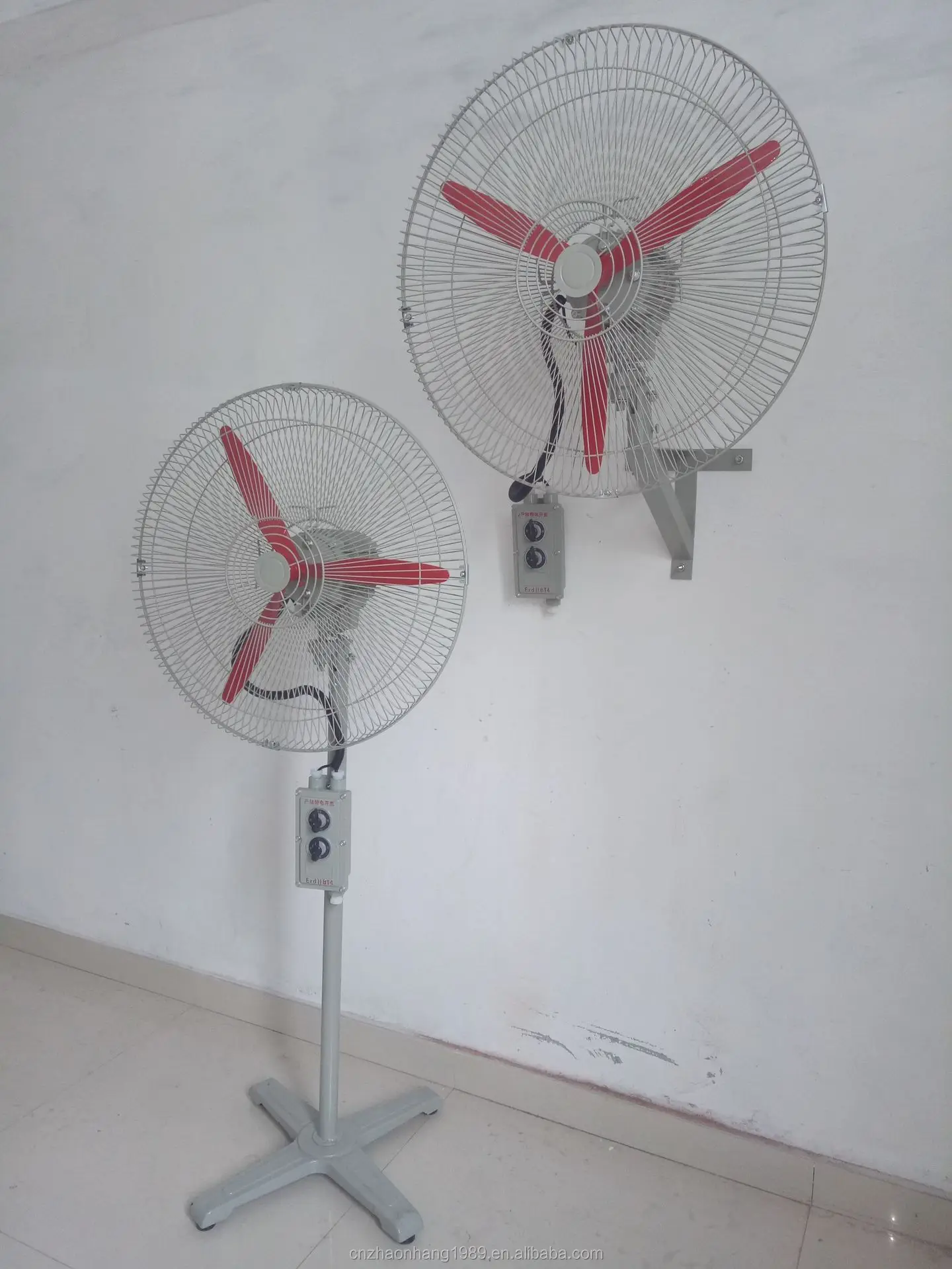

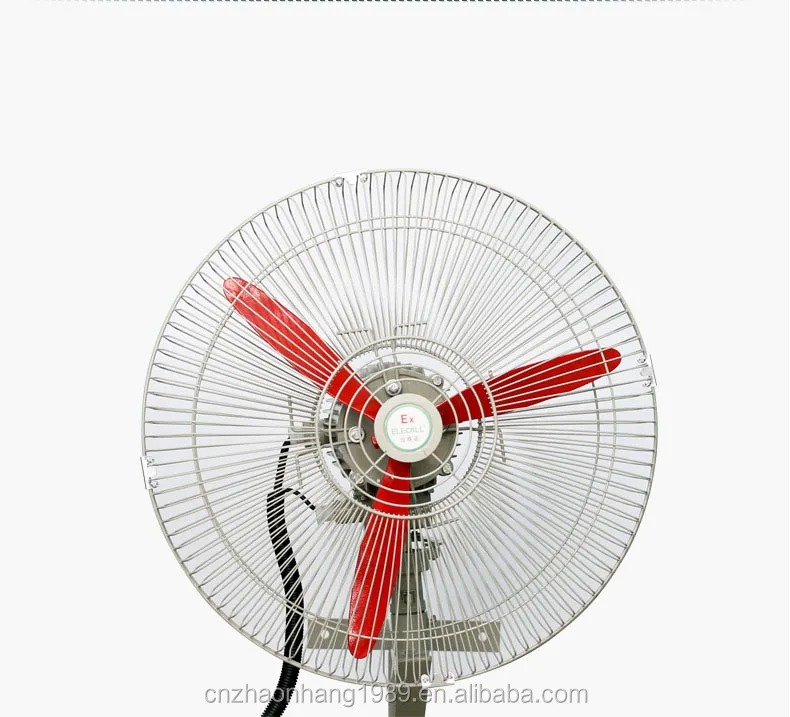

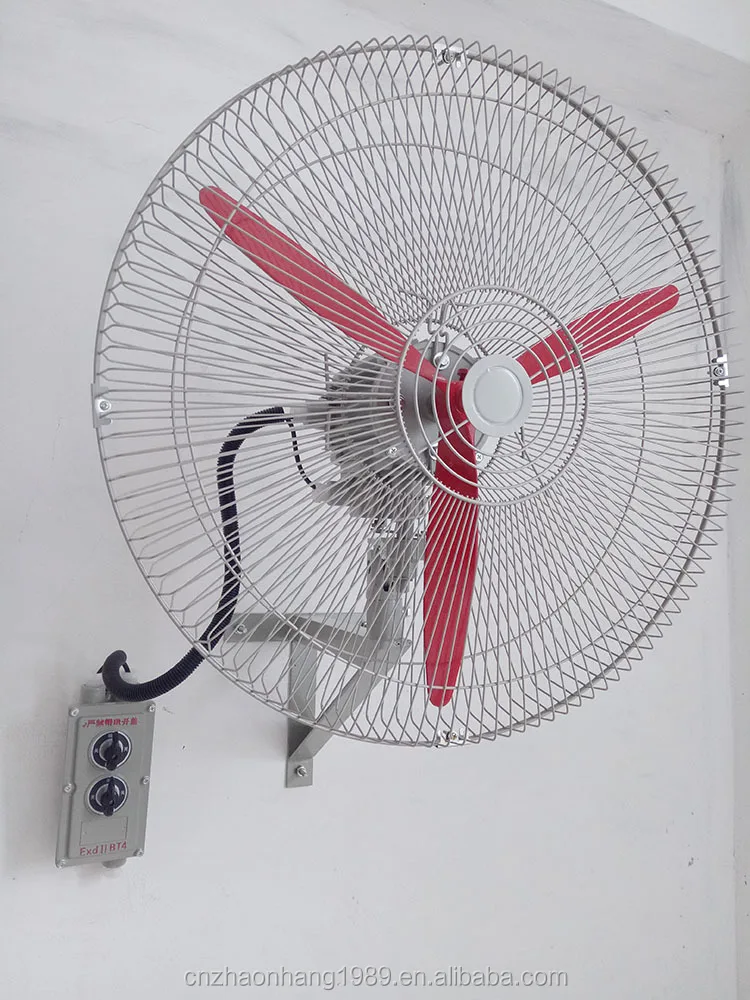

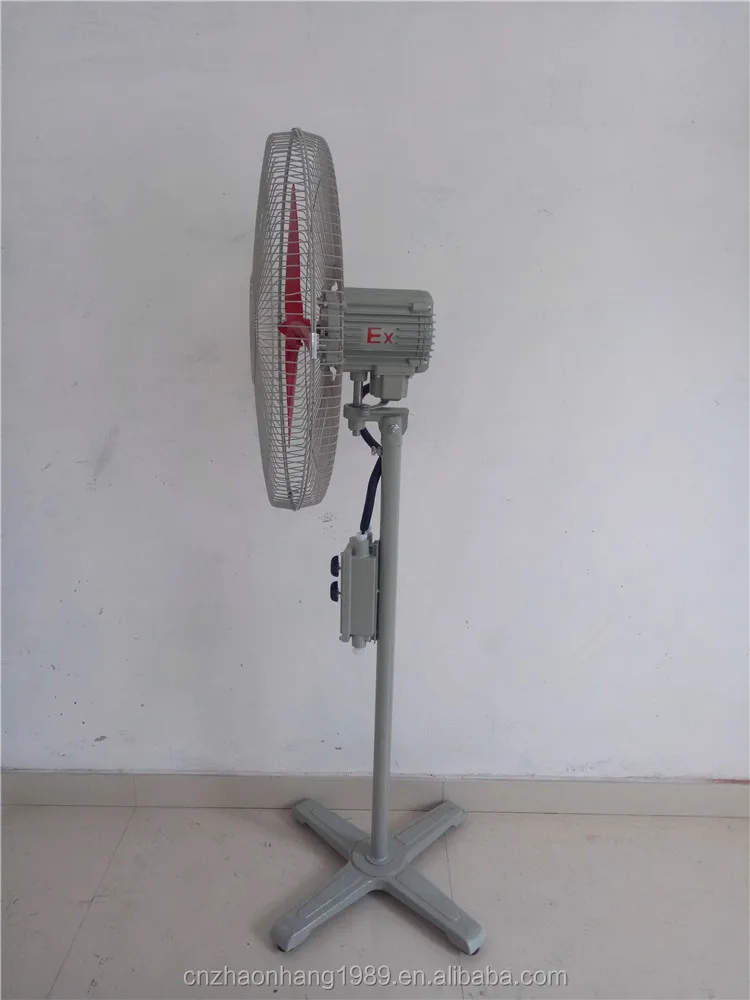

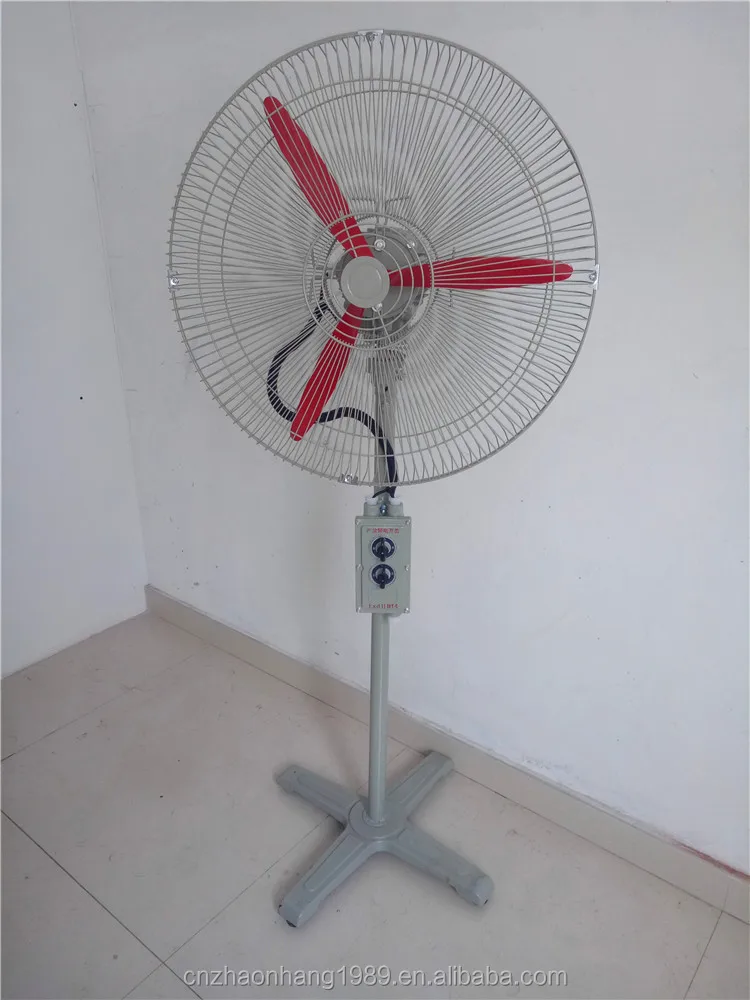

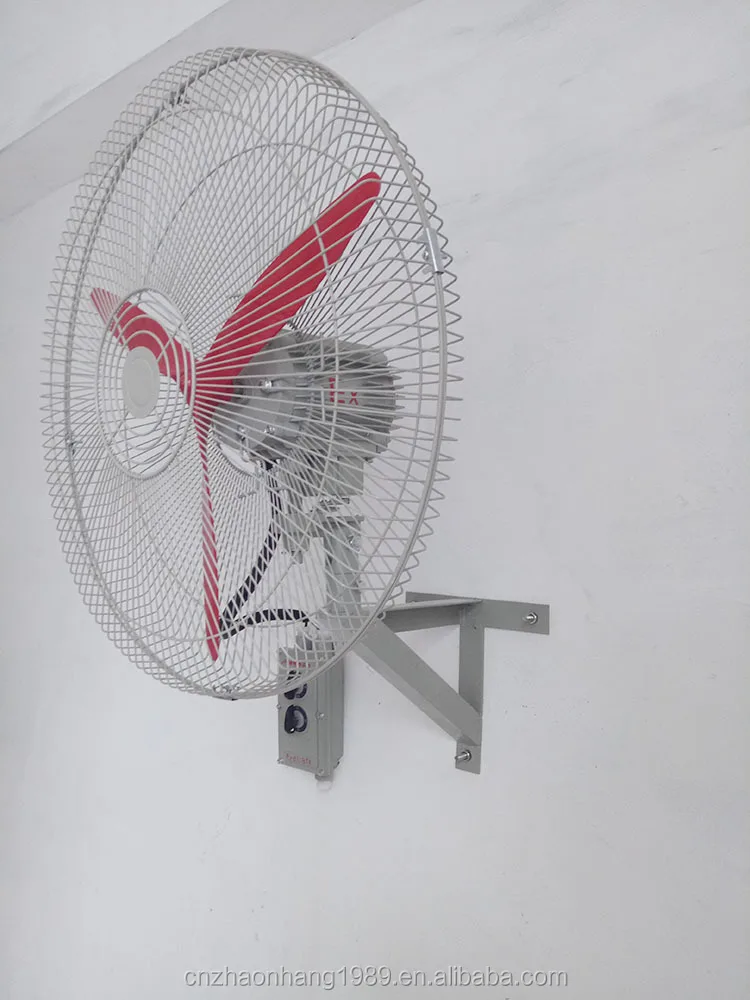

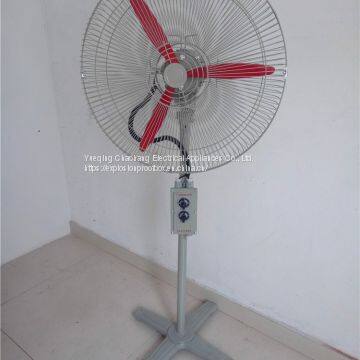

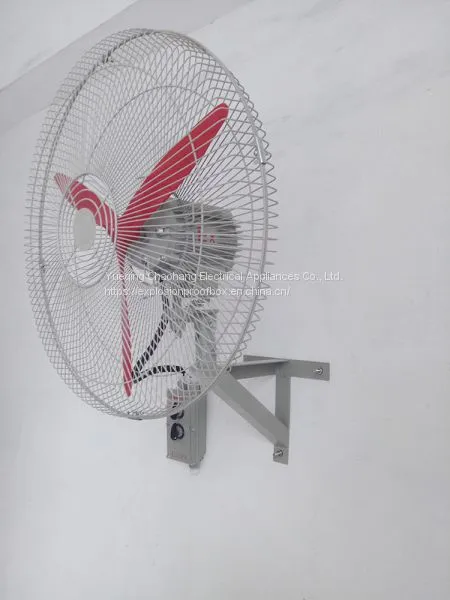

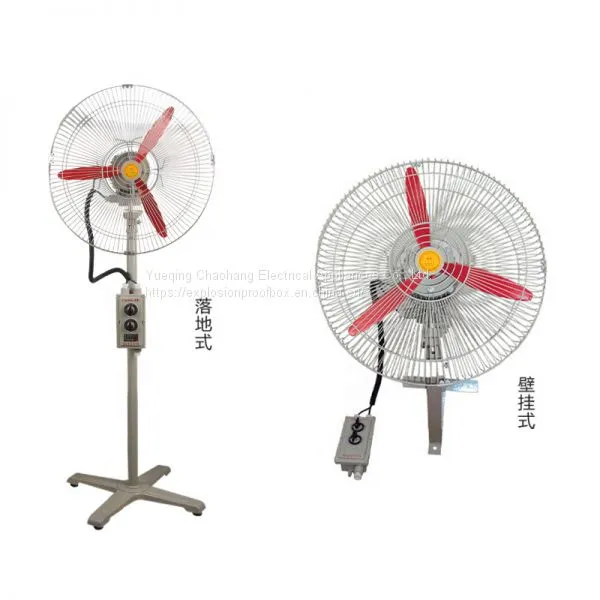

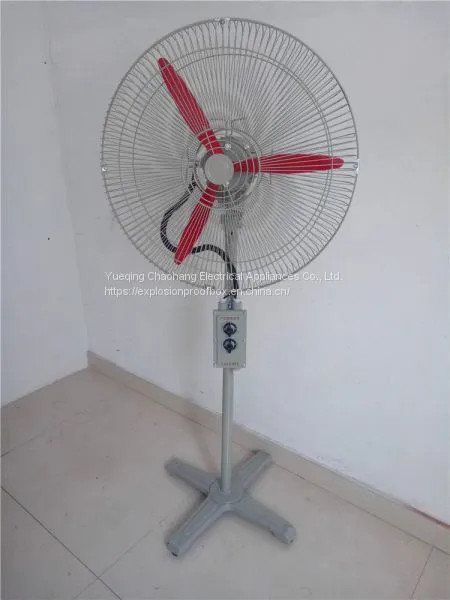

Industrial explosion-proof shaking head fan explosion-proof industrial wall fan/floor fan

Introduction to the
 suitable for explosive gas environment zone 1 and zone 2;
Mixer is suitable for the Ⅱ grade A and B Ⅱ explosive gas environment;
suitable for temperature groups T1 ~ T4 environment;
 it is suitable for oil mining, storage, chemical industry, medicine, military industry and military facilities.

Selection guide
For example: if BTS explosion-proof shaking head fan is required, the blade diameter is 750mm, the rated voltage is 380V, and the installation mode is floor type, the order model is
"L" BTS - 750/350

Product features

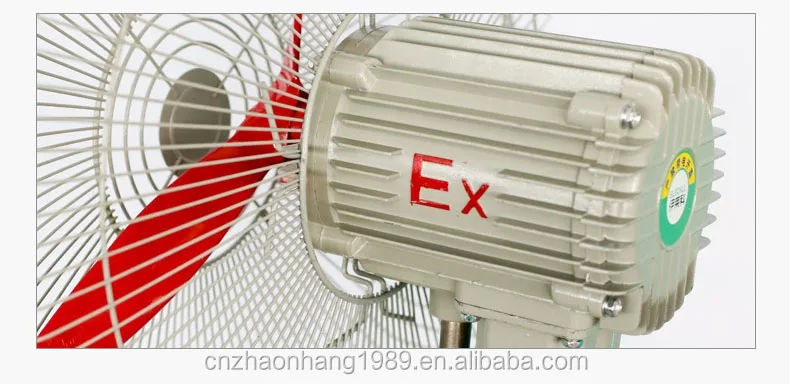

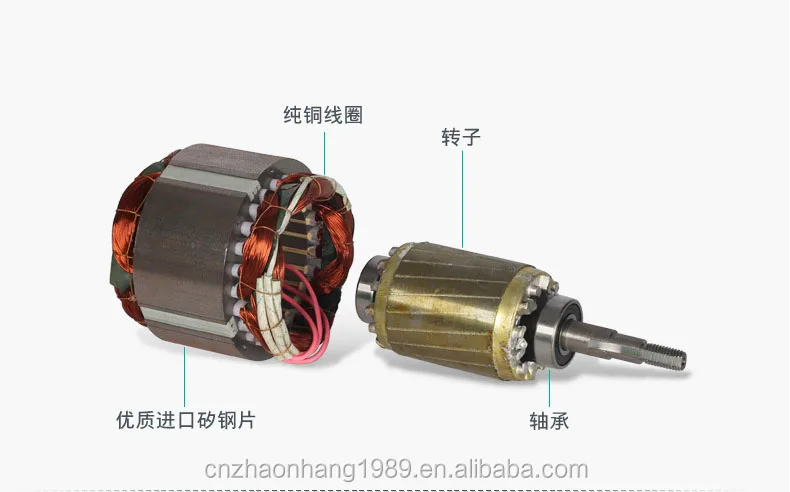

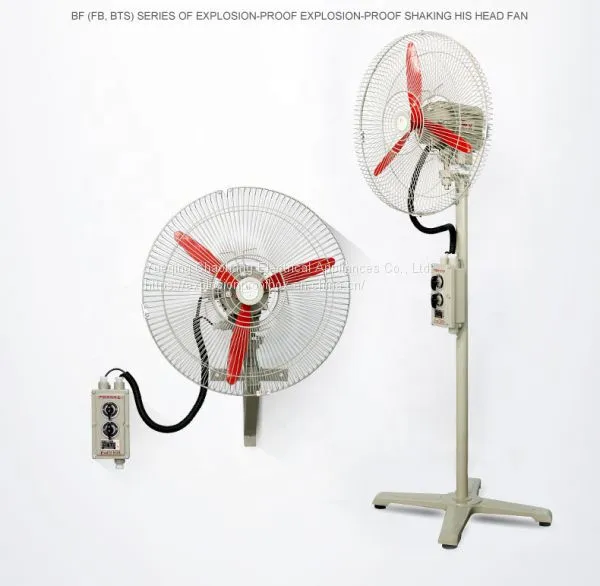

 shaking head fan consists of explosion-proof motor, fan blade, explosion-proof control switch, shaking head mechanism and other parts;
novel structure, smooth operation, easy to use, beautiful appearance;

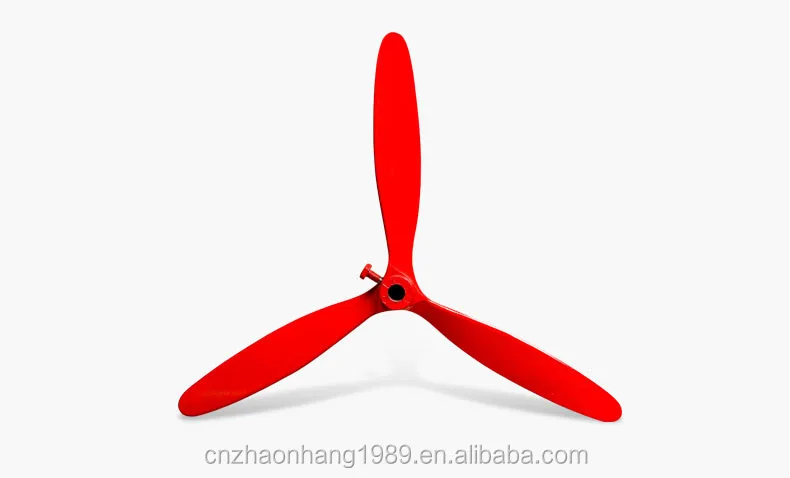

 fan blade is made of aluminum alloy, the surface of high voltage electrostatic spray;
 independent micro-motor system shaking mechanism, reduce the main motor load and mechanical transmission noise;
 main click back end to add cooling fan, force air cooling, effectively reduce the temperature rise of main motor;
 flameproof explosion-proof control box, which controls the start and stop of fan and shaking head mechanism respectively;
 horizontal shaking Angle 45, vertical Angle +20, 0, 20 position adjustable;

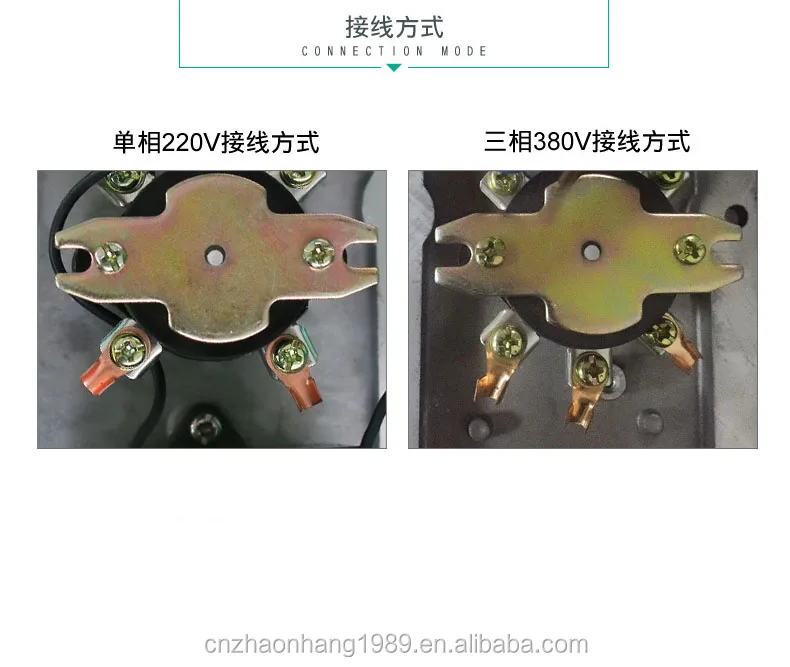

 cable wiring.

Technical parameters
execution standards: GB3836.1, GB3836.2, IEC60079

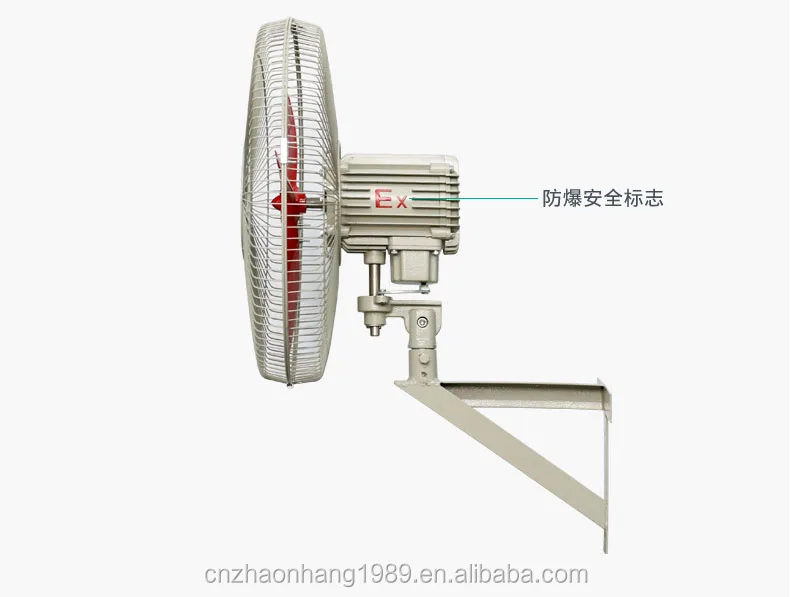

Explosion-proof marks: Exd Ⅱ BT4
 rated voltage: AC 220/350v
 rated power: 0.45kw
 spindle speed: 1450/min

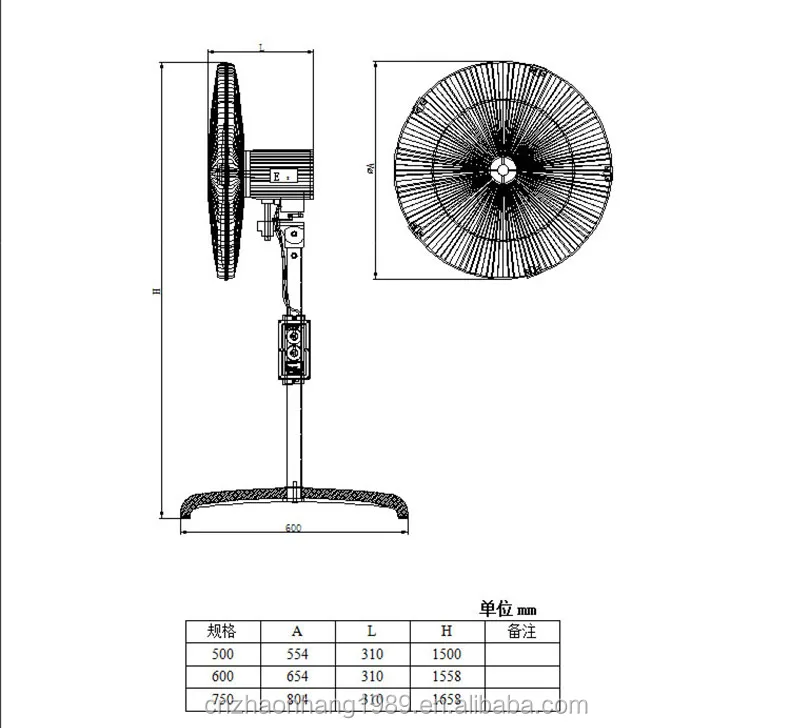

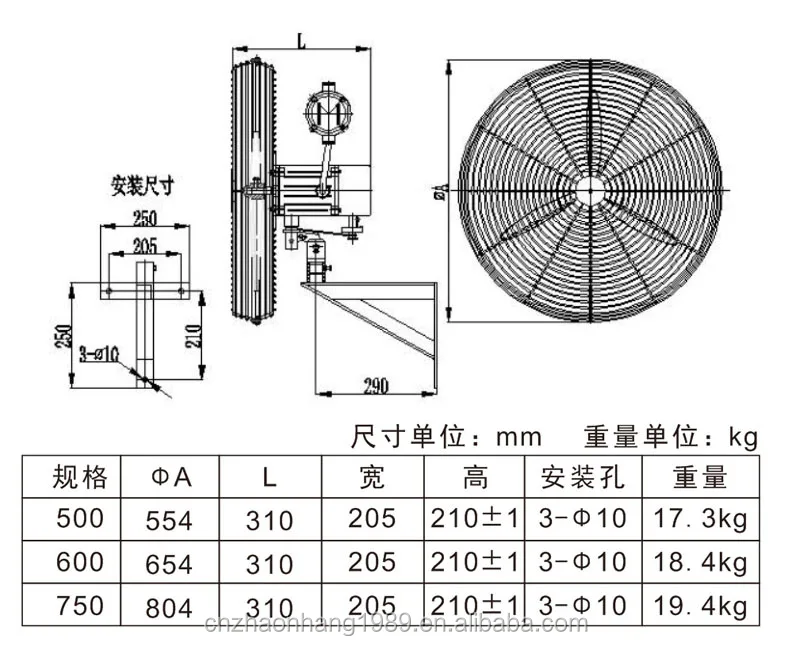

 blade diameter: 500mm, 600mm, 750mm
 air volume: 110m2/min 160M2/min 300m2/min
 anticorrosion grade: WF1
specification of inlet: g1/2"
 applicable cable outside diameter: phi 6mm~ phi 10mm
