Rexroth A2FO Series Quantitative Piston Pumps High Pressure

Rexroth A2FO Series Quantitative Piston Pumps High Pressure thumbnail-1
Rexroth A2FO Series Quantitative Piston Pumps High Pressure thumbnail-2
Rexroth A2FO Series Quantitative Piston Pumps High Pressure photo-1

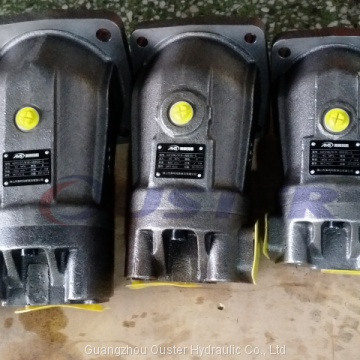

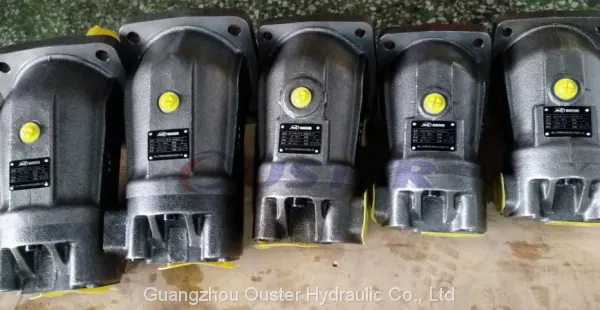

Rexroth A2FO Series Quantitative Piston Pumps High Pressure photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Rexroth
Place of Origin:
China
Model Number:
A2FO 10,12,16,23,28,32,45,56,63,80,90,107,125,160,180,200,250,355,500,710,1000
Contact Supplier Request Quote Chat Now
Guangzhou Ouster Hydraulic Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Rexroth
Place of Origin China
Model Number A2FO 10,12,16,23,28,32,45,56,63,80,90,107,125,160,180,200,250,355,500,710,1000
Usage Oil
Standard or Nonstandard Standard
Structure Piston Pump
Pressure High Pressure

series

A2FO Series Axial Piston Quantitative Pump

Specifications

10、12、16、23、28、32、45、56、63、80、90、107、125、160、180、200、250、355、500、710、1000.

Series 6.

Working pressure

Rated pressure 35 MPa, peak pressure 400 MPa.

Characteristic

 - The oblique axial quantitative pump is suitable for hydrostatic drive of open circuit.
- Applicable to the field of walking machinery or industry;
- The output flow is proportional to the driving speed and displacement.
- The design of the drive shaft bearing makes the application realm reach the expected service life.
- Various specifications can be matched with each actual drive.
- Favorable power/weight ratio;
- Compact structure and economy;
- Optimum volumetric efficiency;
- Integrated plunger design with plunger ring.



Safety instructions:
A2FO pump is designed for use in open circuit.
- The project planning, installation and commissioning of the axial plunger unit must be carried out by qualified personnel.
Before using the axial plunger unit, please read the corresponding instruction manual. If necessary, you can get it from Bosch Rexroth.
During and shortly after operation, there is a risk of burning in the axial piston unit. Appropriate safety measures (such as wearing protective clothing) should be taken.
The characteristics of the axial plunger unit may vary with different working conditions (working pressure, oil temperature).
Work Pipeline Oil Port:
· Oil nozzles and fixed threads are designed according to the maximum prescribed pressure. Machine or system manufacturers must ensure that the safety factor of connecting components and pipes meets the specified working conditions (pressure, flow, hydraulic oil, temperature).
· Work pipeline nozzles and functional nozzles are only used in hydraulic pipelines.
- The data and instructions contained here must be followed.
The product cannot be approved as a component that follows the general mechanical safety concept of ISO 13849.
Overflow valves will be installed in the hydraulic system.
Use the following tightening torque:
· Connector:
Refer to manufacturer's instructions for tightening torque of the joints used.
· Install bolts:
For installation bolts with ISO metric threads in accordance with DIN 13 standard and with ASME B1.1 standard threads, we recommend that the tightening torque of each box be checked according to VDI 2230.
· Thread holes in the axial plunger unit:
The maximum allowable tightening torque MG Max is the maximum value for threaded holes and shall not exceed that value.
· Locking screw:
For the metal locking screw provided with the axial piston unit, the fastening torque MV required for the locking screw should be used.

Size 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180 200 250 355 500 710 1000
Displacement Vg cm³ 10.3 12 16 22.9 28.1 32 45.6 56.1 63 80.4 90 106.7 125 160.4 180 200 250 355 500 710 1000
geometric, per revolution
Nominal pressure pnom bar 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350 350
Maximum pressure pmax bar 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400 400
Maximum speed nnom 1) rpm 3150 3150 3150 2500 2500 2500 2240 2000 2000 1800 1800 1600 1600 1450 1450 1550 1500 1320 1200 1200 950
nmax 2) rpm 6000 6000 6000 4750 4750 4750 4250 3750 3750 3350 3350 3000 3000 2650 2650 2750 1800 1600 1500 1500 1200
Flow at nnom qV l/min 32 38 50 57 70 80 102 112 126 145 162 171 200 233 261 310 375 469 600 852 950
Power at nnomand pnom P kW 22 25 34 38 47 53 68 75 84 96 108 114 133 155 174 207 219 273 350 497 554
Torque 3) at pnom M Nm 66 76 102 146 179 204 290 357 401 512 573 679 796 1021 1146 1273 1393 1978 2785 3955 5570
Rotary stiffness c kNm/rad 0.92 1.25 1.59 2.56 2.93 3.12 4.18 5.94 6.25 8.73 9.14 11.2 11.9 17.4 18.2 57.3 73.1 96.1 144 270 324
Moment of inertia for rotary group JTW kg·m² 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0024 0.0042 0.0042 0.0072 0.0072 0.0116 0.0116 0.022 0.022 0.0353 0.061 0.102 0.178 0.55 0.55
Maximum angular acceleration ɑ rad/s² 5000 5000 5000 6500 6500 6500 14600 7500 7500 6000 6000 4500 4500 3500 3500 11000 10000 8300 5500 4300 4500
Case volume V l 0.17 0.17 0.17 0.2 0.2 0.2 0.33 0.45 0.45 0.55 0.55 0.8 0.8 1.1 1.1 2.7 2.5 3.5 4.2 8 8
Weight (approx.) m kg 6 6 6 9.5 9.5 9.5 13.5 18 18 23 23 32 32 45 45 66 73 110 155 325 336


Product Tags: Piston Pump , Hydraulic Pump , Rexroth A2FO
