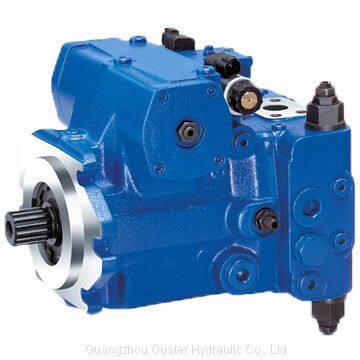

Rexroth A4VG_32 Series Variable Piston Pumps High Pressure

Safety instructions
- A4VG pump is designed for use in closed circuit.
- The project planning, installation and commissioning of the axial piston unit must be carried out by qualified personnel.
- Before using the axial plunger unit, please read the corresponding manual completely. If necessary, you can get it from Bosch Rexroth.
- During and shortly after operation, there may be a risk of burning of the axial piston unit (especially the electromagnet). Appropriate safety measures (such as wearing protective clothing) should be taken.
- The characteristics of the axial plunger unit may vary with different working conditions (working pressure, oil temperature).
- Work pipeline oil outlet:
· Oil nozzles and fixed threads are designed for maximum specified pressure. Machine or system manufacturers must ensure that the safety factor of connecting components and pipes meets the specified working conditions (pressure, flow, hydraulic oil, temperature).
· Work pipeline nozzles and functional nozzles are only used in hydraulic pipelines.
- The data and instructions contained here must be followed.
- The product cannot be approved as a component that follows the general mechanical safety concept of ISO 13849.
- The following tightening torque is used:
· Connector:
Refer to manufacturer's instructions for tightening torque of the joints used.
· Install bolts:
For installation bolts with ISO metric threads in accordance with DIN 13 standard and with ASME B1.1 standard threads, we recommend that the tightening torque of each box be checked according to VDI 2230.
· Thread holes in the axial plunger unit:
The maximum allowable tightening torque MG Max is the maximum value for the internal threaded holes and shall not exceed that value.
· Locking screw:
For the metal locking screw provided with the axial piston unit, the fastening torque MV required for the locking screw should be used.
