Home > Products > insulated conductor bar > conductor bar rail system crane busbar rail

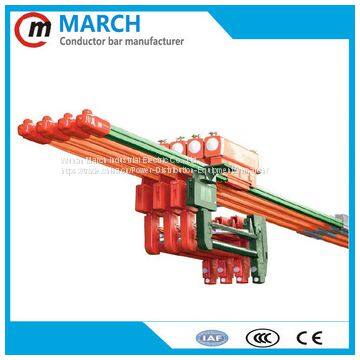

conductor bar rail system crane busbar rail
- 10000 Piece / Pieces per Month
- Wuhan
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 7 days
- bridge crane over head crane conductor bar for instead conductix busbar
- Instead conductix busbar for over head crane , hoist and moving machine power supply
- moving machine power supply conductor bar busbar electrical eot busbar
- moving machine power supply collector for conductor bar system
- 100a conductor bar for overhead crane 3 in 1 busbar collector
- 50amp 100amp 250amp 500amp current collector for single conductor bar
Product Details
Brand Name: | MARCH | Place of Origin: | China | Model Number: | MCCBII |
Product Description
conductor bar rail system crane busbar rail
Type -Aluminum
Aluminum conductor busbar
Model | Rated current (A) | Section area (mm2) | MAX Voltage AC (v) | MAX Voltage DC (v) | Full load permissible temperature (Degree) | Weight (kg) |
MCCBII-160A-AL | 160 | 102 | 550 | 700 | 25 | 1.98 |
MCCBII-200A-AL | 200 | 104 | 2.13 | |||
MCCBII-250A-AL | 250 | 110 | 2.19 | |||
MCCBII-315A-AL | 315 | 120 | 2.32 | |||
MCCBII-400A-AL | 400 | 157 | 2.81 | |||
MCCBII-500A-AL | 500 | 196 | 3.11 |
Stand Length : 4.5 m
Application environment : Suitable for the out door and sea , resistance to certain chemicals
Features:
1.Quick and Easy Assembly
2.Excellent Ellectrial Conductivity
3.CAD/CAM designed for Stable Quality
1. Expansion Sections
Rated Current (A) | Material | Weight(kg) | Standard Length |
60A | Galvanized steel | 3.22 | 4.5 M |
100A | 3.48 | ||
125A | 4.37 | ||
160A | Aluminum &Stainless steel | 3.19 | |
200A | 3.30 | ||
250A | 3.49 | ||
315A | 3.61 | ||
400A | 3.69 | ||
500A | 4.01 | ||
160A | Copper | 3.39 | |
250A | 3.97 | ||
400A | 4.9 |
Application Environment :
The expansion sections are required to compensate for therma expansion
MCCBII System can run for 150m without an expansion section
2.Power feed
Item | Weight | Parts No. |
<100A End Power Feed | 0.041 | 27105 |
<250A End power Feed | 0.18 | 26105 |
>250A End power Feed | 0.25 | 26106 |
3.Joints and Cover
Items | Material | Weight | Parts No |
Joints | Galvanized steel | 0.049 | 28111 |
Copper | 0.031 | 28112 | |
Aluminum | 0.082 | 28113 | |
Joint Covers | PVC | 0.028 | 26104 |
4. Hanger Clamps
Item | Material | Largest Installation Distance | Weight (kg) | Parts NO. |
Anchor Clamp | PVC | 1.5 m | 0.04 | 27104 |
1-Pole Hanger Clamp | 0.03 | 28101 | ||
3-Pole Hanger Clamp | 0.06 | 27103 | ||
4-Pole Hanger Clamp | 0.07 | 27101 | ||
2-Bolt 4 pole Hanger | 0.08 | 27102 |
5. End Caps
Material | Weight(kg) | Parts No. |
Steel | 0.042 | 28107 |
Copper | 0.04 | 28106 |
Aluminum | 0.22 | 28105 |
Transition Cover | 0.11 | 28104 |
100A carbon brush for crane current collector
Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
50 | 1 | - | - | - | 0.4 | Copper/Graphite |
100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG
