Grinding Wheel For CNC Tool Grinder

Grinding Wheel For CNC Tool Grinder thumbnail-1
Grinding Wheel For CNC Tool Grinder thumbnail-2
Grinding Wheel For CNC Tool Grinder thumbnail-3
Grinding Wheel For CNC Tool Grinder thumbnail-4
Grinding Wheel For CNC Tool Grinder thumbnail-5
Grinding Wheel For CNC Tool Grinder photo-1

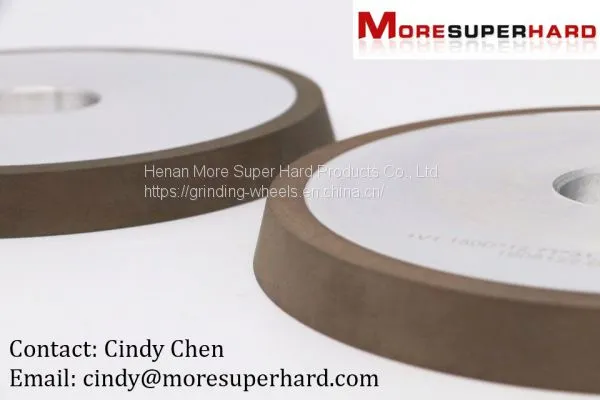

Grinding Wheel For CNC Tool Grinder photo-2

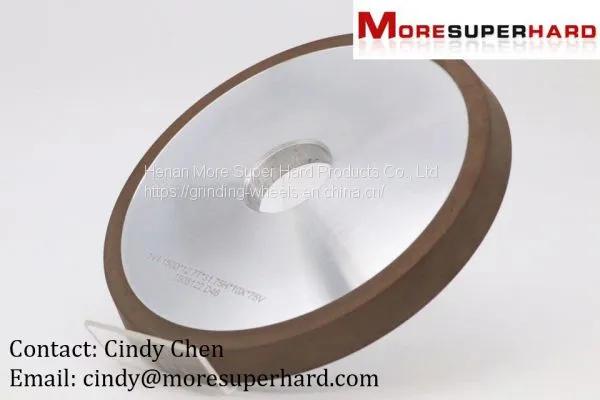

Grinding Wheel For CNC Tool Grinder photo-3

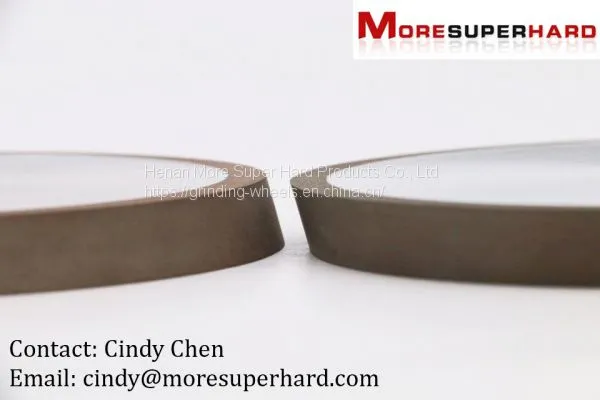

Grinding Wheel For CNC Tool Grinder photo-4

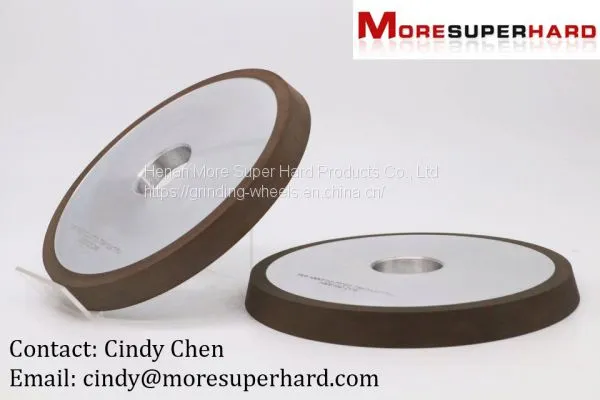

Grinding Wheel For CNC Tool Grinder photo-5
US$ 50 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Moresuperhard
Place of Origin:
China
Model Number:
1V1
Contact Supplier Request Quote Chat Now
Henan More Super Hard Products Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Beijing
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Moresuperhard
Place of Origin China
Model Number 1V1
Type Abrasive Block

Carbide Round Tools on CNC Machines: Flute Grinding, Gash Grinding, end facing, Clearance angle Cylindrical grinding.

Model: fluting (1A1, 1V1), gashing and clear edge (1V1, 12V9), relief angle (11v9)

Details

More SuperHard diamond / CBN grinding wheel for CNC tool grinder is used for tungsten carbide, high speed steel (HSS), stainless drill, end mill and reamer.

We provide a complete solution for CNC tools manufacturing process, including fluting, gashing and Clear edge, relief angle grinding.

Fluting Grinding: Perfect flute surface quality, Extremely high stock removal, Very low energy consumption

Model

D (mm/ Inch)

T (mm/ Inch)

X (mm/ Inch)

H (mm/ Inch)

Grit

1A1

75

3"

10

12

3/8"

1/2"

5

1/4"

31.75

1-1/4"

D64

100

4"

6

10

12

1/4"

3/8"

1/2"

5

10

1/4"

3/8"

31.75

1-1/4"

D46

D64

125

5"

10

12

16

3/8"

1/2"

5/8"

10

3/8"

31.75

1-1/4"

D46

D64

150

6"

12

1/2"

10

3/8"

31.75

1-1/4"

D64

1V1

D (mm/ Inch)

T (mm/ Inch)

X (mm/ Inch)

H (mm/ Inch)

V°

75

3"

10

3/8"

5

1/4"

31.75

1-1/4"

45

100

4"

10

15

3/8"

5/8"

5

1/4"

31.75

1-1/4"

45

125

5"

6

10

15

1/4"

3/8"

5/8"

5

1/4"

31.75

1-1/4"

45

 14F1

D(mm/ Inch)

U(mm/ Inch)

X (mm/ Inch)

H(mm/ Inch)

R

100

4"

4

1/8"

6

1/4"

31.75

1-1/4"

2

125

5"

3

1/8"

5

1/4"

31.75

1-1/4"

1.5

150

6"

1/5

1/16"

1/4"

5/7

1/4"

31.75

1-1/4"

0.5

2.5



Gashing and Clear edge: The production of superior tool edge quality, High stock removal, Maintaining wheel profile

Model

D(mm/ Inch)

T(mm/ Inch)

X (mm/ Inch)

H(mm/ Inch)

V°

1V1

100

4"

10

15

3/8"

5/8"

5

10

1/4"

3/8"

31.75

1-1/4"

45

125

5"

4

10

15

1/4"

3/8"

5/8"

5

6

10

1/4"

3/8"

31.75

1-1/4"

45

12V9

D(mm/ Inch)

W(mm/ Inch)

X (mm/ Inch)

H(mm/ Inch)

75

3"

3

5

1/8"

1/4"

10

3/8"

31.75

1-1/4"

100

4"

3

5

1/8"

1/4"

10

3/8"

31.75

1-1/4"

125

5"

3

5

1/8"

1/4"

10

3/8"

31.75

1-1/4"

Relief angle grinding: Excellent surface finish and the best profile consistency, Excellent edge quality, High stock removal at second relief

11V9

D(mm/ Inch)

W(mm/ Inch)

X (mm/ Inch)

H(mm/ Inch)

75

3"

3

1/8"

10

3/8"

31.75

1-1/4"

100

4"

2/3

1/8"

10

3/8"

31.75

1-1/4"

125

5"

3

1/8"

10

3/8"

31.75

1-1/4"

CNC Tools Grinder: Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann and so on.

Meanwhile, More Superhard Products Co.,Ltd also supplies diamond cutting disc for carbide rods cutting, centerless grinding wheel for carbide bars, silicon carbide wheel for dressing CNC grinding wheel (dressing machines: Cleveland , Farman) and so on.
