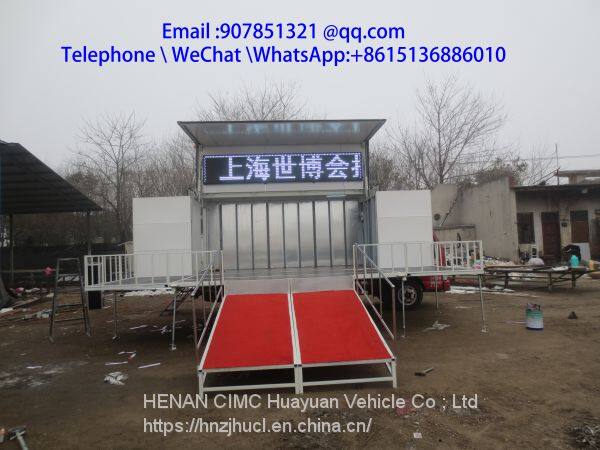

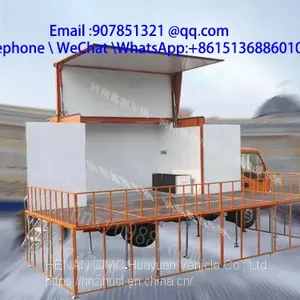

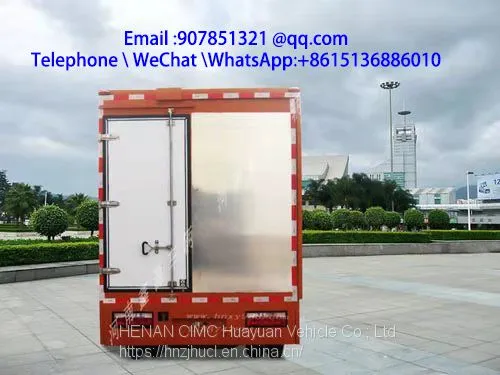

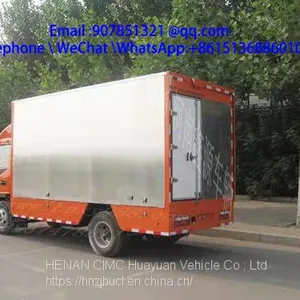

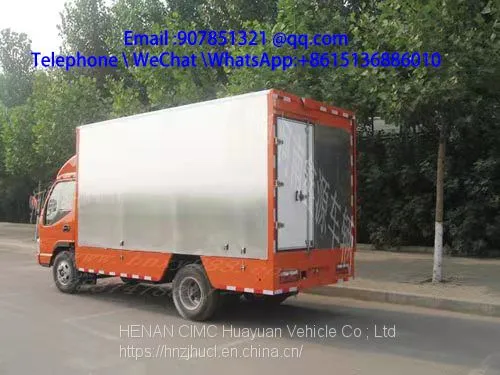

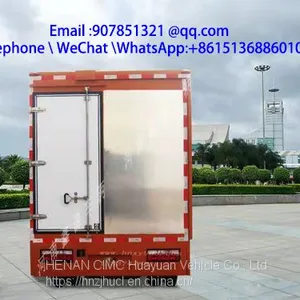

4.2m Mobile Stage Truck for Roadshow

4.2m  mobile stage truck for roadshow





Technical Paremeters



Technical parameters
Vehicle name	Foton Kangrui mobile stage car	Vehicle model	BJ5043XWT-A
Emission Standards	Country five	Chassis model	BJ1043V9JEA-A
Environmental protection announcement	Have	Dimensions (mm)	5995×1940,2030×2970
Fuel type	Diesel	Cargo size (mm)	4200×2000×1900
Total mass (kg)	4495	Tire specifications	7.00R16
Curing quality (kg)	3865	Rated passenger	2 people)
Wheelbase (mm)	3360	Maximum speed (km/h)	95
engine model	4B2-95C40	Displacement (ml)	2450
Engine manufacturer	Anhui Quanchai Power Co., Ltd.	Power (kw)	85

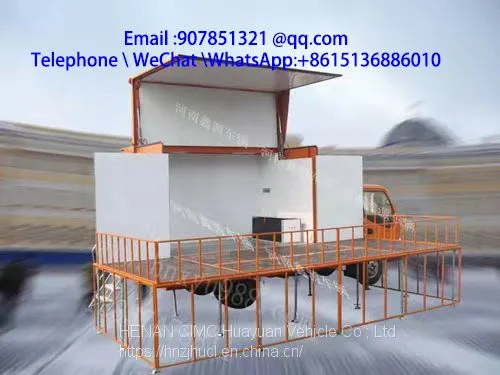

Top-loading configuration details
Top lift height	800mm-1300mm	Height between the top and the stage board after unfolding (m)	3.3 or so
Stage mouth length (m)	6--9	Stage depth (m)	6
Main stage area (m2)	36--50	Set up the stage area (m2)	8--20
Box material	Steel frame, aluminum profile and stamping combination	Outer plate material	Aluminum plate
Interior material	Waterproof plywood	Stage board	Waterproof, non-slip, fireproof ventral plywood
Cylinder	Stage special hydraulic cylinder	Tubing	Double exhibition wire pipe
Equipped with the car	Lighting stand, curtain, hook, stage ladder, stage screen
Optional on-board	High-precision led HD color screen (p6, p5, p4, etc.)



1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden           boxes are available.
2,Delivery time:10-15 days after deposit.
3,Delivery term:EXW,FOB,CFR,CIF etc.

Company Information

Henan CIMC Huayuan Vehicle Co., Ltd., located in Changge City, Henan Province, China, was founded in 2008. It is mainly engaged in mobile stage vehicles, LED vehicles, roadshow vehicles, wing-open vans, mobile sales vehicles, etc. Development, production, sales and related customized services and services for vehicles and their components.The Huayuan brand mobile stage vehicles, touring exhibition vehicles and mobile sales vehicles developed and produced by us have beautiful appearance, reasonable structure, safe use and strong carrying capacity . Mainly exported to Uzbekistan, the United Arab Emirates, Indonesia, New Zealand, Southeast Asia, Central America, South America and other countries and regions. Over the years, our various special vehicles have been well received by customers at home and abroad for their excellent quality and superior price.

FAQ                                                                               Q1:What's the MOQ?

A:1 set for quality checking is workable.

Q2:What's the process of an order?
A:Firstly,buyer and seller confirm all the requirements and quotation.

Secondly,buyer pay 30% deposit by T/T,seller start production,

Thirdly,seller send photos of the finished vehicle to buyer,buyer pay the 70% balance.

Fourthly,seller arrange land transportation and shipment to buyer's destination port.

Q3:Is it ok to print buyer's logo on the vehicle?
A:Yes.

1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.
