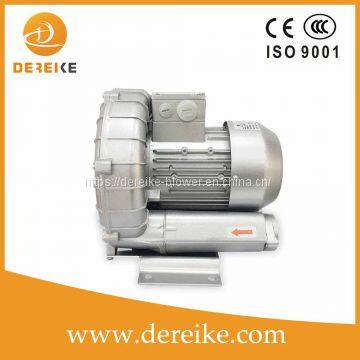

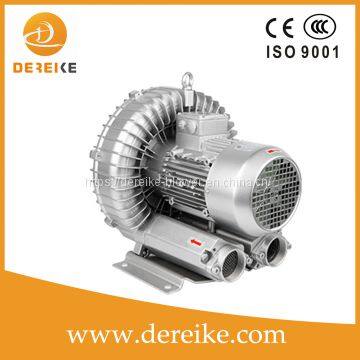

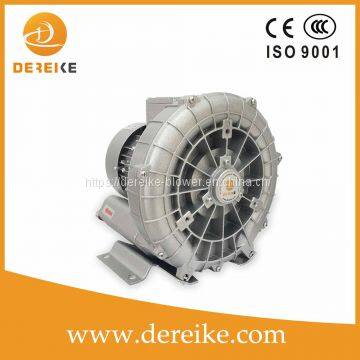

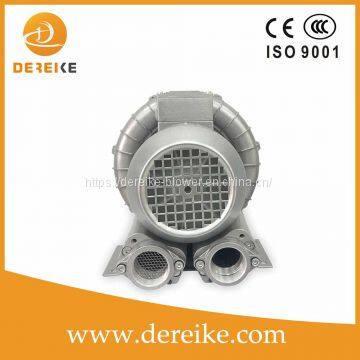

DEREIKE Side Channel Blowers Single Stage Single Phase 220v DHB 710A 2D2 2.2KW
US$ 220 - 350
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DEREIKE
Place of Origin:
China
Model Number:
DHB 710A 2D2
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
3 days
Related Products
-
DHB 940C 025 Dereike High Pressure Double Stage Side Channel Blower 25kw With Air Flow 2450m3/hUS$ 2500 - 3500MOQ: 1 Set -
DHB 943C 025 Dereike High Pressure Double Stage Side Channel Blower 25kwUS$ 2500 - 3688MOQ: 1 Set
-
25kw DHB 943C 025 Dereike Side Channel Blower High Pressure Double Stage Big Air FlowUS$ 2500 - 3688MOQ: 1 Set
-
25kw DHB 943C 025 Dereike Side Channel Blower in Dust Collection,cleaner, Centrol Vacuum IndustrialUS$ 2500 - 3688MOQ: 1 Set
-
DEREIKE Side Channel Blowers DHB 820C 015 IE2/IE3 With Thermal Protection PTC for Waste Water Treatment WwptUS$ 1250 - 1450MOQ: 1 Set
Brand Name
DEREIKE
Place of Origin
China
Model Number
DHB 710A 2D2
Type
Turbo Blower
Application
Air Blower
Rated Voltage
220V
Rated Power
2.2KW
Power Source
Electric Blower
Pressure
High Pressure
| Technical parameters |
Technical parameters | DHB 710A 2D2 |
| Maximum airflow | m3/h | 318 |
| Maximum vacuum | mbar | -190 |
| Maximum pressure | mbar | 190 |
| Frequency | Hz | 50 |
| voltage | V | △200-240 |
| Current | A | 12.8 |
| output | kW | 2.2 |
| Motor revolutions | min-1 | 2800 |
| Weight approx | Kg | 30 |
| Sound level | dB (A) | 72 |
DEREIKE Side Channel Blowers single stage single phase 220v DHB 710A 2D2 2.2KW
The following Pressure-flow performance curve is measured under the condition of suction of 15 °C air and exhaust pressure 1013mbar.
The allowable difference is±10%.When the inlet air and ambient temperature do not exceed 25 °C,
the following diagram can still be achieved.
| Q1 | How long is the blower life? |
| A1 | 3-5 years in normal condition. |
| Q2 | How long is the warranty period for the blower? |
| A2 | 18months free warranty period, and a lifetime maintenance. |
| Q3 | Can the blower be customized? |
| A3 | Normal Blowers are standard parts, but the voltage can be customized. And blower can be special treatment according to customer special requirement. Also the IE2/IE3 standard blower is available. |
| Q4 | How do you control the product's quality? |
| A4 | All the products have quality testing and dynamic balance before delivery by Our professional QC. |
| Q5 | How long of the loading time? |
| A5 | 5-7 days after order confirmed and receiving of deposit. |
| Q6 | What's the of the blower usage applications? |
| A6 |
The blower can be used either for vacuum or pressure for more than 30 different applications: Such as The Adsorption Dryer, Welding Fume Extraction, Pneumatic Conveying, Biogas Conveying, Sewage Treatment,Aquaculture, Printing Equipment, Slaughtering Equipment, CNC Engraving Machine, hotel SPA pool and Swimming Pool, Electroplating equipment, Central Feeding, Textile industrial, Hospital equipment, Laboratory Testing, Food Package, Air Purification, dust collector, dental suction machine, Airport ground air-conditioning equipment, Oil and Natural gas industrial, etc; |
| Q1 | How long is the blower life? |
| A1 | 3-5 years in normal condition. |
| Q2 | How long is the warranty period for the blower? |
| A2 | 18months free warranty period, and a lifetime maintenance. |
| Q3 | Can the blower be customized? |
| A3 | Normal Blowers are standard parts, but the voltage can be customized. And blower can be special treatment according to customer special requirement. Also the IE2/IE3 standard blower is available. |
| Q4 | How do you control the product's quality? |
| A4 | All the products have quality testing and dynamic balance before delivery by Our professional QC. |
| Q5 |
How long of the loading time? |
| A5 | 5-7 days after order confirmed and receiving of deposit. |
