Home > Products > tunnel drilling rig > huaxia master supply full hydraulic tunnel drilling rig ZDY-750/coal mine geological exploration machine for sale high quality
huaxia master supply full hydraulic tunnel drilling rig ZDY-750/coal mine geological exploration machine for sale high quality
- 100 Set / Sets per Month
- QINGDAO
- T/T L/C
- 30 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia master | Place of Origin: | China | Model Number: | ZDY-750 |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Weight: | 1400kg | Dimension(L*W*H): | 2107*400*615 |
| Power Type: | Electric | Voltage: | 380V/660V | Usage: | Coal |
| Condition: | New | Power(W): | 18.5kw |
Product Description

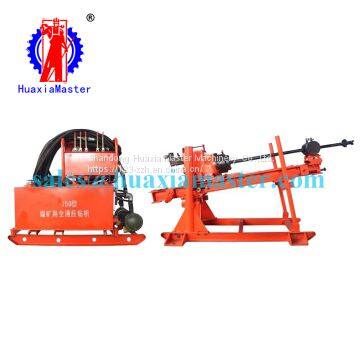

ZDY-750 full hydraulic tunnel drilling rig
1.Brief introductions of ZDY-750 full hydraulic tunnel drilling rig
ZDY-750 full hydraulic tunnel drilling rig mainly consists of pump station, power head, rack, column frame, operation platform and drilling tool. Rig pump station and power head are connected by high pressure pipes with different diameters. All joints are connected by quick connection, which is convenient for installation,withdrawal and transportation. The pump station is driven by an explosion-proof motor to drive the oil pump to convert the electric energy into the rotating oil road and the hydraulic energy (pressure oil) to advance the oil road. Then the pressure oil is transported to the hydraulic actuator through the valve group on the control table, so as to realize the various functions of the drill.
2.Applications of ZDY-750 full hydraulic tunnel drilling rig
ZDY750 full hydraulic tunnel drilling rig for coal mine is mainly used for drilling holes, grouting holes, water injection holes, anti outburst and pressure relief holes, geological exploration holes and other engineering holes. Suitable for rock strength coefficient of F is less than or equal to 10, the various coal seam strata. Drilling rig can drill holes in the range of azimuth and dip angle specified in the basic parameter table.
3.Specifications of ZDY750 full hydraulic tunnel drilling rig
Item | Unit | ZDY-750 |
Drilling depth | m | 150 |
Open hole diameter | mm | Ф65/Ф85/Ф115 |
End hole diameter | mm | Ф65/Ф75 |
Drilling pipe diameter | mm | Ф42/Ф50 |
Drilling angle | º | 0-90 |
Drilling azimuth | º | 0-360 |
Output torque | n.m | 750/300 |
Output rotating speed | r/min | 120/330 |
Working pressure of hydraulic system | mpa | 14 |
Thrust | kn | 50 |
Pulling force | kn | 30 |
Anchorage force | kn | 80*2 |
Advance speed | m/min | 0-1.5 |
Feeding stroke | mm | 850 |
Motor model | YBK2-180M-4 | |
Motor power | kw | 18.5 |
Motor voltage | v | 380/660 |
Tank capacity | l | 90 |
Working medium | Thick 40＃Hydraulic oil | |
Main engine dimension | mm | 2107*440*615 |
Pump station dimension | mm | 1400*700*986 |
Weight | kg | 1400 |
