ZDY-1250 Full Hydraulic Tunnel Drilling Rig From Huaxia Master Underground Tunnel Drill Rig Coal Mine Drill Bits for Sale

Shandong Huaxia Master Machinery Co.,Ltd.
ZDY-1250 Full Hydraulic Tunnel Drilling Rig From Huaxia Master Underground Tunnel Drill Rig Coal Mine Drill Bits for Sale thumbnail-1
ZDY-1250 Full Hydraulic Tunnel Drilling Rig From Huaxia Master Underground Tunnel Drill Rig Coal Mine Drill Bits for Sale thumbnail-2
ZDY-1250 Full Hydraulic Tunnel Drilling Rig From Huaxia Master Underground Tunnel Drill Rig Coal Mine Drill Bits for Sale photo-1
ZDY-1250 Full Hydraulic Tunnel Drilling Rig From Huaxia Master Underground Tunnel Drill Rig Coal Mine Drill Bits for Sale photo-2
US$ 13000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
ZDY-1250
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia master
Place of Origin China
Model Number ZDY-1250
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 months
Weight 1820kg
Dimension(L*W*H) 2240*1000*1478 mm
Power Type Electric
Voltage 380V/660V
Usage Coal
Condition New
Power(W) 65kw

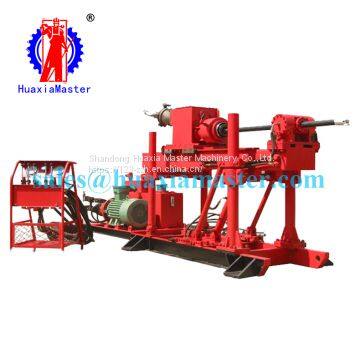

ZDY-1250 full hydraulic tunnel drilling rig

1.Brief introductions of ZDY-1250 full hydraulic tunnel drilling rig

ZDY-1250 hydraulic tunnel drilling rig is used for coal mine: Z stands for drilling rig; D stands for tunnel; Y stands for hydraulic driven, and 1250 is the maximum output torque of 1250n. m.
2.Applications of ZDY-1250 full hydraulic tunnel drilling rig

ZDY1250 tunnel drilling rig is mainly used for drilling holes of gas pumping (row), grouting hole, water injection hole, anti process and pressure relief hole, geological exploration hole and other engineering drilling holes. Drilling rig can drill holes in the range of azimuth and dip angle specified in the basic parameter table.

3.Specifications of ZDY-1250 full hydraulic tunnel drilling rig

Project

Unit

ZDY-1250

Maximum drilling depth

m

200

Open hole diameter

mm

Ф87/Ф115

End hole diameter

mm

Ф65/Ф75

Drilling pipe diameter

mm

50

Drilling angle

°

-90-+90

Rated output rotating speed

r/min

80/170

Rated output torque

n.m

1250/600

Rated power

kw

22

Rated voltage

v

380/660

Rated current

a

42.5/24.5

Feeding force

kn

60

Pullout force

kn

45

Anchorage force

kn

4*45

Rated advance speed

m/min

0-1.5

Feed stroke

mm

850

Hardness range (protodyakonov scale of hardness)


f≤10

Noise

db(a)

≤92

Main engine dimension (long*width*high)

mm

2240*1000*1478

Total weight (without drill rod)

kg

1820


Product Tags: full hydraulic tunnel drilling rig , mine coal hydraulic drilling
