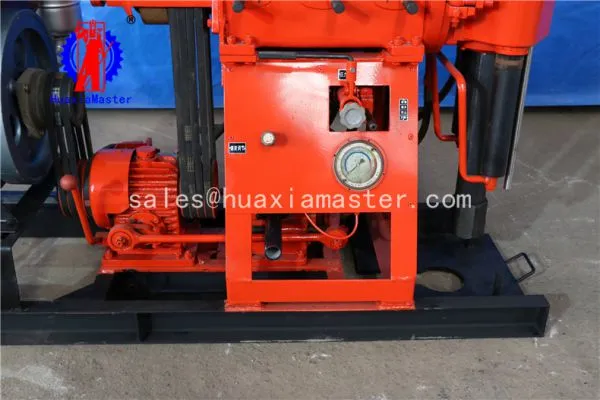

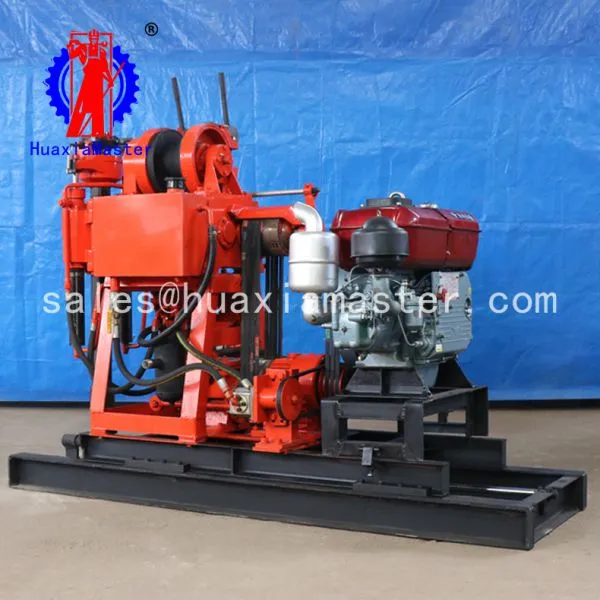

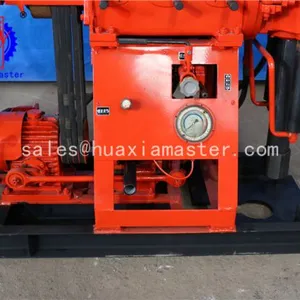

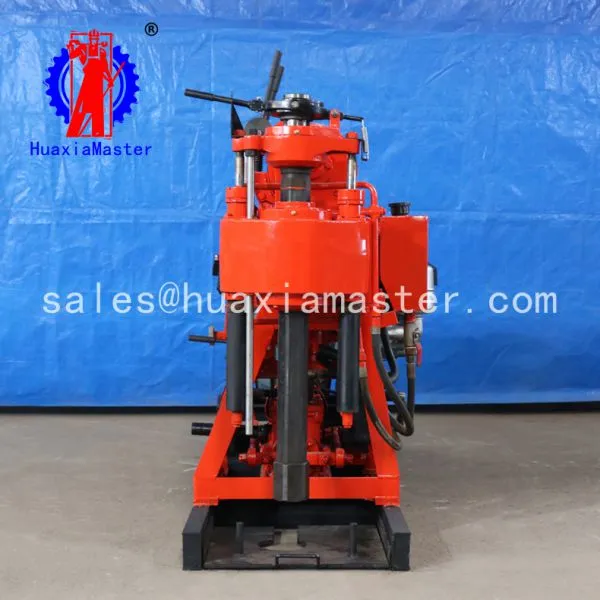

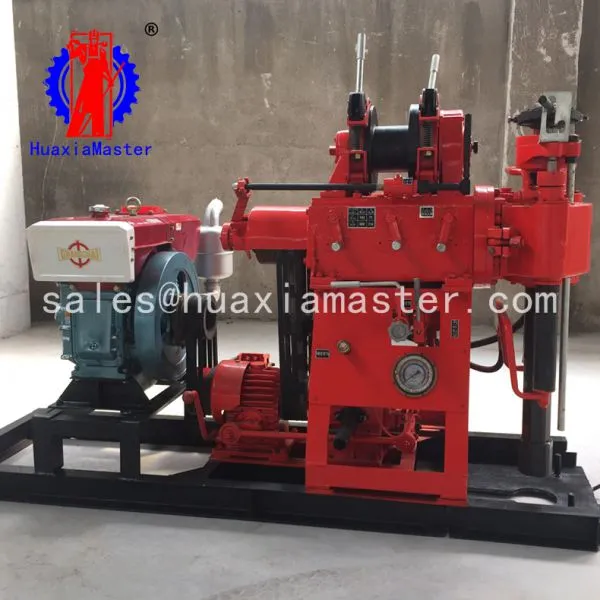

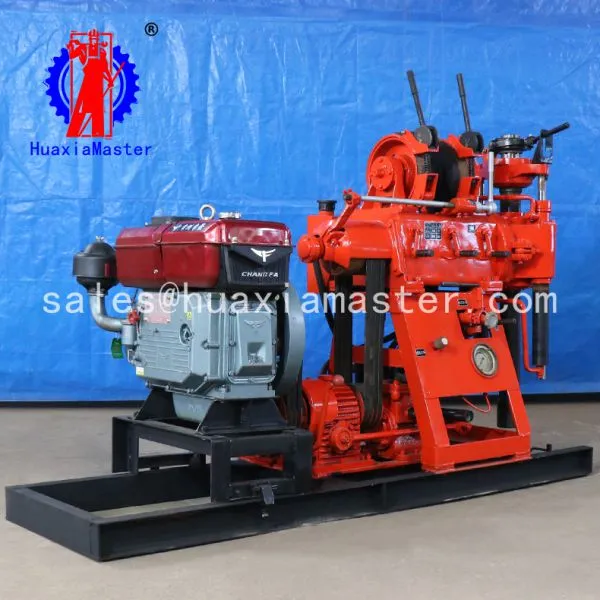

XY-180 hydraulic water well drilling rig
1. Applications of XY-180 hydraulic water well drilling rig
The XY-180 water well drilling rig is designed on the basis of the XY-1A water well drilling rig. It is a low speed and high torque water well drilling rig with oil pressure.
This drilling rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.
1. Parameters of XY-180 hydraulic water well drilling rig
Drilling depth（m） |
180/150/120/90/70/30 |
Borehole diameter（mm） |
75/91/110/130/150/300 |
Maximum opening diameter（mm） |
375 |
Drill pipe diameter（mm） |
42/50 |
Spindle speed (r/min) |
71/142/310/620 |
Spindle stroke（mm） |
450 |
Upgrading ability (KN) |
15 |
Diameter of steel wire（mm） |
12 |
Type |
gear pump |
Model |
YBC-12/80 |
Rated pressure (MPa) |
8 |
Rated speed (r/m) |
1500 |
Displacement（ml/r） |
8 |
Power supply |
ZS1115 diesel engine and 15kw motor |
