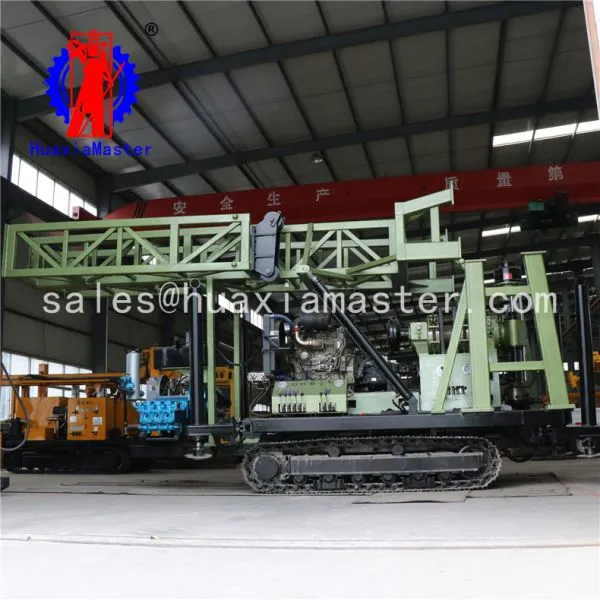

XYD-44A Crawler Hydraulic Water Well Drilling Rig/walking Drill Rig photo-2

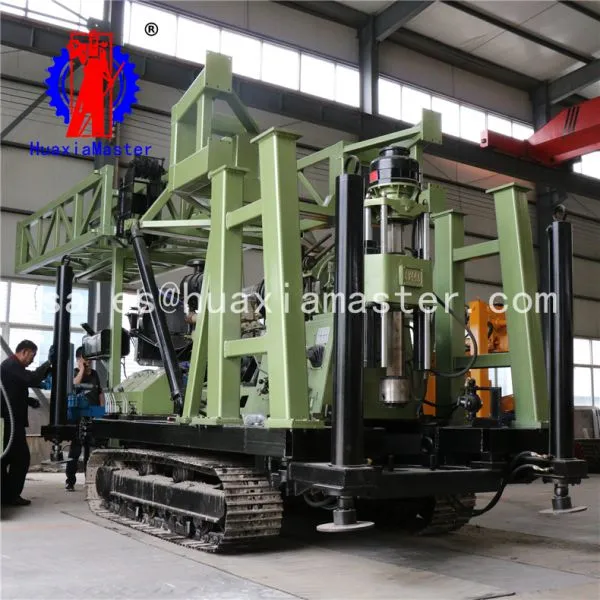

XYD-44A Crawler Hydraulic Water Well Drilling Rig/walking Drill Rig photo-3

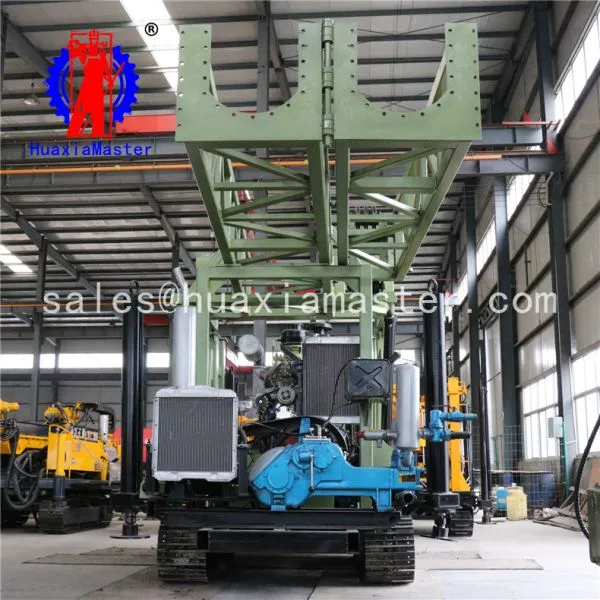

XYD-44A Crawler Hydraulic Water Well Drilling Rig/walking Drill Rig photo-4

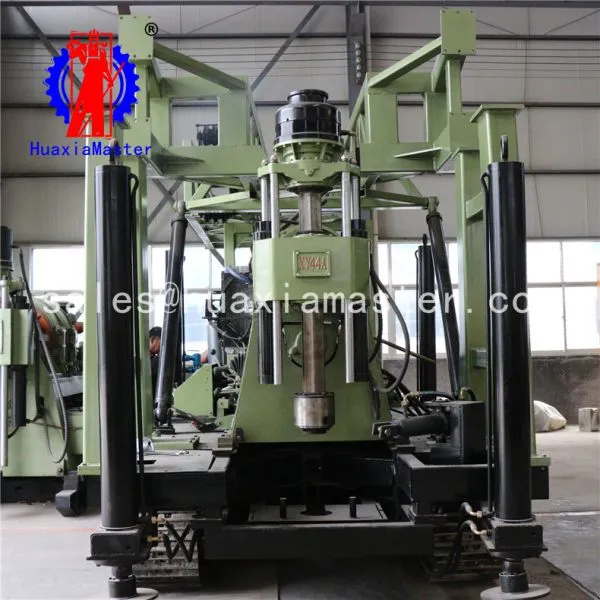

XYD-44A Crawler Hydraulic Water Well Drilling Rig/walking Drill Rig photo-5
US$ 34000 - 35000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxiamaster
Place of Origin:
China
Model Number:
XYD-44A
Contact Supplier Request Quote Chat Now
Shandong Huaxia Machinery Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxiamaster
Place of Origin China
Model Number XYD-44A
After-sales Service Provided No overseas service provided

XYD-44A crawler hydraulic water well drilling rig

1. Characteristics of XYD-44A crawler hydraulic water well drilling rig

XYD-44A crawler water well drilling rig is a multi-purpose spindle well drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster well drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2. Applications of XYD-44A crawler hydraulic water well drilling rig

· water well drilling rig ,

· engineering well drilling ,

· hydrology and water well drilling

· large diameter foundation piles construction

3.Parameters of XYD-44A crawler hydraulic water well drilling rig

XYD-44A crawler hydraulic water well drilling rig

Drilling depth

600-1400m

Max open hole caliber

300mm

End hole caliber

75mm

Drilling rod diameter

60mm

Drilling angle

90-65

Drill rig moving stroke

450mm

Spindle



Spindle speed ( Diesel Engine)

Forward 60 97 169 187 276 301

284 487 521 847 1180 1490r/min

Reverse 65 201r/min



Spindle speed ( Electric Motor)

Forward 50 81 141 155 230 251

320 406 434 706 984 1247r/min

Reverse 54 167r/min

Spindle stroke

600mm

Spindle max. pressure force

90kn

Spindle inner diameter

96mm

Lifting capacity

120kn

Main hoist

Max.single line lifting capacity

45kn

Max.single line lifting speed

0-45m/s

Wire rope caliber

17.5-18.5mm

Hoist capacity of wire line

90-110m

Roller diameter

140mm

Wirerope diameter

6mm

Wire rope length

450m

Mud pump

Type

BW-250

Displacement

250 l/min

Work pressure

80kg/cm²

Water inlet pipe diameter

75 mm

Water outlet pipe diameter

50 mm

Power

Diesel engine

YC4E135-1  81KW

Electric motor

Y225S-4   37KW








Product Tags: crawler water well drilling rig , crawler hydraulic water well drilling rig , walking drilling rig
